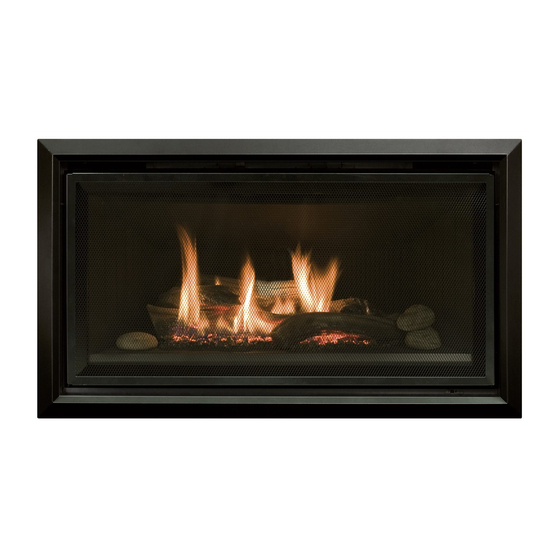

Rinnai Symmetry RDV3611 Operation Manual

Symmetry rdv3611
Hide thumbs Also See for Symmetry RDV3611:

Advertisement

Table of Contents

See also: Installation Manual
Operation guide
Symmetry RDV3611

Advertisement

Table of Contents
loading

Related Manuals for Rinnai Symmetry RDV3611

Summary of Contents for Rinnai Symmetry RDV3611

  • Page 1 Operation guide Symmetry RDV3611...
  • Page 2 Important: The Symmetry RDV3611 is recommended for a new build installation into a false (mock) chimney. It is not suitable for retrofitting into an existing masonry fireplace. Appliance must be: Installed with a Rinnai supplied flue system. Installed, commissioned and serviced by a licensed tradesperson in accordance with these instructions and all applicable local rules and regulations.

  • Page 3: Table Of Contents

    Introduction Safety Clearances General information Wireless controller Operation of your RDV3611 Modes of operation Programming your controller Operation using the controller Operation without the controller Troubleshooting Abnormal flame pattern Maintenance and servicing Commissioning Limited Warranty...

  • Page 4: Introduction

    Introduction Blending style with innovation Symmetry RDV3611 By installing a Rinnai Symmetry RDV3611 you can be confident that you are choosing an incredibly efficient and safe heating source for your home. 19-33 MJ/h consumption (low to high) Output 3.8-7.5 kW 7.5 kW heat...

  • Page 5: Safety

    Safety Important This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or WARNING instruction concerning use of the appliance by a person responsible for their safety. The heater must not be used if the glass or panels are damaged Do not place articles on or against this appliance Do not use or store flammable materials near this appliance...

  • Page 6: Clearances

    Clearances The appliance must not be installed where curtains or other combustible materials could come into contact with the heater. In some case curtains may need restraining. The clearances listed below are minimum clearances unless otherwise stated. Due to the number of different sized Symmetry frames, all dimensions are taken from the To ceiling...

  • Page 7: General Information

    General information Before operation please read these instructions to get an overview of how to operate, maintain and service your Rinnai gas fire. Cladding and finishes TV installation above the If the supply cord is damaged, it fireplace must be replaced by a licensed The Symmetry RDV3611 comes in tradesperson.

  • Page 8: Wireless Controller

    Wireless controller Your wireless controller is designed to be wall mounted on a bracket, supplied with the controller, within 10 m of the fire. How it operates Handy tips The controller houses the Always turn the appliance thermostat that senses the room on and off with the wireless temperature and communicates controller.
  • Page 9 Transmit indicator Indicates the wireless controller is transmitting to the receiver. The symbol will appear for in the LCD for one second. Battery indicator Symbol will flash when batteries need replacing. The wireless controller will remain functional Temperature display for approximately five days before Displays the current room shutting off.

  • Page 10: Operation Of Your Rdv3611

    Operation of your RDV3611 Your controller has a built-in child lock function that requires pressing two buttons simultaneously. This function cannot be overridden. To turn the controller on, press PWR and OK at the same time. Pressing PWR will switch the controller off. Start-up On start-up, the fan will start When turning the RDV3611 on,...

  • Page 11: Modes Of Operation

    Modes of operation Automatic Flame control Manual Temperature can be set at any Temperature is regulated to a Allows you to set your preferred level. programmed level and time. flame setting and override the set temperature—your heater will not automatically turn itself off (unless Time and day of week does Time and day of week needs the room exceeds 40 °C).

  • Page 12: Programming Your Controller

    Programming your controller The clock must be set before the programmed timers will operate. Each day of the week can be programmed for four periods, making a total of 28 programmed periods. Setting the clock Setting the day of the week DEFAULT SETTINGS 1.

  • Page 13: Operation Using The Controller

    Only perform if the wireless temperatures fall below 7 °C. controller is not synchronised (Symmetry RDV3611 will not operate when any of the functions Changing between modes are selected on the controller). To change between manual,...

  • Page 14: Operation Without The Controller

    ON/OFF button twice after gas supply resumes. In the event of a power failure the Symmetry RDV3611 will turn off and will need to be manually turned on again when power is restored. This is a safety feature.

  • Page 15: Troubleshooting

    Small soot deposit on logs Normal operation No action required. Severe soot deposits forming Inadequate flue system, Contact a Rinnai Service Centre. on logs or glass incorrect gas pressure or log misalignment Condensation on glass Normal operation Allow heater to warm up and condensation will disappear.

  • Page 16: Abnormal Flame Pattern

    Abnormal flame pattern Each Rinnai Flame Fire has a distinct flame pattern. This should look the same every time you start your fire, after an initial warm up period of approximately 20 minutes. Abnormal flame performance and/ or pattern can indicate a problem...

  • Page 17: Maintenance And Servicing

    If your appliance needs detergent, clean the inside of maintenance/servicing, please call the glass. Rinnai (0800 746 624) from a land line and select option one for a 5. Check the glass seal service centre in your area. The glass seal is critical to the safe and effective performance of the appliance.

  • Page 18: Commissioning

    Checklist F Appliance positioned in a suitable location (clearances etc.). F Rinnai flue system installed and tested to ensure effective draw. F Gas pressure checked and set. F Burn media installed as per instructions.

  • Page 19: Limited Warranty

    Limited Warranty Rinnai brings you peace of mind with a: 2 Year minimum warranty Terms and conditions instructions, or has been subjected to All Rinnai appliances meet or exceed the 1. During the 24 month period from date damage or abuse beyond that expected...
  • Page 20 For more information call: Consumers: 0800 RINNAI (0800 746 624) Rinnai.co.nz Experience our innovation Installers: 0800 TO RINNAI (0800 86 746 624)
