Headrest Cover (Canopy)

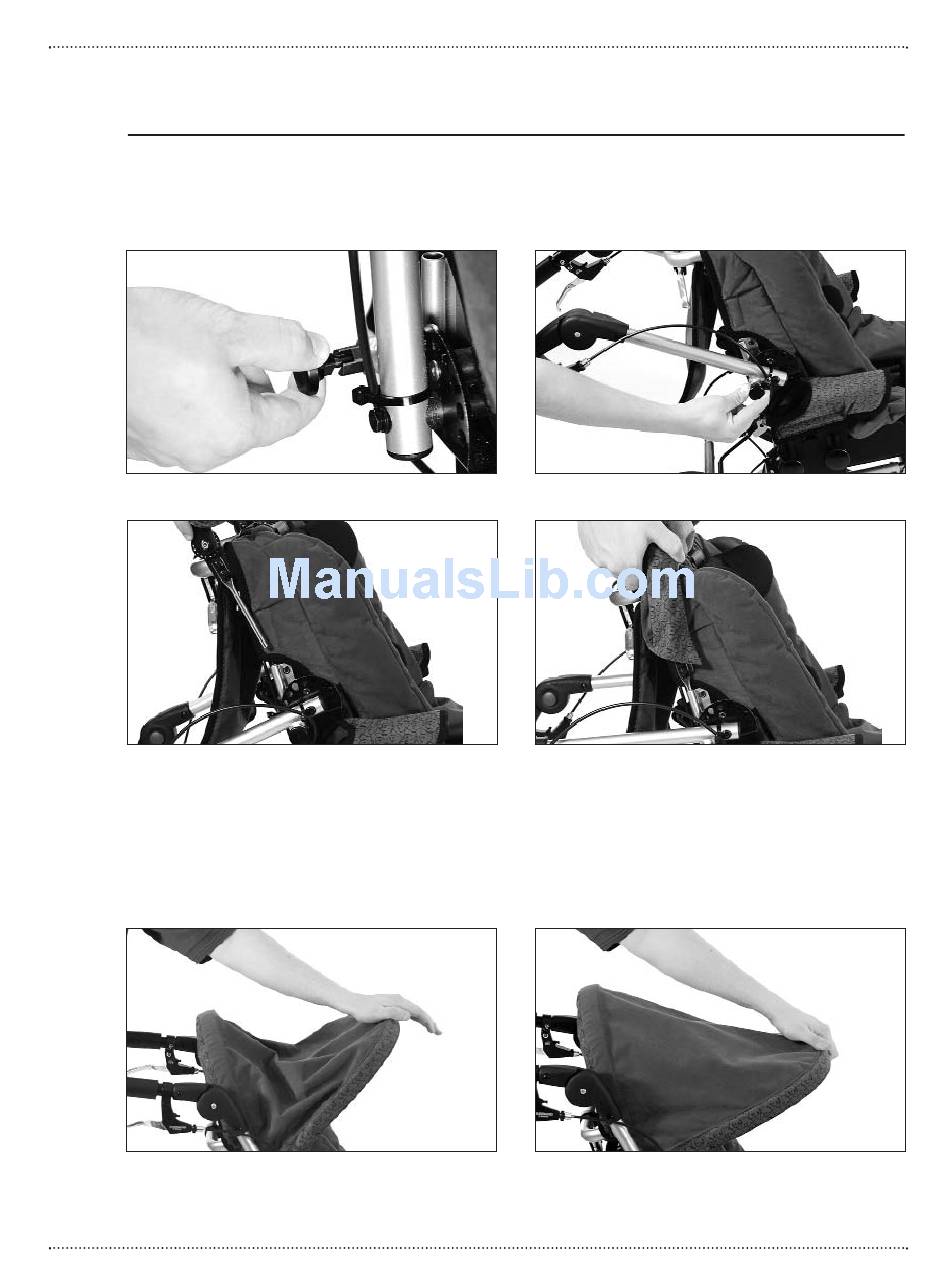

To attach canopy, rotate push handle down Fig. 54 & Fig. 55, then insert canopy
rod into socket tubes located on the sides of the back pan and rotate handle to
desired position. Fig. 56 & Fig. 57
Fig.54
Fig.56
Opening and closing the canopy:
To open: grasp and push away from you. Fig. 58
To close: grasp and pull toward you. Fig. 59
Fig.58
Fig.55
Fig.57
Fig.59
ACCESSORIES
20
