CONVAID USER'S GUIDE

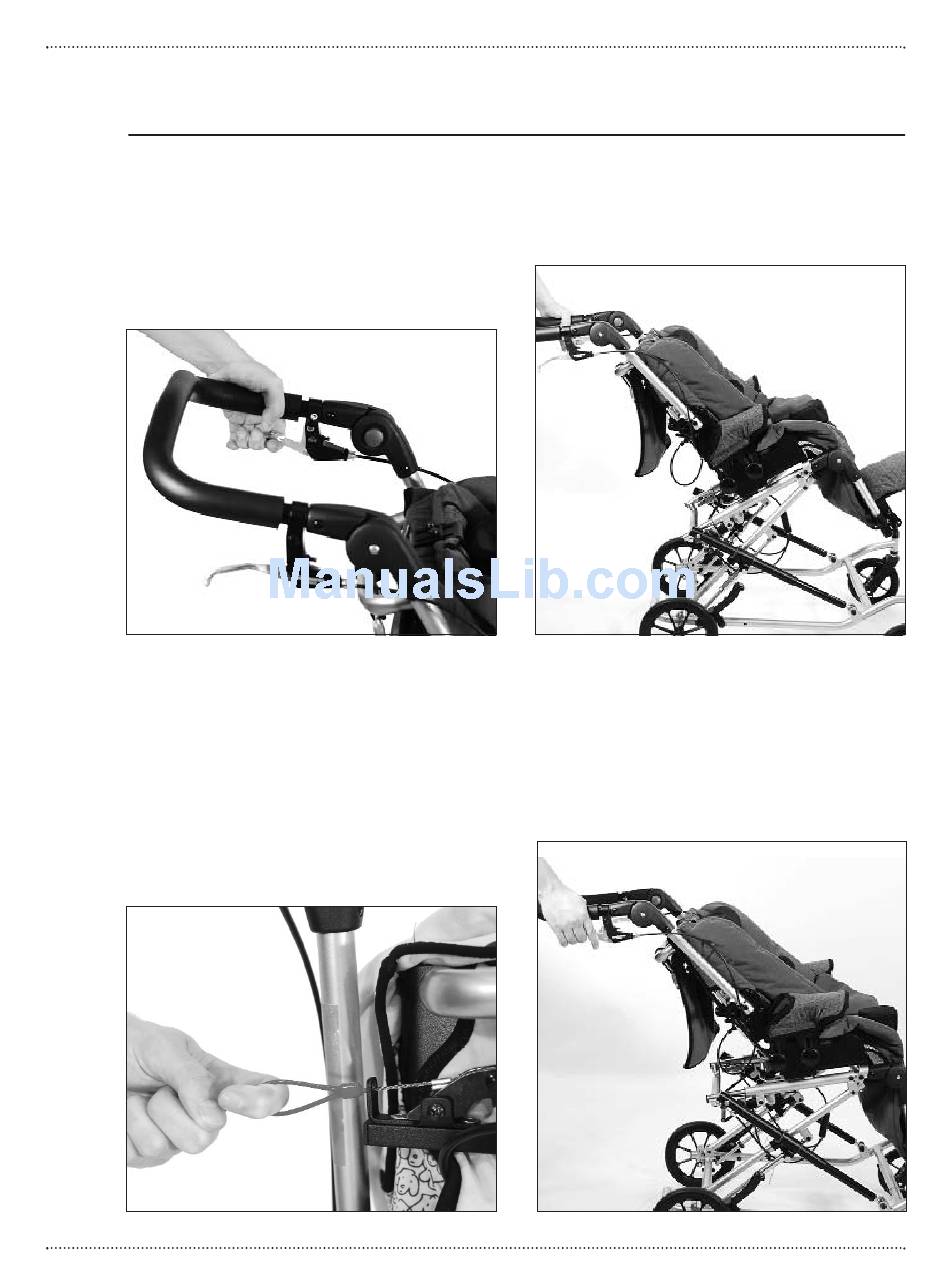

Frame Positioning Options
Tilt:
To tilt, squeeze the lever on the left side of the chair's handle and push down.
Fig. 44 Release the lever when desired angle of tilt has been achieved. Fig. 45
Fig.44

Recline:

Squeeze the lever on the right side of the chair's handle and recline to desired
position. Fig. 46 To recline past 115-degrees, grasp the red loop with your left
index finger and pull to the furthest left. Fig. 47 While holding the red loop,
squeeze the recline lever and recline to desired position.
Fig.46
17
Fig.45
Fig.47
