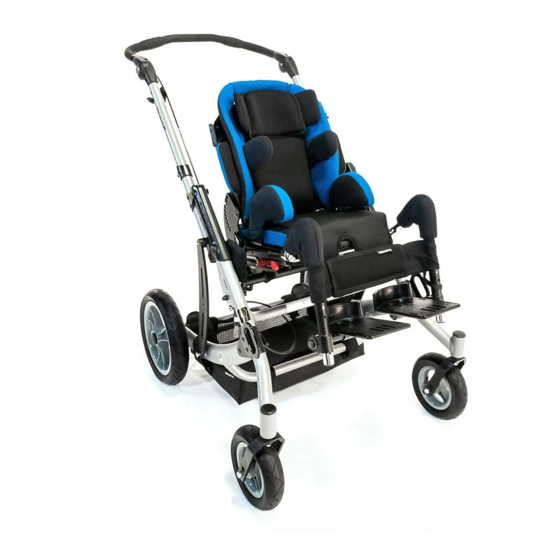

Convaid trekker Troubleshooting Manual
Hide thumbs
Also See for trekker:
- User manual (48 pages) ,
- User manual (75 pages) ,
- Instructions manual (13 pages)
Related Manuals for Convaid trekker
Summary of Contents for Convaid trekker
- Page 1 Trekker™ Troubleshoot Guide...
- Page 2 Trouble Shooting Guide Problem Probable cause Part Location Solution Reference Guide Plug the cable end into the Tilt Adjustment Adjustment Barrel. Make Tilt Adjustment Lever Cable out of position Lever Cable out sure cable end is fully Slide 3 Cable of position seated inside Adjustment Barrel.
- Page 3 Check Tilt Adjustment Lever Correct 1. Plug the cable end into the adjustment barrel. 2. Make sure the chrome cable end is fully seated inside adjustment barrel. Cable on the tilt adjustment lever be pulled loose or Tilt cable end out of position dislodged during transport and/or initial assembly.
- Page 4 Check Tilt Adjustment Lever Correct 1. Plug the cable end into the adjustment barrel. 2. Make sure the chrome cable end is fully seated inside adjustment barrel. Upper Propeller Tilt cable out of not aligned at 90° Upper Propeller at 90° position alignment Cable on the seating system can be pulled loose or...
- Page 5 Trekker Upper Propeller (Under Seat) CORRECT INCORECT Gap is required for propeller to fully retract. No Gap IMPORTANT NOTE: GAP is REQUIRED in order for propeller to fully retract. If it doesn’t, please follow the barrel adjustment steps that follow:...
- Page 6 Barrel Adjustment Steps Step 2: Step 1: Adjust Barrel Adjuster Loosen locking Nut Until Desired Cable Slack...
- Page 7 Barrel Adjustment Steps Step 3: After Desired Cable Slack Achieved Tighten Locking Nut...
- Page 8 Trekker™ Technical Information...
- Page 9 Trekker Seat Back View Components Adjustment barrel Height adjustable knobs Tilt Cable Height Adjustable Tilt adjustment lever Solid Back System Tilt Cable tie downs Recline adjustment strap...
- Page 10 Trekker Seat Bottom View Spring Components Adjustment barrel Inner Cable Chrome Cable End Seating Tilt Cable Cable Clamp Upper Propeller Depth Adjustable Depth Adjustable Knobs Knobs Safety Lock Lever Pommel Attachment Knob...
- Page 11 Trekker Front View Anterior Tilt Limit Stop Lever...
- Page 12 888-CONVAID ● www.convaid.com custservice@convaid.com 2830 California Street, Torrance, CA 90503 USA...
