  • Page 1 Rodeo Upgrades Q2 2014...

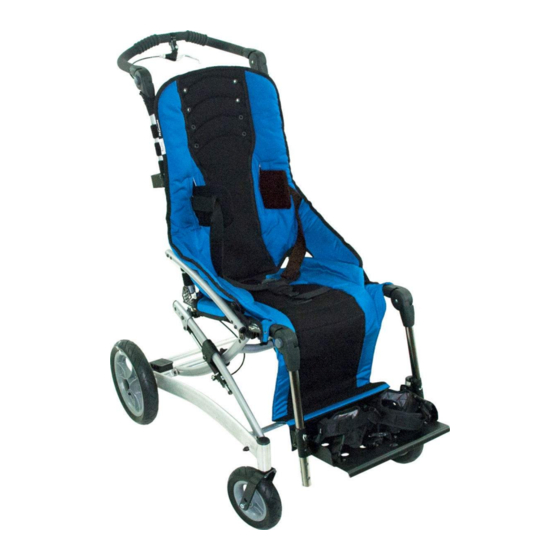

  • Page 2 New Rodeo Convaid is excited to announce new standard features and accessory options on the Rodeo Tilt- in-Space Wheelchair. All new orders received as of June 19 2014 will have all standard upgrades.
  • Page 3 New Rodeo Upgrades New Standard Features New Optional Accessories Lateral Support Sleeve Caster Locks Closure Strap Rear Anti-Tip Tubes Foam Handle Single Bar Brake System Upholstery Side Guard Increased by 1” Seat Depth Growth Adjustment Added Zippers in Seat Upholstery Seat Belt Adjustment...
  • Page 4 Lateral Support Sleeve Standard Feature Old Style New Upgrade...
  • Page 5 Lateral Support Sleeve The new Lateral Support Sleeves have been improved and it is now easier to adjust the lateral support width and height.
  • Page 6 Firm Lateral Trunk Support – Contoured Instructions To Adjust Laterals Release the double sided Velcro support straps on the back of the chair to allow for vertical height adjustment of the lateral trunk support. Loosen the knobs on the lateral mounting bracket to adjust the lateral supports vertically and horizontally.
  • Page 7 Firm Lateral Trunk Support – Contoured Instructions Fold or Swing-Away Lateral Support This firm folding lateral support is great for those with decreased postural control requiring additional support to maintain an upright seated position. Includes Swing-Away Adjustable Mounting Hardware required for installation.
  • Page 8 Closure Strap Standard Feature After: The male end of the buckle is Before: The strap wrapped around located on the back tube and buckles the one piece push handle to directly into the female side located on buckle. the base.
  • Page 9 New Closure Strap Lower Closure Strap Location Upper Closure Strap Location (open) (open)
  • Page 10 Closure Strap – Instructions Folding Chair and using closure strap 1. Apply wheel locks by pushing the wheel lock bar downwards Fig. 1 2. Position chair in full upright position (not tilted or reclined). Fig. 2 3. Push in grey detent buttons on legrest extensions, swing them upward until parallel with the ground.
  • Page 11 Closure Strap The Closure Straps keep the chair securely closed so that it can be picked up when folded.
  • Page 12 Foam Handle Standard Feature Old Style New Upgrade...
  • Page 13 Foam Handle The new foam on the one piece push handle has a better grip, and is more durable.
  • Page 14 New Single Bar Brake System Standard Feature Old Style New Upgrade...
  • Page 15 New Single Bar Brake System The new Single Bar Brake system is easier to operate and will activate both brakes at the same time. It reduces the weight of the chair with 0.68 kg (1.5 lbs).
  • Page 16 New Single Bar Brake Systems Instructions 1. To lock the wheels push the wheel 2. To disengage the wheel lock pull the lock bar downwards. Fig. 1 wheel lock bar upwards with your toe. Fig. 2 WARNING: Never use excessive force. This could damage the quick release plunger pins and the wheels could fall off and cause injury.
  • Page 17 New Seat Depth Growth Standard Feature New Upgrade Old Style One screw to adjust seat depth growth. Multiple washers to adjust seat depth growth...
  • Page 18 New Seat Depth Growth Standard Feature The Rodeo provides years of comfortable use. As the user grows, you can adjust the dimensions on the Rodeo by removing the bolt on the seat – that will adjust the seat depth growth. There’s no need to purchase seat extensions to accommodate growth.
  • Page 19 New Seat Depth Growth Instructions 3. Remove bolt with a 5/32” allen 1. Push the gray detent buttons on 2. Peel off seat upholstery from the mesh wrench. the legrest extensions, swing them seat support. upward until parallel with the ground. 5.

  • Page 20: Side Guard

    Side Guard Standard Feature Old Style New Upgrade...
  • Page 21 Side Guard Standard Feature 1” of material width was added to the back side guard of the upholstery to provide sufficient padding to cover the side curved tubes.
  • Page 22 Added Upholstery Zippers Standard Feature Added Zippers on seat bottom (both sides)
  • Page 23 Added Upholstery Zippers The new added zippers on the seat bottom will allow the user to insert padding for additional comport and support.

  • Page 24: Seat Belt Adjustments

    Seat Belt Adjustments Standard Feature Old Style New Upgrade...
  • Page 25 Seat Belt Adjustments Standard Feature The new Rodeo seat belt adjustment is now easier to adjust and use...
  • Page 26 Seat Belt Adjustments Instructions To adjust seat belt: Rotate Plastic adjuster up to release lock.

  • Page 27: Caster Lock

    Caster Lock New Accessory Option Caster Locks are now an option on the Rodeo. They are designed to lock the swivel wheels in a forward facing position.
  • Page 28 Caster Lock Instructions 1. To engage caster lock, push caster lock down. 2. Push bottom portion of caster lock to disengage.

  • Page 29: Rear Anti-Tip Tubes

    Rear Anti-Tip Tubes New Accessory Option The Rear Anti-Tip Tubes provide additional safety to prevent the chair from tipping backwards when the users weight is unevenly distributed.
  • Page 30 Rear Anti-Tip Tubes New Accessory Option - Instructions Fig. 1 To install the anti-tip tube, align the tube with the end of the round frame tubing located next to the rear wheel. Fig. 1 Push the detent pin while Fig. 2 positioning the anti-tip tube onto the round frame tubing, and push until the “release button”...
