OPERATION

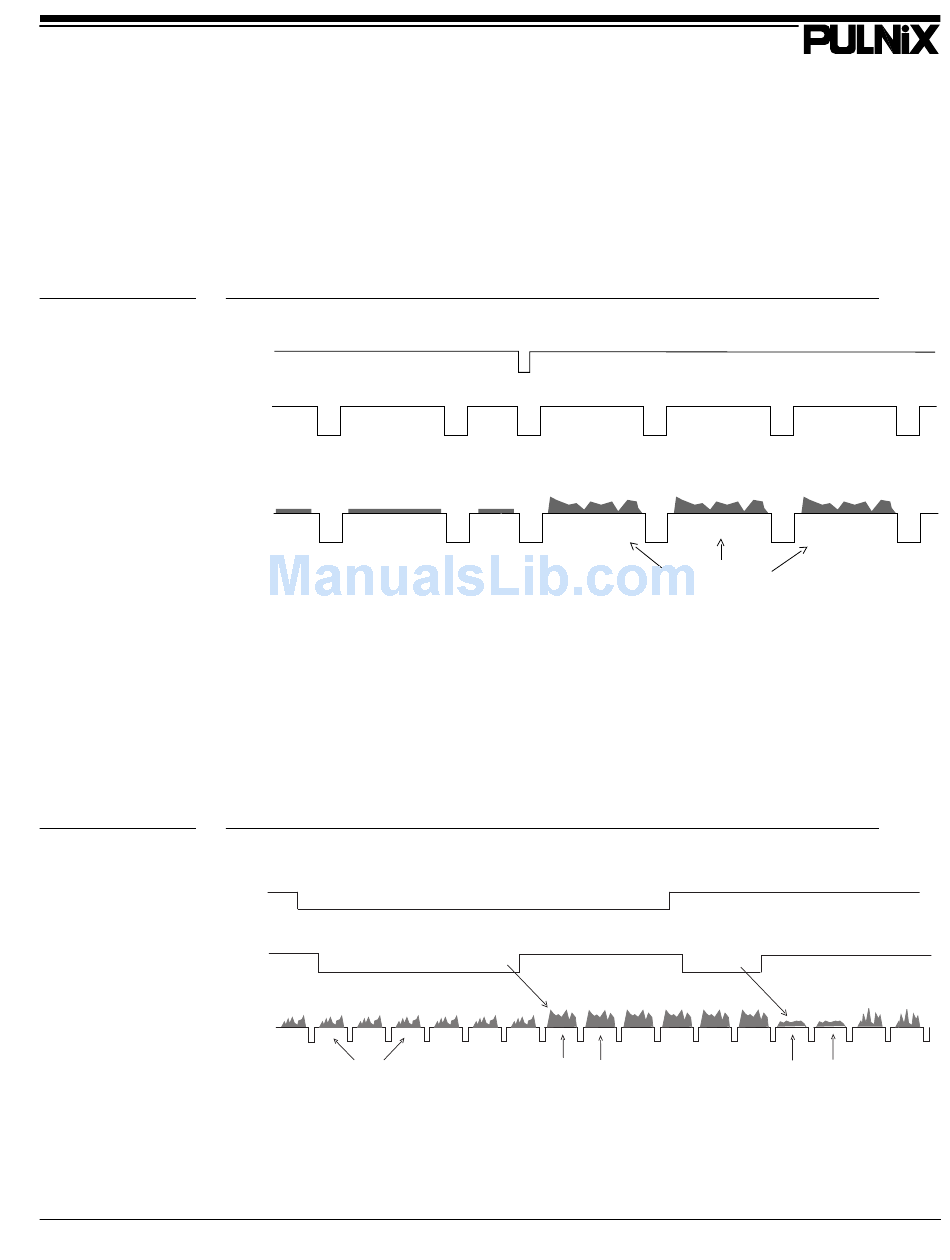

FIGURE 6.
FIGURE 7.
TM-7200/TM-6200 High Resolution Digital CCD Camera

3.1.5 Video Output

3.1.5 (a) Async Reset Image Capture
With built-in memory, an image can be captured when VINIT pulse is applied. The captured image will
be continuously scanned out until the next VINIT pulse occurs.
Async Reset Image Capture
VINIT
VD
NORMAL VIDEO
VIDEO
3.1.5 (b) Built-in Memory for Integration Image Capture
With EN INT high (enable integration, pin #10), set the integration control (pin #11) to low for
integration. Integrated video can be captured once integration control goes back to high. All captured
fields in this case are the same fields.
With the full frame integration option, the TM-7200/TM-6200 provides one full frame (two fields) of
integrated image. This option requires additional frame memory inside the camera.
Integrated Image Capture Timing
EN INT
I
NT CONT
CAPTURED VIDEO
VIDEO
REPEATED FIELD
CAPTURED VIDEO
REPEATED FIELD
CAPTURED INTEGRATED VIDEO
REPEATED FIELD
INTEGRATED
NORMAL
VIDEO
VIDEO
REPEATED FIELD
Page 15
