FIGURE 15.
Page 24

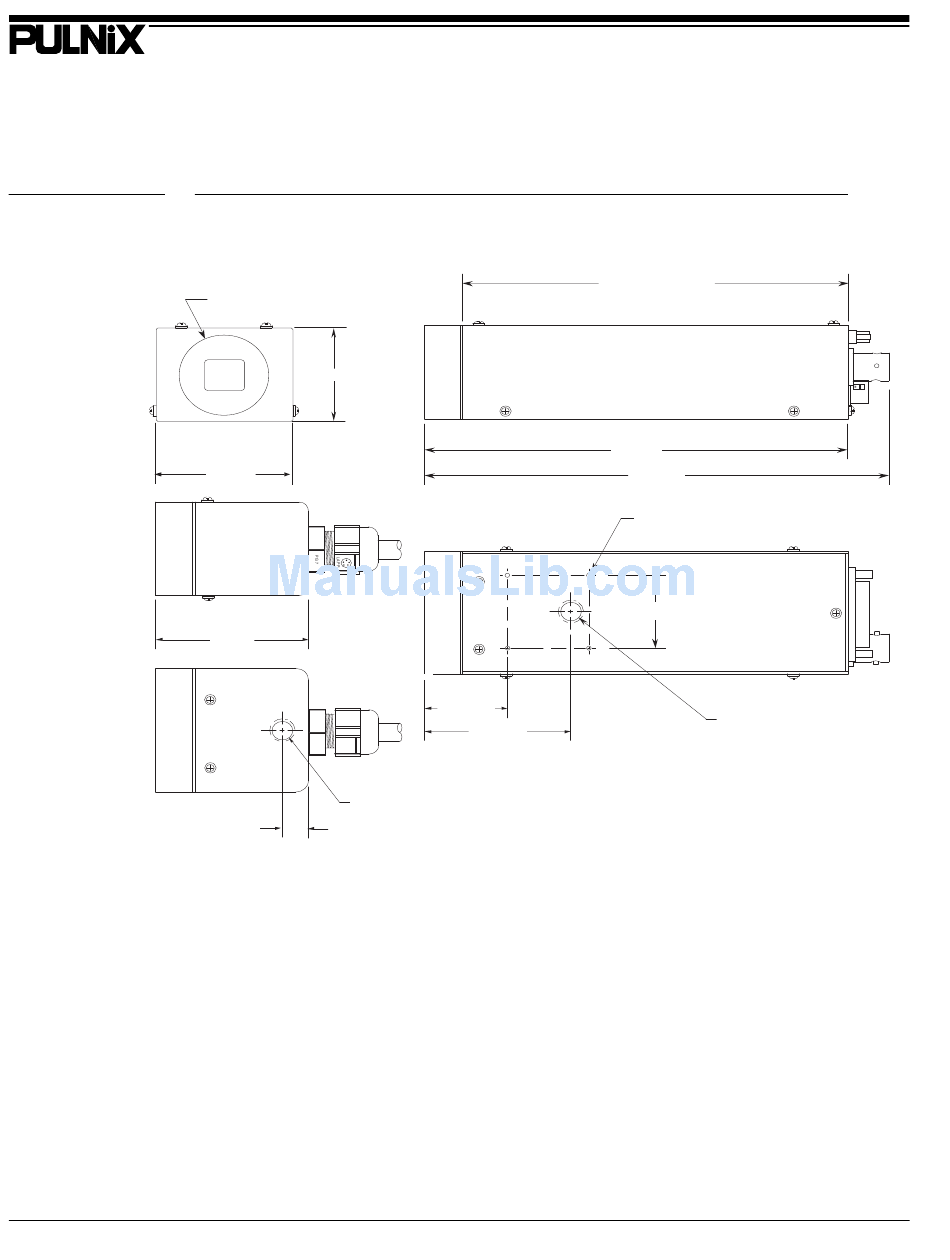

5.1.2 Physical Dimensions
Physical Dimensions
"C" mount
32 mm
42 mm
PULNiX
47 mm
1/4-20 UNC-2B
8 mm
REMOTE HEAD
118 mm (Remote)
PULNiX
130 mm
25.4 mm
44.8 mm
TM-7200/TM-6200 High Resolution Digital CCD Camera
APPENDIX
142.7mm
M2 (4X)
25 mm SQUARE
PATTERN
1/4-20 UNC-2B
