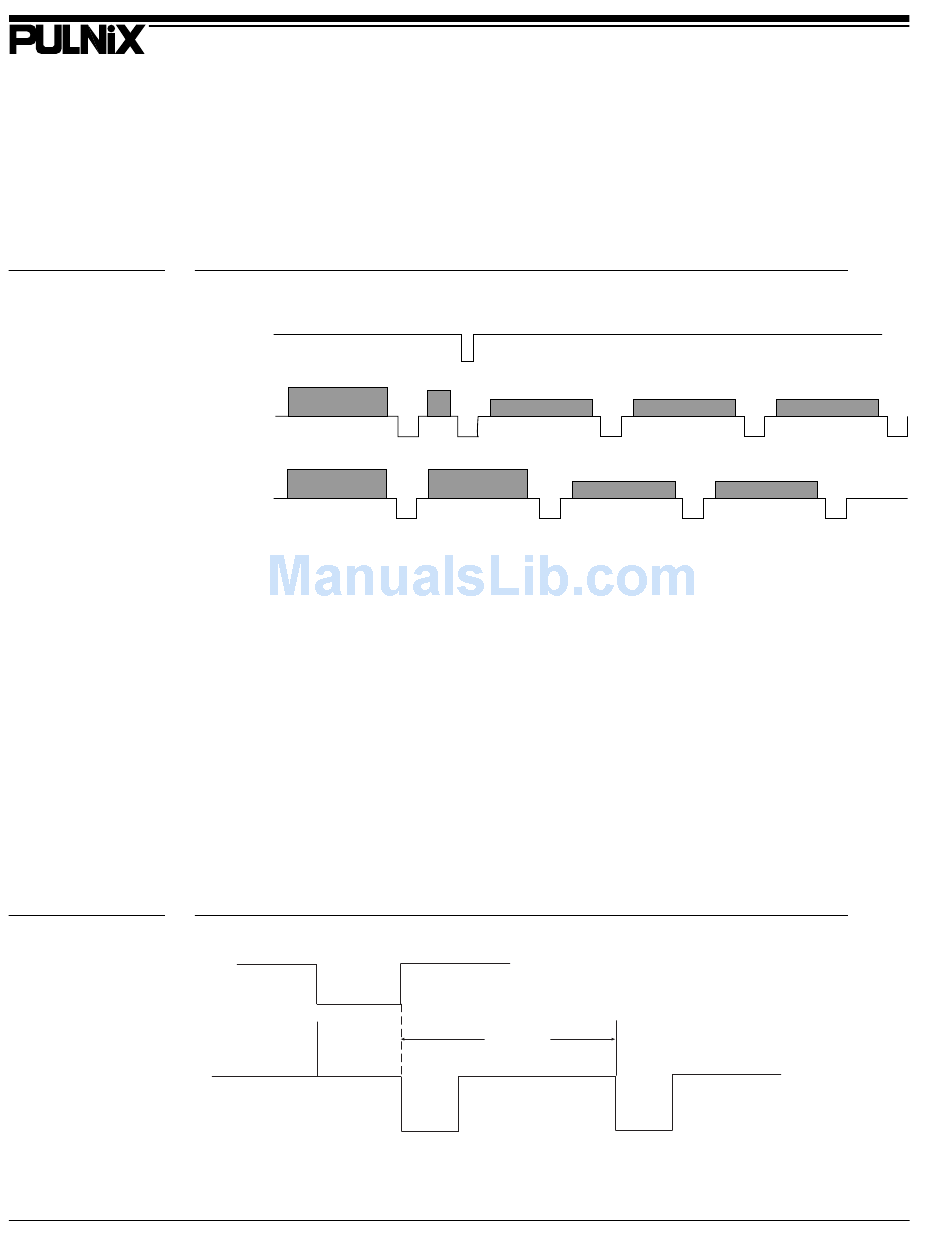

FIGURE 8.
FIGURE 9.
Page 16
3.1.5 (c) Continuous Sync Output Option (OP51) )
When async reset is applied, video sync is also reset asynchronously. This phenomenon causes video
picture rolling or bouncing on the monitor. With this option, a continuous output (no more bouncing or
rolling pictures) will be achieved at async reset.
Continuous Sync Output
ASYNC RESET
A
ASYNC VIDEO OUTPUT
STANDARD
A
CONTINUOUS OUTPUT
A: PREVIOUSLY GRABBED IMAGE

3.1.6 Timing

3.1.6 (a) Digital Video
Differential line-driven, 10-bit parallel signal with EIA-422 format. 100Ω output termination
impedance. Output from 31-pin connector. Mating connector: Airborne MP211-031-113-4300. Please
consult digital cable information, e.g., 50-13-1-01, 30DG-02 (8-bit) or 30DG-02-10 (10-bit), 2m cable.
3.1.6 (b) Line Data Valid
This is differential line-driven signal with EIA-422 format. It is active high (+ side is higher than - side)
during the transfer of each line of data, producting horizontal line readout.
Line Data Valid
HD
LDV
B
A
63.5µSec.
2µSec.
TM-7200/TM-6200 High Resolution Digital CCD Camera
B
B B
B: NEW CAPTURED IMAGE
OPERATION
