2.2 Camera Setup

FIGURE 1.
Page 4

2.2.1 Rear Panel

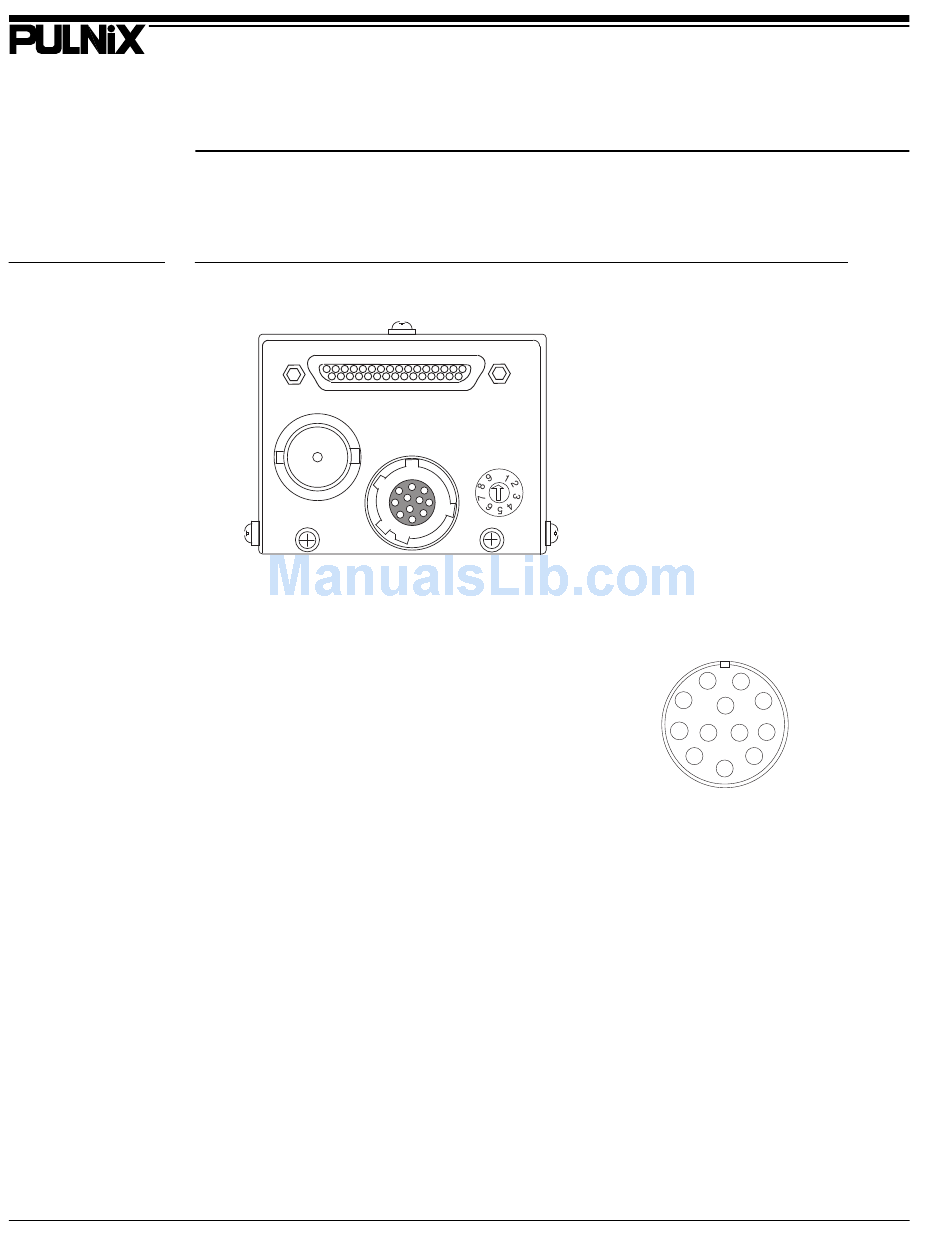

TM-7200/TM-6200 Rear Panel Configuration
DIGITAL
VIDEO
2.2.2 Connector Pin Configurations
2.2.2 (a) 12-Pin Connector
The TM-7200/TM-6200 has a 12-pin connector for power
input.
Pin# Description
1 GND
2 +12V DC
3 GND
4 Video Out
5 GND
6 VINIT
POWER
SHUTTER
0
Pin# Description
7 VD Input
8 GND
9 HD Input
10 GND
11 INT. CONT.
12 GND
TM-7200/TM-6200 High Resolution Digital CCD Camera
INSTALLATION
•
12-pin connector (power)
• 31-pin connector (digital output)
• Video connector
•
Shutter control switch
1 9
2 8
10
3
11
12
4
5
7
6
