2.2 Camera Setup

TM-200 / TM-300 Miniature CCD Camera
2.2.1 Connector Pin Con gurations
2.2.1 (a) 12-Pin Connector
The TM-200 has a 12-pin connector for power input. Generally, Pin #1 is
Ground and Pin #2 is +12V DC. The other pins handle a number of other input
and output functions, which will be discussed further in other sections.
Pin Description
1 GND
2 +12V DC
3 GND
4 Video Out
5 GND
6 N/C

2.2.2 Power Supply and Power Cable Setup

2.2.2 (a) Power Supplies
PULNiX recommends the following power supplies:
K25-12 110V AC/12V DC
P-15-12 220V AC/12V DC
K50-12 110V AC/12V DC
PD-12P 110V AC/12V DC
For users providing power through the 12-pin connector, the PD-12P power supply is available with the
12-pin mating connector already attached to the leads from the power supply. The PD-12 power supply
can be connected to the PULNiX power cable via a terminal strip or directly.
When wiring the PD-12 power supply directly, please note the following:
Twist the lead ends together and tin solder for strength and electrical continuity.
•
Use shrink tubing or a similar insulator to prevent exposed leads from touching.
•
The +12V lead is marked with a red stripe or white lettering; be sure not to reverse the leads.
•
Properly insulate all connections to prevent shorting.
•
2.2.2 (b) PULNiX Power Cables
If you are using PULNiX power cables, such as the 12P-02, KC-10, etc., please refer to the pin-out
diagram. The color coded leads use Grey for Ground and Yellow for +12V DC.
Pin Description
7 VD Input
8 GND
9 HD Input
10 N/C
11 Integration
12 N/C
2.1A power supply
2.1A power supply
4.2A power supply
0.5A power supply

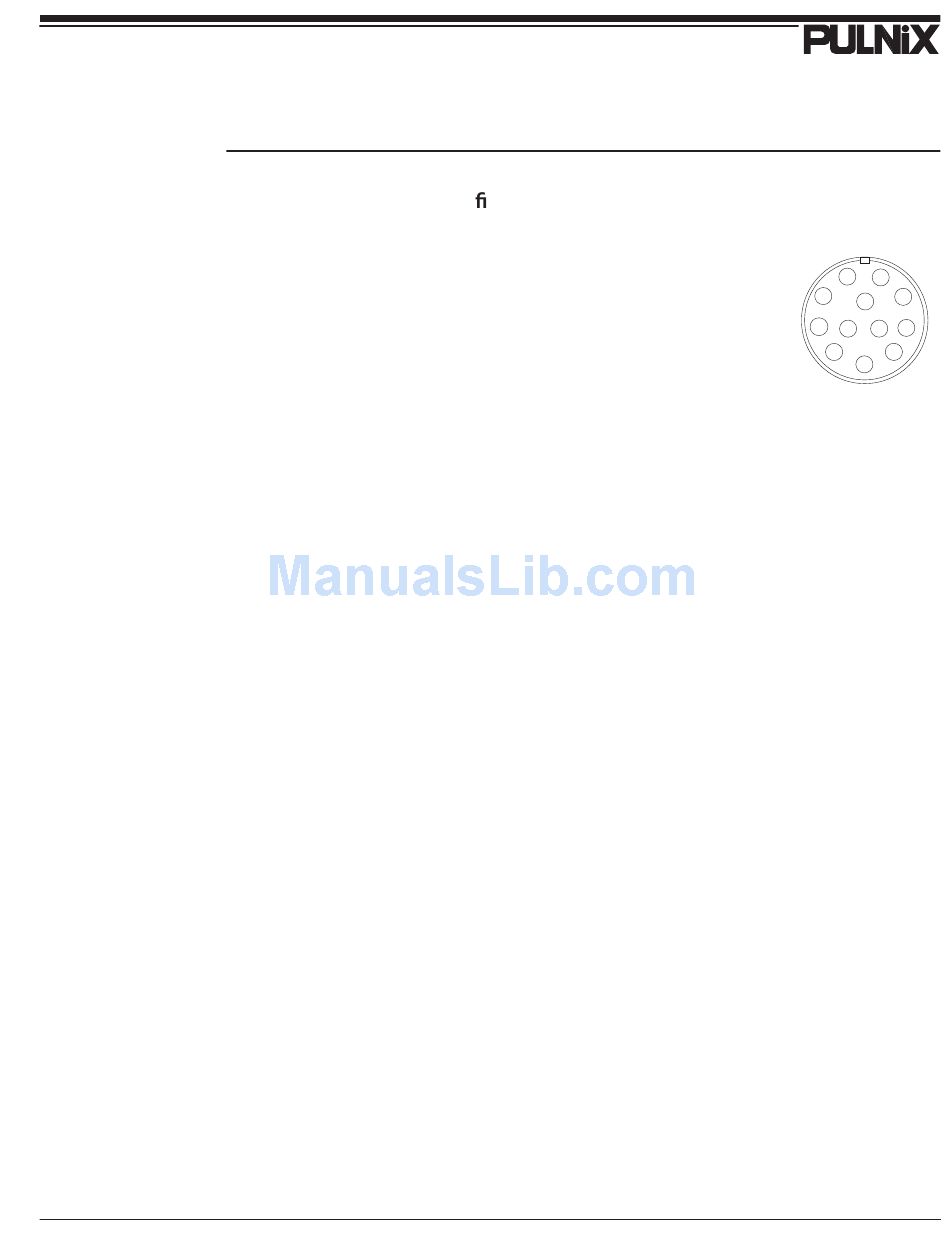

1 9
2 8
10
3 7
11
12
4 6
5
