Outback Excel 100T Assembly And Operating Instructions Manual page 16

15
Excel 100T
Excel 200 and 300 users, skip this step and proceed directly to step 16.
16
Excel 100T
Excel 100 users, skip this step and proceed directly to step 22.

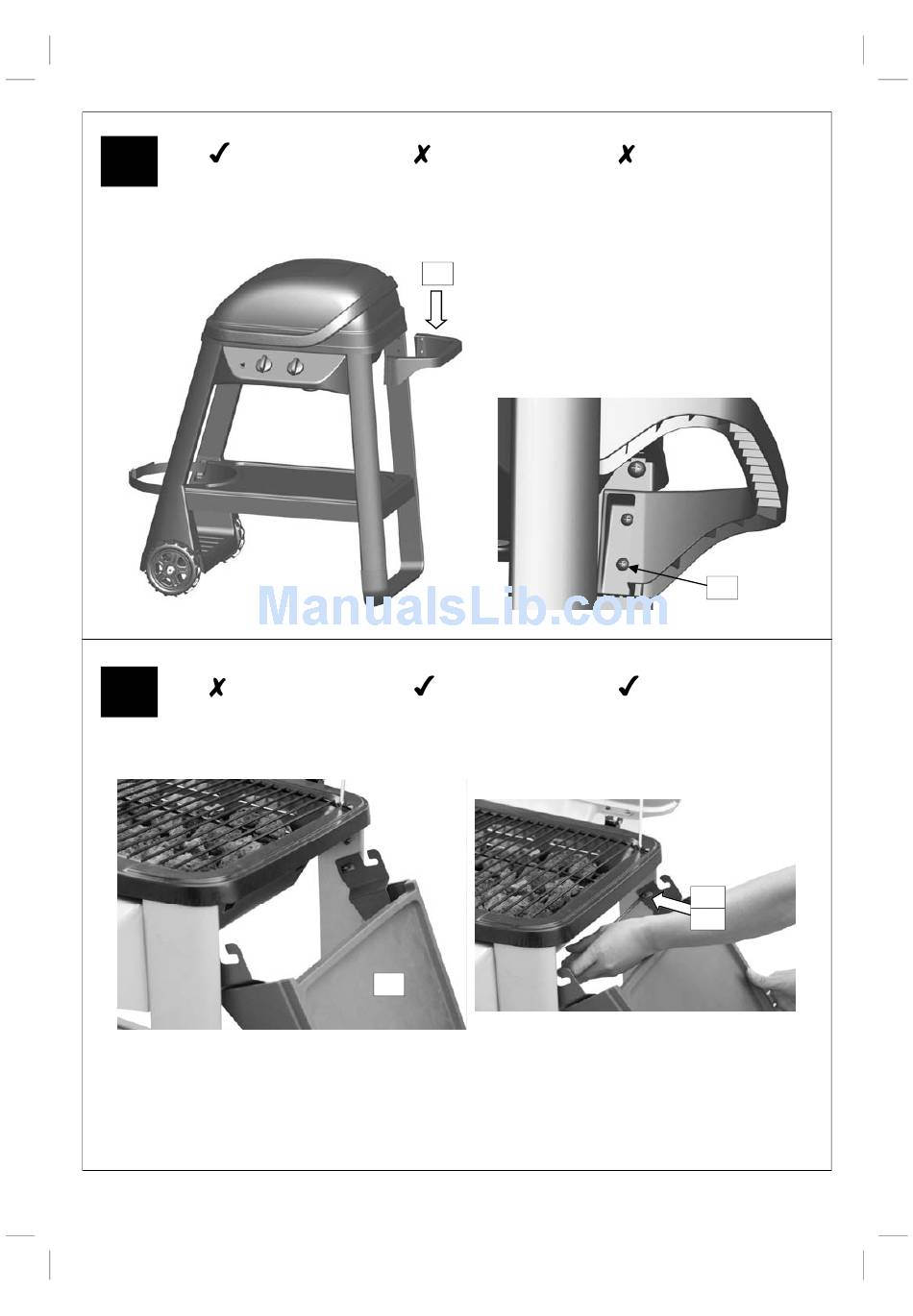

Attach a side shelf (B6) to the right hand side of the barbecue by sliding a shelf spacer (D9)
onto a screw (D1) and fit the shelf to the lower fixing point on the rear leg as shown. Repeat
for the front leg. Slide a shelf spacer (D9) onto a screw (D1) and screw it into the upper fixing
point on the rear legs as shown. Repeat for the front leg.
For Excel 200 only, repeat the above procedure for the left hand side shelf.
Excel 200T
B4
Attach the Trolley Handle (B4) to the
Long Legs using the screws (D1).
Excel 200T
B6
16
Excel 300T
D1
Excel 300T
D1
D9
