Assembly and Operating Instructions for
Excel 100T, Excel 200T, and Excel 300T Gas Barbecues
Excel 100T
Photographs are not to scale.
Specifications subject to change
without prior notice.
•
•
•
•
•
•
•
WARNING
•

FOR YOUR SAFETY

If you smell gas:
1.
Shut off gas to the appliance.
2.
Extinguish any open flame.
3.
Open barbecue lid or hood.
4.
If odour continues, discontinue use and
contact your local dealer.
Gas Barbecues
Excel 200T
For outdoor use only. Not for commercial use.
Read instructions before using the appliance. Failure to follow instructions could
result in death, serious bodily injury, and/or property loss.
Warning: accessible parts may be very hot. Keep young children away.
Do not move the appliance during use.
Turn off the gas supply at the gas bottle after use.
Any modification of the appliance, misuse, or failure to follow the instructions may
be dangerous and will invalidate your warranty. This does not affect your statutory
rights.
Retain these instructions for future reference.
Leak test your barbecue annually. Check the hose connections are tight and leak
test them each time you reconnect the gas bottle.
1.
2.

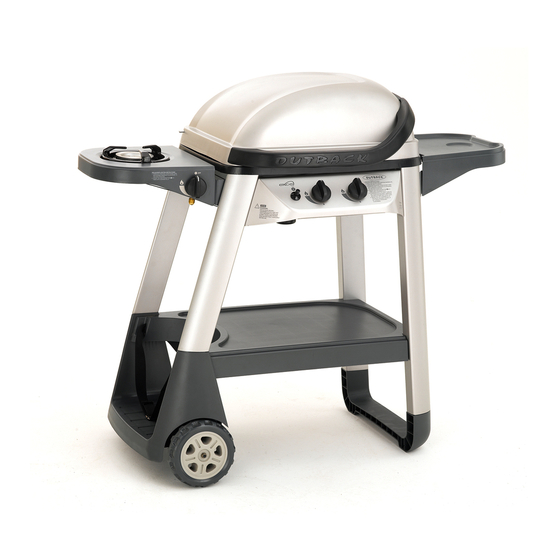

Excel 300T
FOR YOUR SAFETY
Do not store or use petrol or other flammable
vapours or liquids in the vicinity of this or any
other appliance.
A gas bottle not connected for use shall not be
stored in the vicinity of this or any other
appliance.
0359

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Excel 100T and is the answer not in the manual?

Questions and answers

Related Manuals for Outback Excel 100T

Summary of Contents for Outback Excel 100T

  • Page 1: For Your Safety

    Gas Barbecues Assembly and Operating Instructions for Excel 100T, Excel 200T, and Excel 300T Gas Barbecues Excel 100T Excel 200T Excel 300T Photographs are not to scale. Specifications subject to change 0359 without prior notice. • For outdoor use only. Not for commercial use.

  • Page 2: Table Of Contents

    A. Parts List Quantities vary according to model purchased. Specifications subject to change without prior notice. For more details on hardware, please see the corresponding Hardware Reference Diagram for your barbecue model. OUTBACK® EXCEL RANGE CODE PART EXCEL 100T EXCEL 200T EXEL 300T √...
  • Page 3 B1. Parts Diagram: Excel 100T Quantities vary according to model purchased. Specifications subject to change without prior notice. For more details on hardware, please see ‘Hardware Reference Diagram: Excel 100.’ Pre-assembled body unit includes following individual parts: A5 A10 A11 A15...
  • Page 4 B2. Hardware Reference Diagram: Excel 100T Specifications subject to change without prior notice.
  • Page 5 C1. Parts Diagram: Excel 200T Quantities vary according to model purchased. Specifications subject to change without prior notice. For more details on hardware, please see ‘Hardware Reference Diagram: Excel 200.’ Pre-assembled body unit includes following individual parts: A5 A10 A11 A15...
  • Page 6 C2. Hardware Reference Diagram: Excel 200T Specifications subject to change without prior notice.
  • Page 7 D1. Parts Diagram: Excel 300T Quantities vary according to model purchased. Specifications subject to change without prior notice. For more details on hardware, please see ‘Hardware Reference Diagram: Excel 300.’ Pre-assembled body unit includes following individual parts: A5 A10 A11 A15...
  • Page 8 D2. Hardware Reference Diagram: Excel 300T Specifications subject to change without prior notice.
  • Page 9 Please lay out all nuts and bolts and check lengths before assembling. Whilst every care is taken during the manufacture of this product, care must be taken during the assembly in case sharp edges are present. Excel 100T Excel 200T Excel 300T...
  • Page 10 Excel 100T Excel 200T Excel 300T Attach the Bottom Shelf (C9) to the Gas Bottle Holder (C3) using the screws (D5). Taking care not to over tighten. Excel 100T Excel 200T Excel 300T Attach the leg assembly to the Bottom...
  • Page 11 Excel 100T Excel 200T Excel 300T Insert the axle (C5) through the clamping brackets underneath the Gas Cylinder Holder (C3) and tighten the clamping screws. Taking care not to Slide a wheel (C4) and secure it with over tighten. a M8 Locknut (D6). Repeat for the other side before standing it up.
  • Page 12 Excel 100T Excel 200T Excel 300T Attach the Hood Lower Handle (A3) to the Hood (A4) using the Screws (D2). Excel 100T Excel 200T Excel 300T Attach the body (A5) to the Trolley Assembly by sliding the fixing brackets inside the tops of the legs and securing...
  • Page 13 Excel 100T Excel 200T Excel 300T Attach the Control Panel Assembly to the Trolley Assembly using the Screws (D1). Excel 100T Excel 200T Excel 300T Feed the Grease Cup Holder (A6) through Insert the Grease Cup (A7) into the Grease the hole in the Body (A5).
  • Page 14 Excel 100T Excel 200T Excel 300T Remove the lower nut from the main electrode (A12) and insert the electrode with the gas collector box into the hole in the bottom of the body. The open face of the gas collector box must face towards the back of the barbecue body. Secure with the nut removed earlier.

  • Page 15: Lava Rock Rack

    Excel 100T Excel 200T Excel 300T Attach the Heat Shield (A13) to the Body (A5) using the Screws (D2) and nuts (D7). Excel 100T Excel 200T Excel 300T Place the Lava Rock Rack (A1) and Lava Rock (A9) into the body of the barbecue followed by the Cooking Grill (A8).
  • Page 16 Excel 100T Excel 200T Excel 300T Excel 200 and 300 users, skip this step and proceed directly to step 16. Attach the Trolley Handle (B4) to the Long Legs using the screws (D1). Excel 100T Excel 200T Excel 300T Excel 100 users, skip this step and proceed directly to step 22.

  • Page 17: Burner

    Excel 100T Excel 200T Excel 300T Excel 200 users, skip this step and proceed directly to step 22. Attach the Side Burner Shelf (B9) to the Short Legs using the Screws (D1). Excel 100T Excel 200T Excel 300T Remove the screws from Side Burner Valve/Hose Assembly (B12) and secure it to the side shelf with those 2 screws;...
  • Page 18 Excel 100T Excel 200T Excel 300T Once the hose is connected,, check to ensure that it is not in contact with the barbecue body or Body Heat Shield (A13). Loosen off the hose clip which Rotate the hose anti-clockwise Re-tighten the hose clip to secure...
  • Page 19 Excel 100T Excel 200T Excel 300T Connect the electrode wire Igniter Place the Side Burner Grid (B8) onto Button (B2) under the the side burner shelf. control panel. Main burner Side burner electrode electrode wire wire goes here. goes here.

  • Page 20: Hood

    Bottle Size directly underneath the barbecue. • Outback® 3.9kg LP gas cylinders must not be stored or used Excel 100T in the horizontal position. A leak would be very serious and liquid could enter the gas Outback® 3.9kg Excel 200T line.
  • Page 21 damage and ensure it is securely attached with rapidly several times until left portion of the worm drive clips or swaged fittings. Ensure no burner is lit. If burner fails to ignite, turn part of the flexible hose is touching any hot control knob to the off position and turn gas barbecue parts.
  • Page 22 OVERHEAT. Avoid lifting hood available from you local Outback® stockist. unnecessarily as heat is lost each time the hood is opened. Even when your barbecue is covered for its protection, it must be inspected on a regular I8.

  • Page 23: Grease Cup

    Replacement lava The gas bottle must be always be disconnected rock is available from your local Outback® from the barbecue and stored in a well stockist.

  • Page 24: Side Burner

    Side 0359 2.3kW 0.74mm Burner 359BS791 Gas Consumption: Excel 100T: 446g/hr Excel 200T: 446g/hr Excel 300T: 446g/hr Side Burner: 165g/hr Countries of Use: BE, CY, CZ, EE, FR, GR, IE, IT, LV, LT, LU, PT, SK, ES, 3+ (28-30/37) CH, GB, RO...
  • Page 25 L. Troubleshooting Problem Possible Cause Solution Burners will not light using LP gas bottle is empty Replace with full bottle the ignition system Faulty regulator Have regulator checked or replaced Obstructions in burners Clean burners Obstructions in gas jets or gas hose Clean jets and gas hose Electrode wire is loose or disconnected Reconnect wire...
  • Page 26 OUTBACK barbecues are warranted to the original purchaser against defects in materials and workmanship for a period of one (1) year from the date of purchase. OUTBACK UK will, within this period, supply replacements for defective parts free of charge provided that: ♦...
