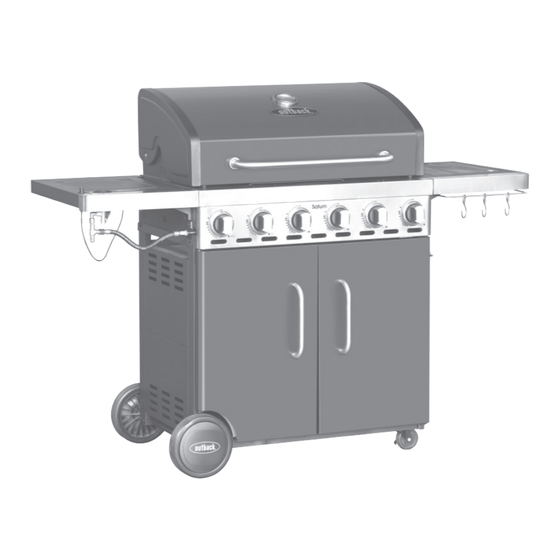

Assembly and Operating Instructions for Outback
Saturn Pro 4 Burner Gas BBQ and Saturn Pro 6 Burner Gas BBQ
MF4493H
Photographs are not to scale.
Specifications subject to change
without prior notice.
WARNING
FOR YOUR SAFETY
If you smell gas:
1. Shut off gas to the appliance.
2. Extinguish any open flame.
3. Open barbecue lid or hood.
4. If odour continues, discontinue use and contact
your local dealer.
For outdoor use only. Not for commercial use.
Read instructions before using the appliance. Failure to follow instructions could
result in death, serious bodily injury, and/or property loss.
Warning: accessible parts may be very hot. Keep young children and pets away.
Do not move the appliance during use.
Turn off the gas supply at the gas bottle after use.
Any modification of the appliance, misuse, or failure to follow the instructions
may be dangerous and will invalidate your warranty. This does not affect your
statutory rights.
Retain these instructions for future reference.
Leak test annually, and whenever the gas bottle is removed or replaced. Check
that the hose connections are tight and leak test each time you reconnect the
gas bottle.
For Flare-up control please refer to the 'OPERATION' section of this manual.
MF5693H
FOR YOUR SAFETY
1. Do not store or use petrol or other flammable
vapours or liquids in the vicinity of this or any
other appliance.
2. A gas bottle not connected for use shall not be
stored in the vicinity of this or any other
appliance.
®
2575
0359

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Saturn Pro MF4493H and is the answer not in the manual?

Questions and answers

Related Manuals for Outback Saturn Pro MF4493H

Summary of Contents for Outback Saturn Pro MF4493H

  • Page 1 ® Assembly and Operating Instructions for Outback Saturn Pro 4 Burner Gas BBQ and Saturn Pro 6 Burner Gas BBQ MF4493H MF5693H Photographs are not to scale. Specifications subject to change 2575 0359 without prior notice.  For outdoor use only. Not for commercial use.

  • Page 2: Parts List

    Parts List Quantity varies according to model purchased. Specifications subject to change without prior notice. For more details on hardware, please see the corresponding ‗Hardware Reference Diagram‘. Saturn Pro 4 Saturn Pro 6 CODE PART Burner Burner Hood (Pre-Assembled to Body) ...
  • Page 3 Parts Diagram: Saturn Pro 4 Burner Quantity varies according to model purchased. Specifications subject to change without prior notice. For more details on hardware, please see the corresponding ‗Hardware Reference Diagram‘.
  • Page 4 Parts Diagram: Saturn Pro 6 Burner Quantity varies according to model purchased. Specifications subject to change without prior notice. For more details on hardware, please see the corresponding ‗Hardware Reference Diagram‘.
  • Page 5 Hardware Reference Diagram Specifications subject to change without prior notice. M6X15 BOLT 25PCS...
  • Page 6 Assembly IMPORTANT! TOOLS NEEDED FOR ASSEMBLY: Medium size flat blade or Phillips/Crosspoint screwdriver,  adjustable spanner or metric spanner set. Remove any internal component or packaging from the barbecue body.  Whilst every care is taken in the manufacture of this product, care must be taken during assembly in ...
  • Page 7 Attach the Upper Support (C12) to the left/right cabinet panel using M6x15 Bolts (D3x4pcs). Attach the Utility Bin Brackets (C19x2pcs) onto the Middle Panel (C18) using M6x15 Bolts (D3x4pcs), and then attach the middle panel assembly to the cabinet assembly using M6x15 Bolts (D3x5pcs) as shown.
  • Page 8 Carefully turn the cabinet upside-down. Unscrew the Locknuts (D6x2pcs) from both ends of the Axle (C24). Slide the axle through the corresponding holes in the . Slide a Wheel (C23) over each end of the left cabinet panel axle. Secure the wheels into place with the locknuts. Place the Wheel Hubcaps (C22) onto the outside of the wheels.
  • Page 9 Carefully place the Barbecue Body (B1) onto the cabinet assembly and fix it using M6x15 Bolts (D3x4pcs) as shown. Remove the retaining bolts from one Door Handle (C13), and then attach the door handle onto the Left Door (C14) using the retaining bolts as shown. Repeat above process to install the other door handle onto the Right Door (C15).
  • Page 10 Fit the doors to the cabinet by depressing the spring pins and placing into the cabinet. Attach Side Shelf Panel (C4) and Tool Hook Assembly (C5) onto Side Shelf (C3) using M6x15 Bolts (D3x2pcs) and M6 Nut (D4x2pcs) as shown.
  • Page 11 step1 step2 step3 step4 Attach the side shelf assembly to the barbecue body using a ST4.0x10 Screw (D2) and M6x15 Bolts (D3x4pcs) as shown. Attach Side Burner Shelf Panel (C2) onto Side Burner Shelf (C1) using M6x15 Bolts (D3x2pcs) and M6 Nut (D4x2pcs) as shown.
  • Page 12 step1 step2 step4 step3 Attach the side burner shelf assembly to the barbecue body using a ST4.0x10 Screw (D2) and M6x15 Bolts (D3x4pcs) as shown. Attach the side burner valve onto side burner shelf using M4x10 Bolts (D5x2pcs) as shown. Press the Side Burner Knob (C7) onto side burner valve stem.
  • Page 13   Feed the venturi tube of the Side Burner (C9) through the hole in bottom of the side burner shelf, and fix it onto side burner shelf using a M4x10 Bolt (D5) as shown. Make sure that the end of venturi tube is set over the gas outlet of side burner valve.
  • Page 14 Place the Side Burner Grid (C6) onto the side Insert the Drip Tray (B9) by sliding it underneath burner shelf. the barbecue body. NOTE: Make sure the base of cooking utensil to put on the side burner is larger than 150mm and smaller than 240mm. Saturn Pro 6 Burner Saturn Pro 4 Burner Lay the Flame Tamers (B6) carefully into the body ensuring it lies level within the body.
  • Page 15 Attach the Utility Bins (C20x2pcs) by placing them on the brackets as shown. Lay the Centre Shelf (C25) on the brackets inside of cabinet and slide it to the end as shown. Fix the Bottle Opener (B10) to the Right cabinet Attach the Warming Rack (A4) onto the panel using a M6x15 Bolt (D3) as shown.

  • Page 16: Leak Testing

    1. Maximum diameter or breadth is 320mm. 2. Maximum height (regulator included) is 700mm. ASSEMBLY IS NOW COMPLETE. PROCEED TO THE NEXT PAGE FOR INSTRUCTIONS ON OPERATION AND MAINTENANCE ALL JOINTS AND CONNECTIONS MUST NOW BE LEAK TESTED BEFORE USING THE BARBECUE.

  • Page 17: Gas, Regulator And Hose

    Important Information  Leak test annually, and whenever the gas bottle is removed or replaced. Please read these instructions carefully  Do not store flammable materials near this before assembly and use of your barbecue. barbecue.  Do not use aerosols near this barbecue. ...

  • Page 18: Operation

    on a safe and even surface. Never place your and should be expected.) barbecue below ground level. Take care to ensure that it is not placed UNDER any Line the drip tray with aluminium foil, then combustible surface. The sides of the barbecue place a uniform layer of clean, dry sand 6-8mm should NEVER be closer than 1 metre from any deep into the tray.
  • Page 19 Avoid lifting the hood unnecessarily as heat is  To light the side burner, place the lit end of a lost every time the hood is opened. If the hood long match alongside the side burner. Push is opened during cooking please allow extra and turn the side burner knob anti-clockwise time for the barbecue to regain its temperature to the high position, taking care to protect...

  • Page 20: Care And Maintenance

    reduced if very fatty foods or cheap meat Even when your barbecue is covered for its products are being cooked. Failure to do this protection, it must be inspected on a regular may result in a fat fire, which may cause injury basis as damp or condensation can form which and could seriously damage the barbecue.
  • Page 21 and severely damage the barbecue. This is not cool dry place. a fault in the barbecue and is therefore not covered by the terms of the warranty. If Cover the burners with aluminium foil in order to required, the tray can be washed in hot soapy prevent insects or other debris from collecting in water.

  • Page 22: Technical Specifications

    Technical Specifications Note: Heat Injector Burners Input Size Consumption ® Outback Butane: 943g/hr Saturn Pro 4 12.96kW 0.89mm Propane: 926g/hr Burner Gas BBQ ® Outback Butane: 1258g/hr Saturn Pro 6 17.28kW 0.84mm Propane: 1235g/hr Burner Gas BBQ Butane: 214g/hr Side Burner 2.94kW...

  • Page 23: Troubleshooting

    Troubleshooting Problem Possible Cause Solution Burner will not light using LP gas bottle is empty Replace with full bottle the ignition system Faulty regulator Have regulator checked or replaced Obstructions in burner Clean burner Obstructions in gas jets or gas hose Clean jets and gas hose Electrode wire is loose is connected on Reconnect wire...
  • Page 24 The product has not sustained damage through foreign objects, substances or accidents.  The care and maintenance instructions given in your Outback manual have been followed.  If the product includes one or a number of parts or accessories, only the defective accessory or part will be replaced i.e.

This manual is also suitable for:

Saturn pro mf5693h

Table of Contents
