Assembly and Operating Instructions for Outback®
Excel 100, Excel 200, and Excel 300 Gas Barbecues

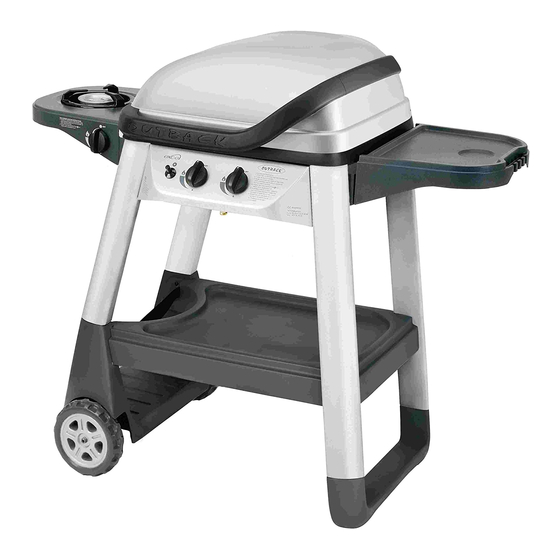

Excel 100
Photographs are not to scale.
Specifications subject to change
without prior notice.
•
For outdoor use only. Not for commercial use.
•
Read instructions before using the appliance. Failure to follow instructions
could result in death, serious bodily injury, and/or property loss.
•
Warning: accessible parts may be very hot. Keep young children and pets
away.
•
Do not move the appliance during use.
•
Turn off the gas supply at the gas bottle after use.
•
Any modification of the appliance, misuse, or failure to follow the instructions
may be dangerous and will invalidate your warranty. This does not affect your
statutory rights.
•
WARNING
Retain these instructions for future reference.
•
Leak test annually, and whenever the gas bottle is removed or replaced. Check
that the hose connections are tight and leak test each time you reconnect the
gas bottle.
•
For Flare-up control please refer to the 'OPERATION' section of this manual.

FOR YOUR SAFETY

If you smell gas:
1.
Shut off gas to the appliance.
2.
Extinguish any open flame.
3.
Open barbecue lid or hood.
4.
If odour continues, discontinue use and
contact your local dealer.
Excel 200
FOR YOUR SAFETY
1.
Do not store or use petrol or other
flammable vapours or liquids in the vicinity
of this or any other appliance.
2.
A gas bottle not connected for use must not
be stored in the vicinity of this or any other
appliance.
Excel 300
0359

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Excel 100 and is the answer not in the manual?

Questions and answers

Related Manuals for Outback Excel 100

Summary of Contents for Outback Excel 100

  • Page 1: For Your Safety

    Assembly and Operating Instructions for Outback® Excel 100, Excel 200, and Excel 300 Gas Barbecues Excel 300 Excel 200 Excel 100 Photographs are not to scale. Specifications subject to change 0359 without prior notice. • For outdoor use only. Not for commercial use.

  • Page 2: Parts List

    Quantity varies according to model purchased. Specifications subject to change without prior notice. For more details on hardware, please see the corresponding ‘Hardware Reference Diagram’. OUTBACK® OUTBACK® OUTBACK® CODE PART EXCEL 100 EXCEL 200 EXCEL 300 √ √ √ Hood (Pre-Assembled to Body) √...
  • Page 3 2.1. Parts Diagram: Excel 100 Quantity varies according to model purchased. Specifications subject to change without prior notice. For more details on hardware, please see the corresponding ‘Hardware Reference Diagram’. Pre-assembled body unit includes following individual parts:...
  • Page 4 2.2. Hardware Reference Diagram: Excel 100 Specifications subject to change without prior notice.
  • Page 5 3.1. Parts Diagram: Excel 200 Quantity varies according to model purchased. Specifications subject to change without prior notice. For more details on hardware, please see the corresponding ‘Hardware Reference Diagram’. Pre-assembled body unit includes following individual parts:...
  • Page 6 3.2. Hardware Reference Diagram: Excel 200 Specifications subject to change without prior notice.
  • Page 7 4.1. Parts Diagram: Excel 300 Quantity varies according to model purchased. Specifications subject to change without prior notice. For more details on hardware, please see the corresponding ‘Hardware Reference Diagram’. Pre-assembled body unit includes following individual parts:...
  • Page 8 4.2. Hardware Reference Diagram: Excel 300 Specifications subject to change without prior notice.
  • Page 9 • case sharp edges are present. • Please read the Important Information section carefully before assembly and use of your barbecue. Excel 100 Excel 200 Excel 300 Attach the Right Front Leg (C14) and Right Rear Leg (C15) to the Leg End Loop (C18).
  • Page 10 Excel 100 Excel 200 Excel 300 Attach the Bottom Shelf (C22) to the Gas Bottle Holder (C17) using ST4.8x15 Screws (D6). Take care not to over tighten these screws which will damage the plastic gas bottle holder. Excel 100 Excel 200...
  • Page 11 Excel 100 Excel 200 Excel 300 Insert the Axle (C21) through the clamping brackets underneath the Gas Bottle Holder (C17) and tighten the clamping screws. Take care Slide the Wheels (C20) over not to over tighten these screws which will damage the plastic gas each end of the axle.
  • Page 12 Excel 100 Excel 200 Excel 300 Attach the Hood Handle (A2) to the Hood (A1) using the M5x10 Bolts (D2). Excel 100 Excel 200 Excel 300 Carefully place the Barbecue Body (B1) onto the tops of the legs. Attach the barbecue body to the trolley assembly using the M6x15 Bolts (D1). Ensure the tabs on the body fit over the legs as shown in the diagram and do not go down inside of the legs.
  • Page 13 Excel 100 Excel 200 Excel 300 Install a M6x15 Bolt (D1) and a Spacer (D9) into the upper fixing hole on each front leg. Place the Control Panel (B3) assembly in position by aligning the spacers with the slot on each side of control panel and fix it to the trolley assembly using M6x15 Bolts (D1).
  • Page 14 Excel 100 Excel 200 Excel 300 Insert the Main Electrode (B10) into the hole at the bottom of the barbecue body and secure with the pre-assembled nut. Excel 100 Excel 200 Excel 300 View from underneath the body. Feed the Burner (B2) into barbecue body.
  • Page 15 Excel 100 Excel 200 Excel 300 Attach the Body Heat Shield (B12) to barbecue body using the M5x10 Bolts (D2) and M5 Nuts (D8). Excel 100 Excel 200 Excel 300 Carefully lay the Lava Rock (B6) into the barbecue body ensuring it lies level within the body.
  • Page 16 Excel 100 Excel 200 Excel 300 Excel 100 users, skip this step and proceed directly to step 24. Attach the Side Shelf Bracket A (C4) and Side Shelf Bracket B (C5) to the Side Shelf (C3) using ST4.0x15 Screws (D5).
  • Page 17 Excel 100 Excel 200 Excel 300 Attach the assembled Side Shelf (C3) to the right hand side of the barbecue by sliding a Shelf Spacer (D9) onto a M6x15 Bolt (D1) and fitting the shelf to the lower fixing point on the rear leg as shown.
  • Page 18 Excel 100 Excel 200 Excel 300 Excel 200 users, skip this step and proceed directly to step 24. Attach the Side Burner Shelf (C8) to the left front and left rear legs using M6x15 Bolts (D1). Excel 100 Excel 200...
  • Page 19 Excel 100 Excel 200 Excel 300 Once the hose is connected, check to ensure that it is not in contact with the barbecue body or Body Heat Shield (B12). Loosen off the hose clip which Rotate the hose anti-clockwise Re-tighten the hose clip to secure...
  • Page 20 Note: there are two fixing holes for the hose tidy: Excel 100 and Excel 200 Users: please fix the hose tidy to the lower hole on the short leg front. Excel 300 Users: please fix the hose tidy to the upper hole on the short leg front.

  • Page 21: Leak Testing

    Retighten all joints • Repeat test • If bubbles form again do not use the barbecue and contact your local Outback • distributor for assistance. Always wipe the mixed solution (½ water and ½ liquid detergent / soap) from all joints...

  • Page 22: Gas, Regulator And Hose

    Use this barbecue only on a stable, flat 6. Important Information surface. Before you use your barbecue, perform a Please read these instructions carefully leak test. This is the only safe and sure way before assembly and use of your barbecue. to detect any gas leaking from joints and connections of the barbecue after assembly.

  • Page 23: Installation

    SAFELY AND EFFICIENTLY. USE OF AN with more than 50% of the cooking area as INCORRECT OR FAULTY REGULATOR IS a solid plate — this includes baking dishes. DANGEROUS AND WILL INVALIDATE ANY Full coverage will cause excessive build-up WARRANTY. Please consult your local gas of heat and damage the barbecue.
  • Page 24 burner porthole. Close the hood to cook the food ‘indirectly’. • Avoid lifting the hood unnecessarily as heat is Push and turn the rightmost control knob lost every time the hood is opened. If the hood anti-clockwise to the high position, taking is opened during cooking please allow extra care to protect yourself from the flames.

  • Page 25: Care And Maintenance

    Outback® stockist. Even when your barbecue is covered for its In the event of a fat fire: If safe to do so, turn all control knobs to the protection, it must be inspected on a regular •...
  • Page 26 Replacement lava rock is When using the barbecue after extended available from your local Outback® stockist. periods storage follow cleaning procedures.

  • Page 27: Technical Specifications

    2.3kW 0.74mm 359BS791 or 37 mbar Propane Burner Gas Consumption: Excel 100: 446g/hr Excel 200: 446g/hr Excel 300: 446g/hr Side Burner: 165g/hr Countries of Use: BE, CY, CZ, EE, FR, GR, IE, IT, LV, LT, LU, PT, SK, ES, 3+ (28-30/37)

  • Page 28: Troubleshooting

    12. Troubleshooting Problem Possible Cause Solution LP gas bottle is empty Replace with full bottle Burner will not light using the ignition system Faulty regulator Have regulator checked or replaced Obstructions in burner Clean burner Obstructions in gas jets or gas hose Clean jets and gas hose Electrode or ignition button wire is Reconnect wire...
  • Page 29 OUTBACK barbecues are warranted to the original purchaser against defects in materials and workmanship for a period of one (1) year from the date of purchase. OUTBACK will, within this period, supply replacements for defective parts free of charge provided that: The product has not been used for trade, professional or hire purposes.
