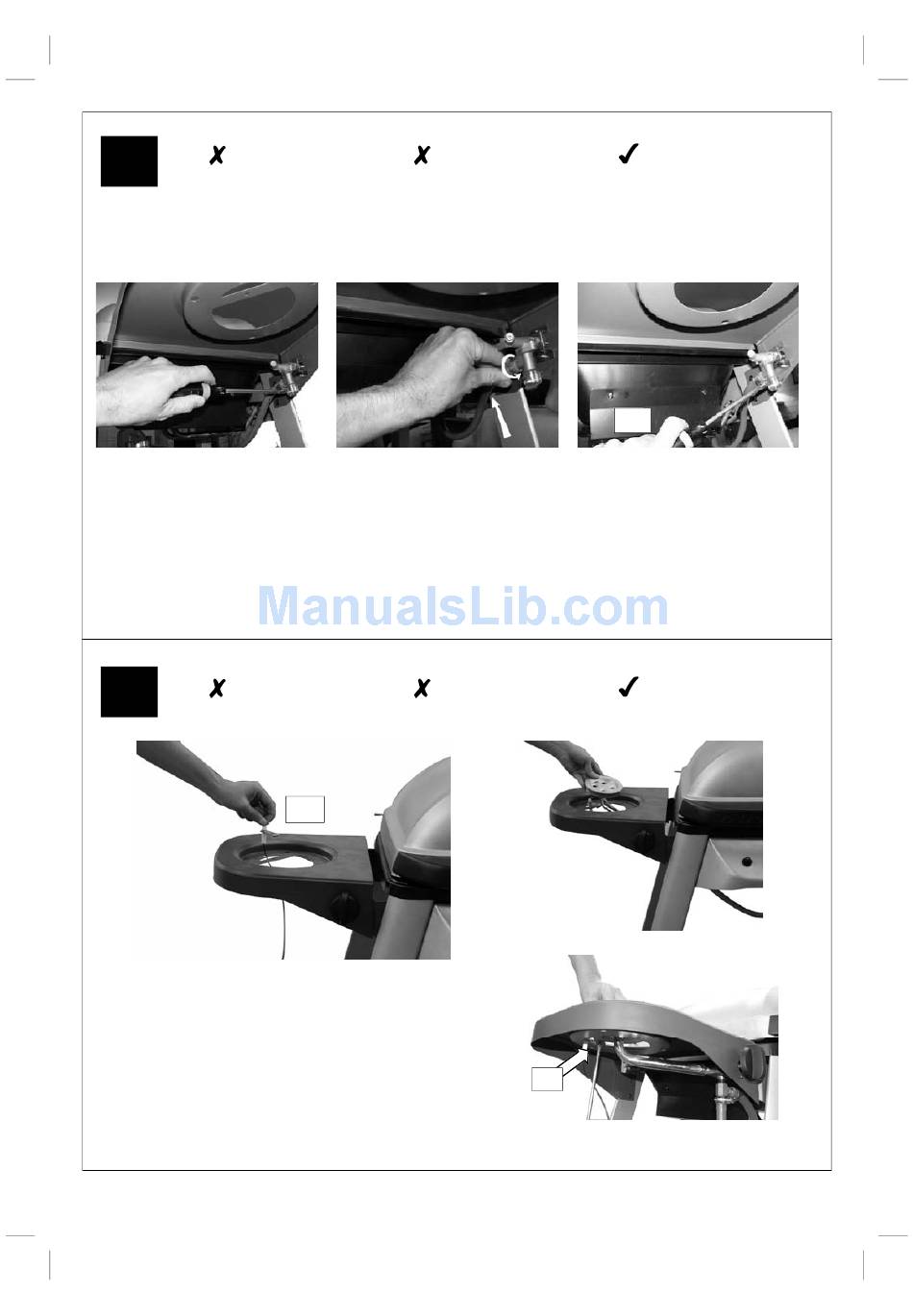

Once the hose is connected,, check to ensure that it is not in contact with the barbecue body or Body
Heat Shield (A13).
Loosen off the hose clip which
connects the hose to the side
burner gas valve.
Important: Regularly check the hose positioning to ensure that it is not in contact with any hot
surfaces, such as the bottom of the body or the heat shield.
20
Excel 100T
Place the Side Burner Electrode (B11) onto the
side burner shelf as shown and place the Side
Burner (B10) through the central hole and
position the side burner venturi tube over the
side burner gas valve. Secure the electrode
and burner with Screw (D3).
Note: The side burner venturi tube is a loose fit
on the vale and not a gas tight seal.
Excel 200T
Rotate the hose anti-clockwise
so that it touches the leg of the
barbecue.
Excel 200T
B11
18
Excel 300T
A13
Re-tighten the hose clip to secure
the hose in place, making sure
that the hose touches the leg of
the barbecue, but not the body or
heat shield.
Excel 300T
D3
