E. Assembly
TOOLS NEEDED FOR ASSEMBLY:
Medium size flat blade or Philips/cross-point screwdriver, adjustable spanner or metric spanner set
This barbecue requires two people for assembly. Please remove all packaging materials from all
individual parts before assembling. Please lay out all nuts and bolts and check lengths before
assembling. Whilst every care is taken during the manufacture of this product, care must be taken
during the assembly in case sharp edges are present.
1
Excel 100T
C6
2
Excel 100T
C3
Excel 200T
C7
Excel 200T
C2
C1

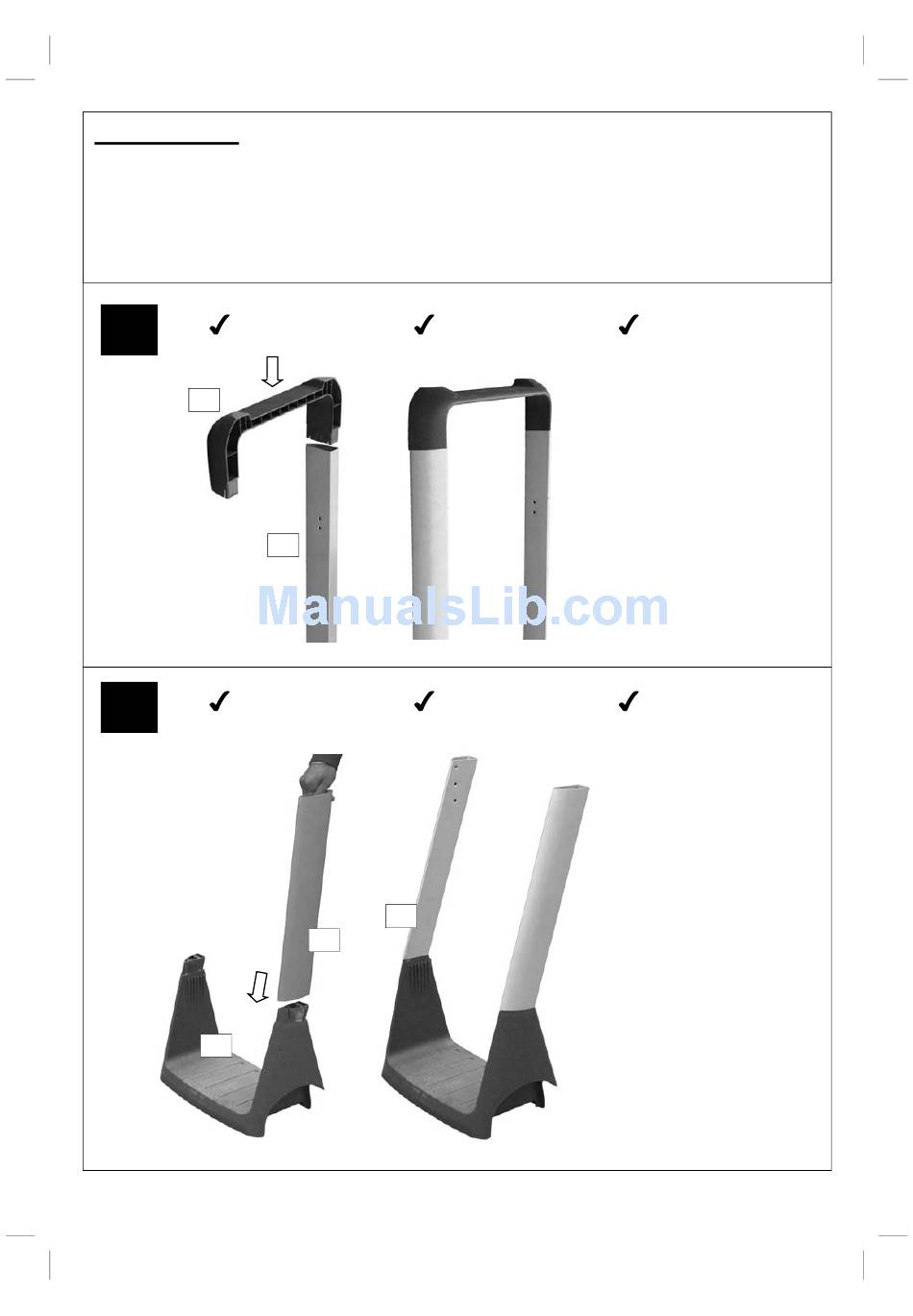

Attach the Long Leg Front
(C7) and Long Leg Rear
(C8) to the Leg End Loop
(C6). The legs are a push
fit onto the Leg End Loop.
In case of difficulty, they
may need tapping with a
soft faced mallet. Take
care not to damage the
parts.
Attach
Front (C1) and Short Leg
Rear (C2) to the Gas
Bottle Holder (C3). The
legs are a push fit onto
the Gas Bottle Holder. In
case of difficulty; they
may need tapping with a
soft faced mallet. Take
care not to damage the
parts.
9
Excel 300T
Excel 300T
the Short Leg
