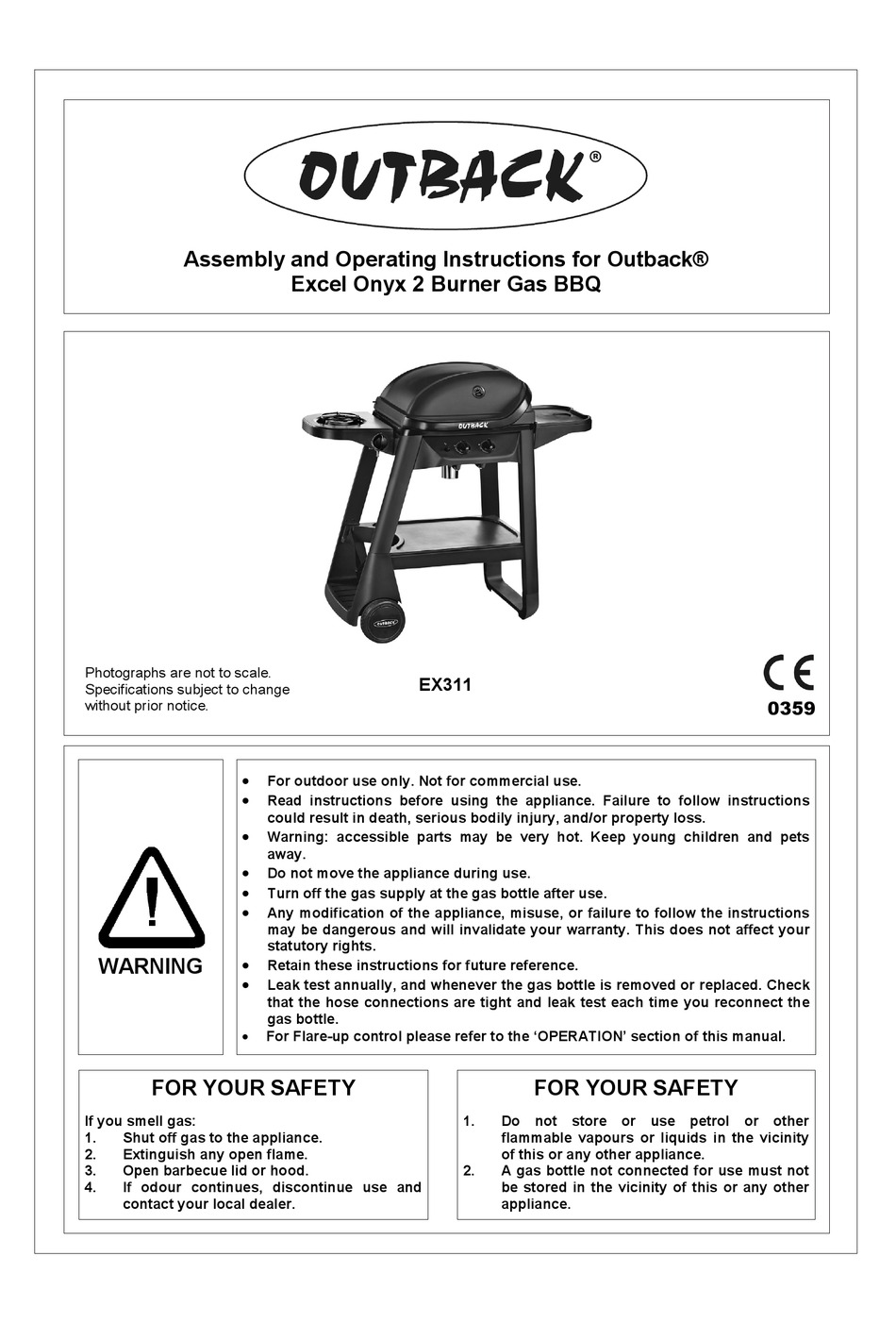

Assembly and Operating Instructions for Outback®
Photographs are not to scale.
Specifications subject to change
without prior notice.






WARNING


 For Flare-up control please refer to the 'OPERATION' section of this manual.
FOR YOUR SAFETY
If you smell gas:
1.
Shut off gas to the appliance.
2.
Extinguish any open flame.
3.
Open barbecue lid or hood.
4.
If odour continues, discontinue use and
contact your local dealer.
Excel Onyx 2 Burner Gas BBQ
EX311
For outdoor use only. Not for commercial use.
Read instructions before using the appliance. Failure to follow instructions
could result in death, serious bodily injury, and/or property loss.
Warning: accessible parts may be very hot. Keep young children and pets
away.
Do not move the appliance during use.
Turn off the gas supply at the gas bottle after use.
Any modification of the appliance, misuse, or failure to follow the instructions
may be dangerous and will invalidate your warranty. This does not affect your
statutory rights.
Retain these instructions for future reference.
Leak test annually, and whenever the gas bottle is removed or replaced. Check
that the hose connections are tight and leak test each time you reconnect the
gas bottle.
FOR YOUR SAFETY
1.
Do
not
store or
flammable vapours or liquids in the vicinity
of this or any other appliance.
2.
A gas bottle not connected for use must not
be stored in the vicinity of this or any other
appliance.
0359
use petrol
or other

Advertisement

Table of Contents
loading

Related Manuals for Outback Excel Onyx 2

Summary of Contents for Outback Excel Onyx 2

  • Page 1 Assembly and Operating Instructions for Outback® Excel Onyx 2 Burner Gas BBQ Photographs are not to scale. EX311 Specifications subject to change 0359 without prior notice.  For outdoor use only. Not for commercial use.  Read instructions before using the appliance. Failure to follow instructions could result in death, serious bodily injury, and/or property loss.

  • Page 2: Parts List

    Quantity varies according to model purchased. Specifications subject to change without prior notice. For more details on hardware, please see the corresponding ‘Hardware Reference Diagram’. OUTBACK® CODE PART EXCEL ONYX 2 BURNER GAS √ Hood (Pre-Assembled to Body)  √...

  • Page 3: Parts Diagram

    Parts Diagram: Quantity varies according to model purchased. Specifications subject to change without prior notice. For more details on hardware, please see the corresponding ‘Hardware Reference Diagram’.
  • Page 4 Hardware Reference Diagram: Specifications subject to change without prior notice.
  • Page 5 Assembly IMPORTANT! TOOLS NEEDED FOR ASSEMBLY: Medium size flat blade or Phillips/Crosspoint screwdriver,  adjustable spanner or metric spanner set. The assembly of this barbecue requires 2 people.  Whilst every care is taken in the manufacture of this product, care must be taken during assembly in ...
  • Page 6 Attach the Bottom Shelf (C21) to the Gas Bottle Holder (C15) using ST4.8x15 Screws (D6x2pcs). Take care not to over tighten these screws which will damage the plastic gas bottle holder. Attach the leg assembly to the bottom shelf assembly using M6x15 Bolts (D1x4pcs).
  • Page 7 C18 C19 Insert the Axle (C20) through the clamping brackets underneath the Gas Bottle Holder (C15) and tighten the clamping screws. Take care not to over tighten these screws which will damage the plastic gas bottle holder. Slide a Wheel Spacer (C17) over each end of the Axle (C20). Note: the spacers are packed in a plastic bag with the main electrode, grease cup holder and grease cup.
  • Page 8 a. Unscrew the nut from the Heat Indicator(A4). Place the heat indicator through the hole on the top of Hood(A1). Tighten the heat indicator with the nut. b. Attach the Hood Handle (A2) to the Hood (A1) using the M5x10 Bolts (D2x2pcs). Carefully place the Barbecue Body (B1) onto the tops of the legs.
  • Page 9 Install a M6x15 Bolt (D1) and a Spacer (D9) into the upper fixing hole on each front leg. Place the Control Panel (B3) assembly in position by aligning the spacers with the slot on each side of control panel and fix it to the trolley assembly using M6x15 Bolts (D1x2pcs). Feed the Grease Cup Holder (B14) through the hole in barbecue body.
  • Page 10 Insert the Main Electrode (B10) into the hole at the bottom of the barbecue body and secure with the pre-assembled nut. View from underneath the body × √ Feed the Burner (B2) into barbecue body. Ensure that the burner venturi tubes are over the ends of the gas valves.
  • Page 11 Attach the Body Heat Shield (B12) to barbecue body using the M5x10 Bolts (D2x2pcs) and M5 Nuts (D8x2pcs). Carefully lay the Lava Rock (B6) into the barbecue body ensuring it lies level within the body. Lay the Cooking Grill (B7) into place.
  • Page 12 Step 1 Step 2 Step 3 Step 4 Attach the Warming Rack (A3), to the hood and barbecue body as shown. Make sure that the shorter, fixed legs go through the holes in the hood, then the swing legs fix to the body of the barbecue.
  • Page 13 Slide a Shelf Spacer (D9) onto a M6x15 Bolt (D1) and screw it into the upper fixing point on the rear legs as shown. Repeat for the front leg. Attach the assembled Side Shelf (C2) to the right hand side of the barbecue by sliding a Shelf Spacer (D9) onto a M6x15 Bolt (D1) and fitting the shelf to the lower fixing point on the rear leg as shown.
  • Page 14 Remove the screws from Side Burner Valve / Hose Assembly (C10) and secure it to the side shelf with those 2 screws. Assemble the Side Burner Knob (C5) onto the side burner valve. √ × Place the Side Burner Electrode (C9) onto the side burner shelf as shown. Place the Side Burner (C8) through the central hole.
  • Page 15 Connect the electrode wire to the Ignition But- Place the Side Burner Grid (C6) onto the ton (B8) under the control panel. side burner shelf. NOTE: Make sure the base of cooking Side burner electrode Main burner electrode utensil to put on the side burner is larger wire goes here.

  • Page 16: Leak Testing

    Leak Test Diagram 1. Maximum diameter or breadth is 315mm. 2. Maximum height (regulator included) is 580mm. ASSEMBLY IS NOW COMPLETE. PROCEED TO THE NEXT PAGE FOR INSTRUCTIONS ON OPERATION AND MAINTENANCE ALL JOINTS AND CONNECTIONS MUST NOW BE LEAK TESTED BEFORE USING THE BARBECUE.
  • Page 17 Important Information Before you use your barbecue, perform a  leak test. This is the only safe and sure way to detect any gas leaking from joints and Please read these instructions carefully connections of the barbecue after assembly. before assembly and use of your barbecue. Leak test annually, and whenever the gas ...

  • Page 18: Installation

    local gas dealer for the most suitable regulators Preparation Before Cooking and gas bottles. To prevent foods from sticking to the cooking surface, please use a long handled brush to apply a light coat of cooking or vegetable oil Installation before each barbecuing session.
  • Page 19 dealer for assistance. before grilling, use cooking sauces and  After ignition, turn the burners to the low marinades sparingly and try to avoid very position for 3-5 minutes in order to pre-heat cheap cuts of meat or meat products as these tend to have a high fat and water the barbecue.

  • Page 20: Care And Maintenance

    Provided that they are operating correctly, in barbecue covers and other accessories are normal usage, burning off the residue after available from your local Outback® stockist. cooking will keep the burners clean. Even when your barbecue is covered for its...
  • Page 21 Do not let children burners in order to burn off any residue. tamper with the bottle. Replacement lava rock is available from your local Outback® stockist. When using the barbecue after extended periods storage follow...

  • Page 22: Technical Specifications

    2.3kW 0.74mm Burner 359BS791 Propane: 37mbar Gas Consumption: Excel Onyx 2 Burner Gas: 472g/hr Side Burner: 165g/hr Countries of Use: BE, CH, CY, CZ, ES, FR, GB, GR, IE, IT, LT, LU, LV, PT, 3+ (28-30/37) SK, SI Specifications subject to change without prior notice.

  • Page 23: Troubleshooting

    Troubleshooting Problem Possible Cause Solution Burner will not light using LP gas bottle is empty Replace with full bottle the ignition system Faulty regulator Have regulator checked or replaced Obstructions in burner Clean burner Obstructions in gas jets or gas hose Clean jets and gas hose Electrode or ignition button wire is loose Reconnect wire...
  • Page 24 OUTBACK® WARRANTY OUTBACK® barbecues are warranted for a period of one (1) year from the date of purchase to the original purchaser against defects in materials and workmanship, OUTBACK® will sup- ply replacements for defective parts free of charge provided that: The product has not been used for trade, professional or hire purposes.
