5
Excel 100T
C3

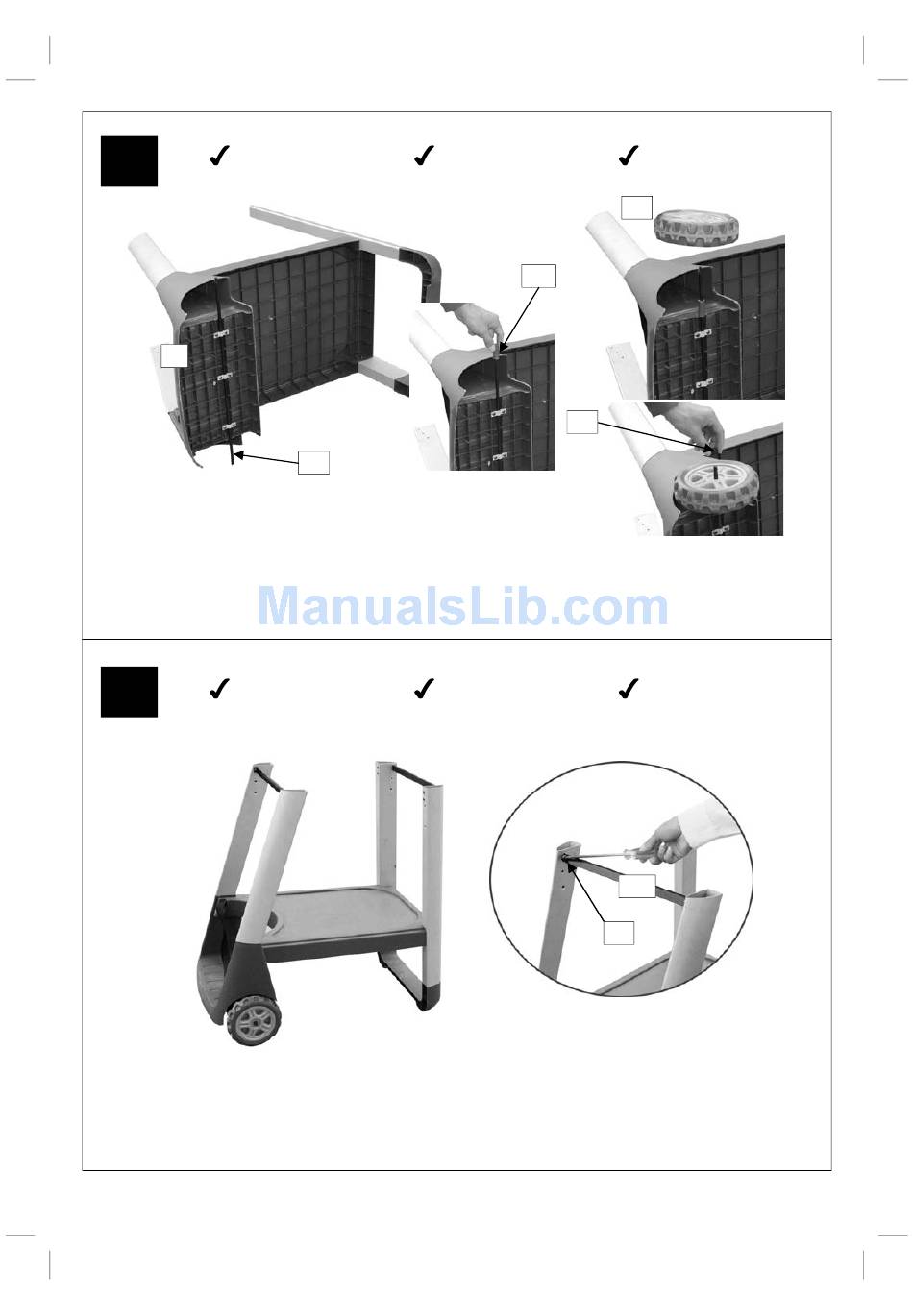

Insert the axle (C5) through the clamping brackets
underneath the Gas Cylinder Holder (C3) and
tighten the clamping screws. Taking care not to
over tighten.
Slide a Wheel Spacer (C12) over the Axle (C5).
6
Excel 100T
Excel 200T
C5
Excel 200T
11
Excel 300T
C4
C12
D6
Slide a wheel (C4) and secure it with
a M8 Locknut (D6). Repeat for the
other side before standing it up.
Excel 300T
A16
D1
Attach the Body Support (A16) to the legs
using the screws (D1).
Note: The securing tabs on the end of the
supports should face away from the
barbecue as shown in the diagram.
