11
Excel 100T

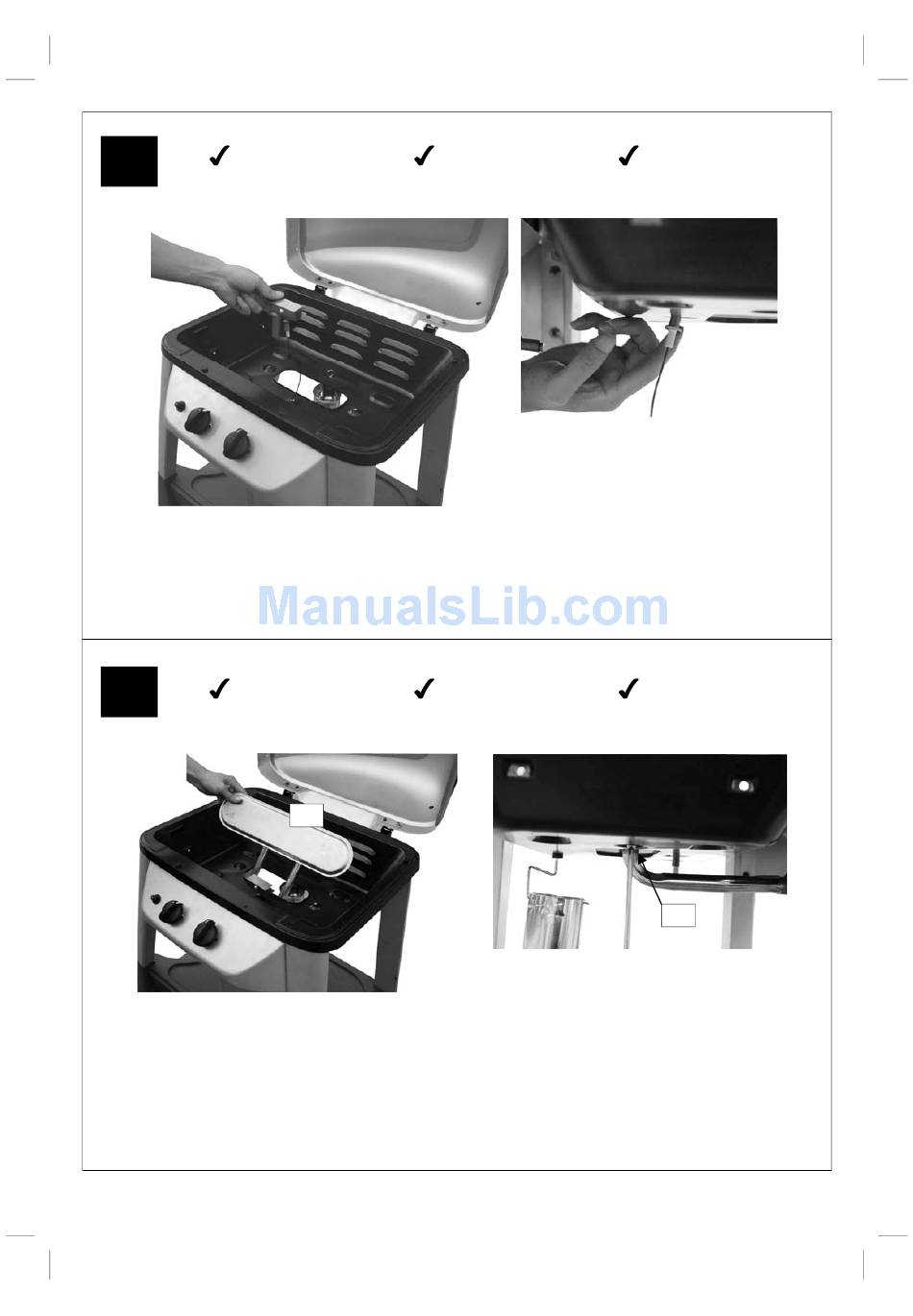

Remove the lower nut from the main electrode (A12) and insert the electrode with the
gas collector box into the hole in the bottom of the body. The open face of the gas
collector box must face towards the back of the barbecue body. Secure with the nut
removed earlier. Connect the electrode wire to the pin at the back of the push button
igniter.
12
Excel 100T
Fit the Burner (A2) into the Body (A5) ensuring
the burner venturi tubes are over the ends of
the gas valves. They are a loose fit and not a
gas tight seal. Secure the Burner with the
Screws (D4).
Excel 200T
Excel 200T
A2
14
Excel 300T
Excel 300T
D4
View from underneath the body.
