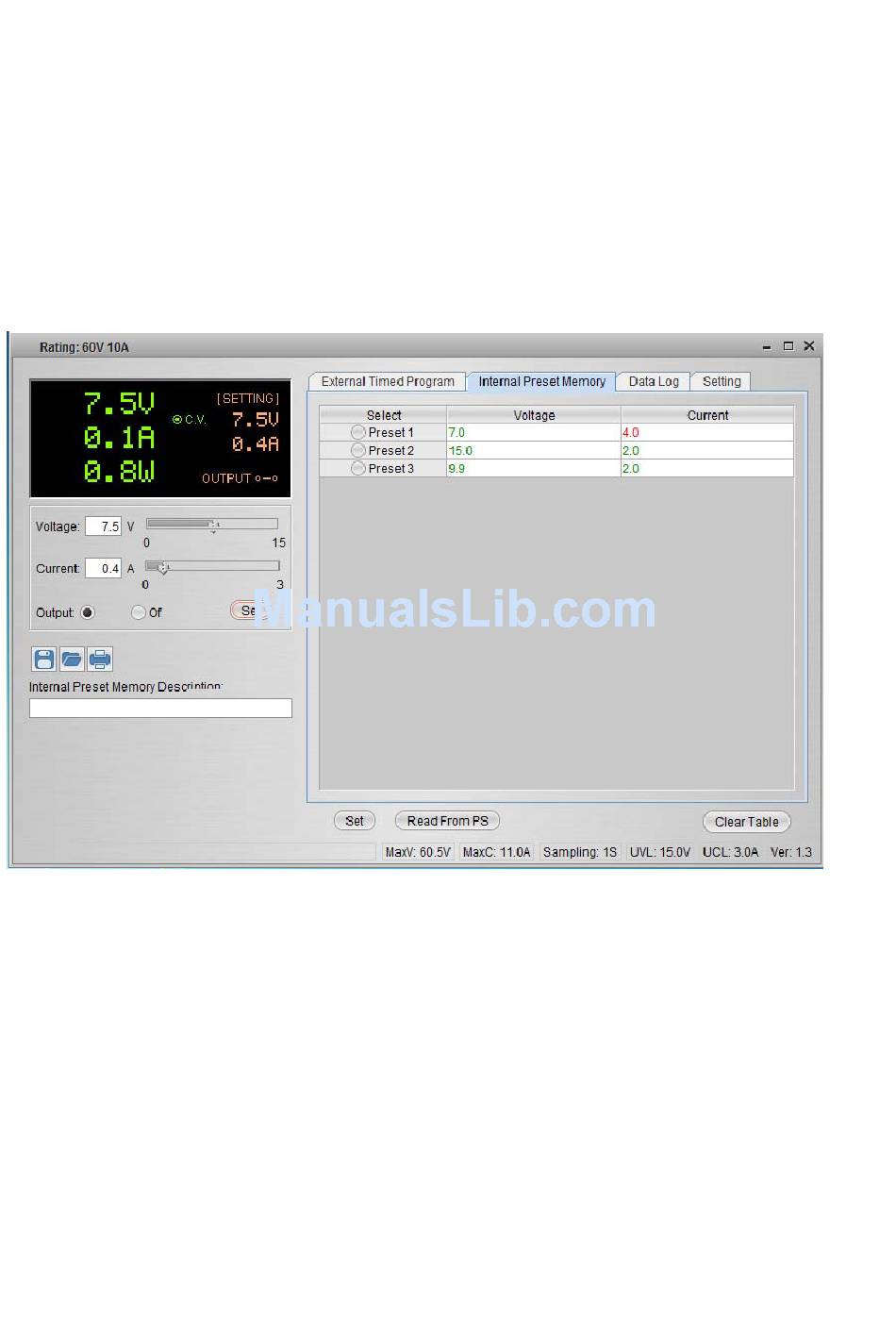

Internal Preset Memory
The PC interface's remote Preset capability simplifies the tedious process of keying in groups of
entries. Since all the data are displayed at the same time on the PC monitor, the possibility of
entering data incorrectly is greatly reduced. Data of different groups can be classified, stored,
exported and retrieved for use at any time.
Retrieved data will appear red in color if they exceed the preset voltage/current limits.
Click 'Clear Table' to delete all data on the Display Table to prepare for new data.
Click 'Read for PS' to retrieve data from the Power Supply.
16 DCP60‐EU‐EN V1.4 9/13
