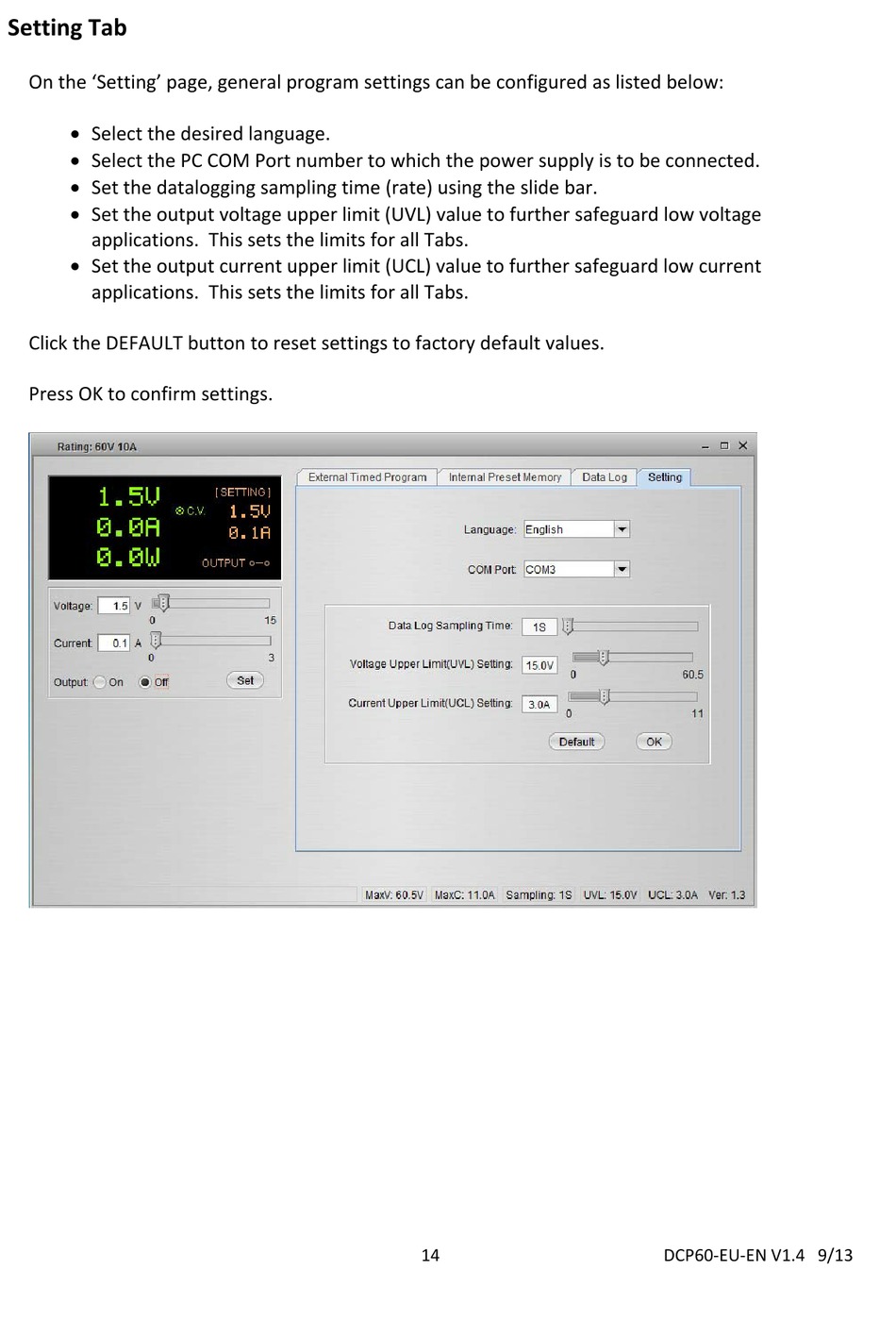

Setting Tab
On the 'Setting' page, general program settings can be configured as listed below:
 Select the desired language.
 Select the PC COM Port number to which the power supply is to be connected.
 Set the datalogging sampling time (rate) using the slide bar.
 Set the output voltage upper limit (UVL) value to further safeguard low voltage
applications. This sets the limits for all Tabs.
 Set the output current upper limit (UCL) value to further safeguard low current
applications. This sets the limits for all Tabs.
Click the DEFAULT button to reset settings to factory default values.
Press OK to confirm settings.
