Aligning the Interactive Whiteboard

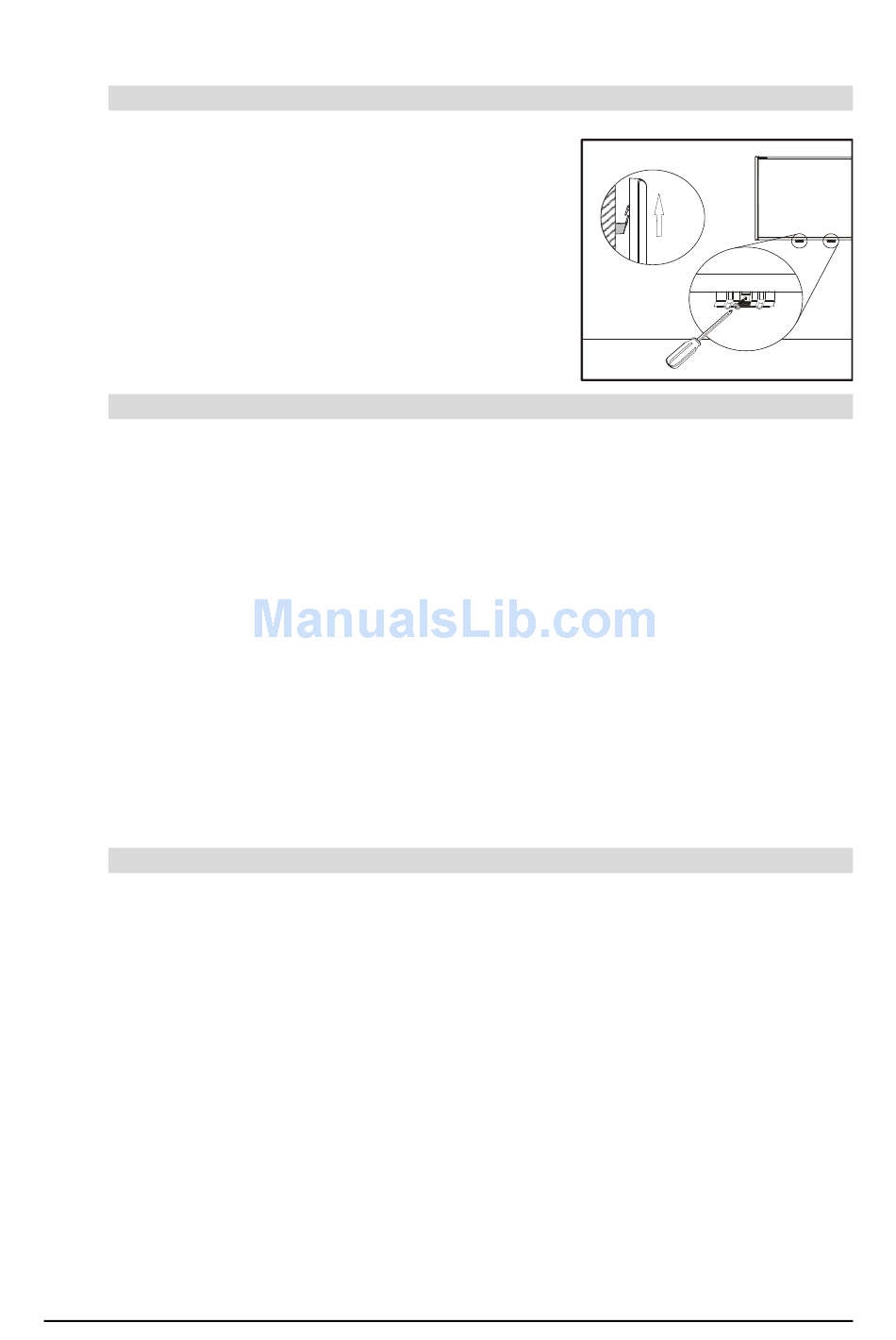

To prepare to align the interactive whiteboard
1. If your 600i system is fully installed, remove the pen
tray from the interactive whiteboard. See page 16.
2. Remove the screws from the pen tray brackets, and
put them aside.
The bottom of the interactive whiteboard is free from
the wall. Don't lift the interactive whiteboard off the
wall mount bracket.
3. Connect the projector's power cable to a wall outlet,
and then turn on the projector using the remote
control.
To adjust the projected image if it is wider at the bottom
1. While holding the interactive whiteboard against the wall, measure the space between the
bottom frame and the wall.
2. Gently pull the bottom of the interactive whiteboard away from the wall until the sides of
the image are parallel, and then measure how far you moved the bottom of the interactive
whiteboard.
NOTE: You may have to adjust the projector boom length and focus slightly during this
step.
3. Make two spacers of the correct thickness to put behind the bottom corners of the
interactive whiteboard.
4. Lift the interactive whiteboard from the wall mount bracket, and then place it face down on
a flat surface.
5. Tape one of the spacers to the back of the SC9 controller module, and the other to the
round pad on the back of the left frame.
6. Return the interactive whiteboard to the wall mount bracket.
7. Replace the two pen tray bracket screws, and then replace the pen tray.
To adjust the projected image if it is wider at the top
1. While holding the interactive whiteboard against the wall, measure the space between the
top frame and the wall.
2. Lift the interactive whiteboard off its mounting bracket, and then hold the interactive
whiteboard against the wall at the same height as when it was mounted.
3. Pull the top of the interactive whiteboard away from the wall until the sides of the image
are parallel, and then measure how far you moved the top of the interactive whiteboard.
NOTE: You may have to adjust the projector boom and focus slightly during this step.
4. Put the interactive whiteboard aside.
5. Make a spacer of the correct thickness to fit behind the wall mount bracket.
6. Remove the wall mount bracket screws using a Phillips® No. 2 screwdriver, and then
remove the bracket.
7. Place the spacer behind the wall mount bracket, and then replace the bracket.
8. Return the interactive whiteboard to the wall mount bracket.
9. Replace the two pen tray bracket screws, and then replace the pen tray.
