  • Page 1 Configuration and User’s Guide SMART Board™ 600i3 Interactive Whiteboard System...
  • Page 2 Trademark Notice SMART Board, GoWire, smarttech and the SMART logo are trademarks or registered trademarks of SMART Technologies ULC in the U.S. and/or other countries. Bluetooth is a trademark owned by Bluetooth SIG, Inc. and is used by SMART Technologies ULC under license. All other third-party product and company names may be the trademarks of their respective owners.

  • Page 3: Important Information

    Important Information Read This Section First NOTE: If you own a SMART product other than a SMART Board™ 600i3 interactive whiteboard system, refer to the installation guide that came with your product for relevant warnings and maintenance instructions. In this document, “SMART Board 600i3 interactive whiteboard system” refers to the SMART Board 600 series interactive whiteboard and its UF55/UF55w projector, accessories and optional equipment.

  • Page 4: Safety Warnings

    Safety Warnings • If the projector is mounted on the projector’s arm, the manufacturer recommends contacting WARNING your authorized SMART reseller to exchange the lamp. • Uncovering the lamp while the projector is mounted on a projector’s arm might lead to product damage or personal injury from falling pieces of glass if the lamp is broken.
  • Page 5 • To reduce the risk of fire or electric shock, do not expose any component of your SMART Board interactive whiteboard system to rain or moisture. • When mounting the projector on a framed wall, you must attach both the mounting bracket and safety tether to a stud to safely support the projector’s weight.
  • Page 6 (ECP’s) RS-232 serial interface is the only recommended connection point. • You must connect the USB cable that came with your SMART Board interactive whiteboard to a computer that has a USB compliant interface and that bears the USB logo. In addition, the USB source computer must be compliant with CSA/UL/EN 60950 and bear the CE mark and CSA and/or UL Mark(s) for CAS/UL 60950.

  • Page 7: Other Precautions

    Transporting the SMART Board 600i3 Interactive Whiteboard System If you need to ship any part of your SMART Board 600i3 interactive whiteboard system, repack it with the original packaging. If the original packaging is no longer available, you may purchase replacement packaging from your authorized SMART reseller.
  • Page 8 Important Information 99-00915-20 B0...

  • Page 9: Table Of Contents

    Optional Accessories ............................. 4 Installing Your SMART Board 600i3 Interactive Whiteboard System Environmental Requirements......................... 8 Before Installing Your SMART Board 600i3 Interactive Whiteboard System ..........9 After Installing Your SMART Board 600i3 Interactive Whiteboard System ..........10 Focusing the Image............................11 Performing an Image Alignment........................

  • Page 10: Table Of Contents

    Appendix B: Remotely Managing Your SMART Board 600i3 Interactive Whiteboard System Programming Commands for Your SMART Board 600i3 Interactive Whiteboard System Settings .....51 Command Inventory.............................54 Hardware Environmental Compliance Waste Electrical and Electronic Equipment Regulations (WEEE Directive)..........63 Restriction of Certain Chemicals (REACH Directive) ...................63 Restriction of Certain Hazardous Substances (RoHS) Directives..............63...

  • Page 11: About Your Smart Board 600I3 Interactive Whiteboard System

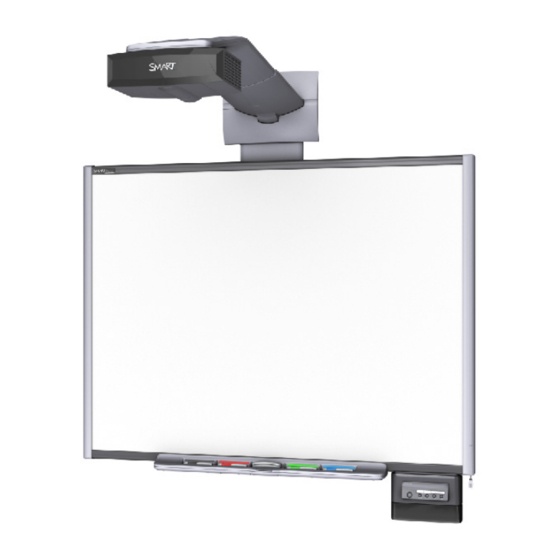

    The SMART Board 600i3 interactive whiteboard system combines the UF55/UF55w wall mounted, short-throw projector system with a SMART Board 600 series interactive whiteboard. Topics in this chapter describe the features and accessories that you can use with your SMART Board 600i3 interactive whiteboard system: •...

  • Page 12: Smart Board 600I3 Interactive Whiteboard System Features

    The SMART Board 600 series interactive whiteboard includes many features of other SMART Board interactive whiteboards, such as a resistive touch screen and a pen tray. The SMART Board 600 series performs best with the UF55/UF55w projector because of its exceptional color performance and input response.
  • Page 13 UF55/UF55w Projector System Features The UF55/UF55w projector system includes a short-throw projector for use with SMART Board 600 series interactive whiteboards, an extended control panel (ECP) and a sturdy support system for classroom environments. The features of the projector system include: •...

  • Page 14: Standard Accessories

    Standard Accessories SMART provides the following accessories with your SMART Board 600i3 interactive whiteboard system. Remote Control The remote control lets you control the system and set up your UF55/UF55w projector. Use the remote control to access menu options, system information and input selection options.
  • Page 15 The extender includes two 6' (1.8 m) USB cables to connect your computer and your interactive whiteboard to the extender units. Serial Conversion Module (RS-232) Use the RS-232 module to convert your interactive whiteboard’s USB connection to a serial connection. 99-00915-20 B0 About Your SMART Board 600i3 Interactive Whiteboard System...
  • Page 16 About Your SMART Board 600i3 Interactive Whiteboard System 99-00915-20 B0...

  • Page 17: Installing Your Smart Board 600I3 Interactive Whiteboard System

    Installing Your SMART Board 600i3 Interactive Whiteboard System Consult the SMART Board 600i3 interactive whiteboard system installation documents that came with your product for instructions on how to install your product and use the mounting template and the ECP. IMPORTANT Use the instructions found in the UF55/UF55w projector boxes to install your system, not the instructions in your SMART Board interactive whiteboard product box.

  • Page 18: Environmental Requirements

    SMART Board 600i3 interactive whiteboard systems can operate in a temperature range of 41°F to 95°F (5°C to 35°C) from sea level to an altitude up to 6000' (0 m to 1829 m) and in a temperature range of 41°F to 86°F (5°C to 30°C) from 6000' to 9800' (1829 m to 2987 m).

  • Page 19: Before Installing Your Smart Board 600I3 Interactive Whiteboard System

    Before Installing Your SMART Board 600i3 Interactive Whiteboard System Choose a location for your SMART Board 600i3 interactive whiteboard system that is far from bright light sources, such as windows or overhead lighting. Bright light sources can cause distracting shadows on the interactive whiteboard and can reduce the contrast of the projected image.

  • Page 20: After Installing Your Smart Board 600I3 Interactive Whiteboard System

    SMART Board 600 series interactive whiteboard on an uneven surface or a wall that has obstructions. Horizontal keystone errors can occur when you swivel the UF55/UF55w projector too far from the SMART Board 600 series interactive whiteboard’s vertical center, when you mount the projector and the interactive whiteboard on an uneven surface, or when the board is slightly closer to the projector on one side than the other.

  • Page 21: Focusing The Image

    To focus the projected image, use the Focus Ring, located on the bottom of the UF55/UF55w projector (when the projector is facing downward). To focus and adjust the image Rotate the Focus Ring lever right or left until the image is clear. Focus Ring 99-00915-20 B0 Installing Your SMART Board 600i3 Interactive Whiteboard System...

  • Page 22: Performing An Image Alignment

    Tilt the projector left or right, up or down, or from side to side, until the top edge of the projector image is parallel with the top edge of the interactive whiteboard. Installing Your SMART Board 600i3 Interactive Whiteboard System 99-00915-20 B0...
  • Page 23 NOTE: The entire projected image may increase slightly in size during this process, more so at the bottom of the projected image than at the top. Projector Boom 99-00915-20 B0 Installing Your SMART Board 600i3 Interactive Whiteboard System...
  • Page 24 Align the interactive whiteboard with the projected image. NOTE: Move your SMART Board interactive whiteboard left or right on its mounting bracket to center the image on the interactive whiteboard. Installing Your SMART Board 600i3 Interactive Whiteboard System...
  • Page 25 Focus the projector using the focus lever (located on the top of the projector). NOTE: You may need to repeat all steps in smaller increments in order to fine-tune the image. Tighten the large wingnut on the top of the ball joint. 99-00915-20 B0 Installing Your SMART Board 600i3 Interactive Whiteboard System...

  • Page 26: Securing The Pen Tray And The Interactive Whiteboard

    Securing the Pen Tray and the Interactive Whiteboard Because the pen tray that comes with your SMART Board interactive whiteboard is detachable, you may want to safeguard it–and the interactive whiteboard at the same time–by anchoring it with a security cable.
  • Page 27 Because you can remove the pen tray without tools, you may want to securely attach it to its brackets. To do this, you can insert two No. 8/M4 screws (not included) into the holes shown in the illustration below. Note that older pen trays don’t have this feature. Screw Location 99-00915-20 B0 Installing Your SMART Board 600i3 Interactive Whiteboard System...
  • Page 28 Installing Your SMART Board 600i3 Interactive Whiteboard System 99-00915-20 B0...

  • Page 29: Connecting Your Smart Board 600I3 Interactive Whiteboard System

    If your software CD includes an older version of the software, you will need to download a newer version. If SMART Board software or SMART Notebook software is already installed on your computer, you can take this opportunity to upgrade your software to ensure compatibility. SMART Notebook software upgrades and online Help are available at www.smarttech.com/support/software/index.asp.

  • Page 30: Connecting The Cables To The Uf55/Uf55W Projector

    When connecting cables from the UF55 projector to the 560, 580, 660 and 680 interactive whiteboards, make sure all cables pass along the top of the SMART Board mounting bracket and down the left or right side of the interactive whiteboard.
  • Page 31 NOTE: Don’t connect the power cable to a power outlet until all cables are connected to the projector. Cable Slot Power Supply Receptacle 99-00915-20 B0 Connecting Your SMART Board 600i3 Interactive Whiteboard System...
  • Page 32 Connect the S-Video and two Audio cables from your ECP to the receptacles in section A. Connect the Video and two Audio cables from the ECP to the cables in section B. Connect the Audio 2 and Computer 2 VGA cables in section C. Connecting Your SMART Board 600i3 Interactive Whiteboard System 99-00915-20 B0...
  • Page 33 Video Computer (VGA) 2 Computer (VGA) 1 VGA Out Connect the VESA RGB (VGA) connector and the DB-25 connector from the harness cable to the ECP. DB-25 VGA Connector Connector 99-00915-20 B0 Connecting Your SMART Board 600i3 Interactive Whiteboard System...
  • Page 34 Audio Out Service Control S-video Video Computer (VGA) 2 Computer (VGA) 1 VGA Out 3.5 mm RJ-45 Replace the projector’s cable cover. Connect the projector’s power cable to an outlet. Connecting Your SMART Board 600i3 Interactive Whiteboard System 99-00915-20 B0...
  • Page 35 Your interactive whiteboard system does not include speakers. To play audio, connect an audio IMPORTANT system to the projector’s audio output. Consult your authorized SMART reseller to determine your audio output options. 99-00915-20 B0 Connecting Your SMART Board 600i3 Interactive Whiteboard System...
  • Page 36 To connect a DVD player, VCR, document camera, digital camera or other visual or audio-visual peripheral device to the SMART Board interactive whiteboard system, you must connect the device’s video and audio outputs to the ECP. You can have up to three peripheral devices and a host computer connected at one time.

  • Page 37: Using Your Smart Board 600I3 Interactive Whiteboard System

    NOTE: Depending on the video source, it may take several seconds for the video signal to display. Consider leaving the system on between uses. Repeatedly turning the system on and off can reduce the lamp’s life span. 99-00915-20 B0 Using Your SMART Board 600i3 Interactive Whiteboard System...

  • Page 38: Using Your Interactive Whiteboard

    1414) on using information about your interactive whiteboard. When you connect your interactive whiteboard system to a computer with SMART Notebook or SMART Board software, you can access the software’s full capabilities. The computer interprets your touch on the interactive screen and moves the pointer to the corresponding point on the computer’s screen.
  • Page 39 This option adjusts the color performance of the display from 0 to 3. Color This option adjusts your individual color settings. Volume This option increases and decreases volume from -20 to 20. Audio Control 99-00915-20 B0 Using Your SMART Board 600i3 Interactive Whiteboard System...
  • Page 40 SMART Technical Support Specialist. Status This screen displays the network connection status as Connected or Disconnected. Network Settings DHCP This option turns the network DHCP On or Off. Using Your SMART Board 600i3 Interactive Whiteboard System 99-00915-20 B0...
  • Page 41 This field shows your projector model number. Serial Number This field shows your projector serial number. To access further information on Web Management, Home Page and the Control Panel, see the UF55/UF55w Projector User’s Guide. 99-00915-20 B0 Using Your SMART Board 600i3 Interactive Whiteboard System...
  • Page 42 Using Your SMART Board 600i3 Interactive Whiteboard System 99-00915-20 B0...

  • Page 43: Troubleshooting Your Smart Board 600I3 Interactive Whiteboard System

    Troubleshooting Your SMART Board 600i3 Interactive Whiteboard System This chapter provides basic troubleshooting information for your SMART Board 600i3 interactive whiteboard system. For more complex issues or issues not mentioned in this section, please contact your authorized SMART reseller or consult the SMART Technical Support website.

  • Page 44: Errors

    Reconnect the power cord. If the previous steps don’t resolve the issue and your projector still doesn’t turn on, unplug the power cord, and then contact your authorized SMART reseller. Troubleshooting Your SMART Board 600i3 Interactive Whiteboard System 99-00915-20 B0...
  • Page 45 SMART Technical Support website for information on how to replace the lamp. If your projector still doesn’t turn on, unplug the power cord, and then contact your authorized SMART reseller. 99-00915-20 B0 Troubleshooting Your SMART Board 600i3 Interactive Whiteboard System...

  • Page 46: Interactive Whiteboard Indicators And Controls

    If the previous steps don’t resolve the issue, unplug the power cord and then contact your authorized SMART reseller. Interactive Whiteboard Indicators and Controls The SMART Board 600 series interactive whiteboard includes the following indicators and controls: • The ready light LED •...

  • Page 47: Maintaining Your Smart Board 600I3 Interactive Whiteboard System

    Maintaining Your SMART Board 600i3 Interactive Whiteboard System This chapter includes methods for preventing damage to and properly cleaning your SMART Board 600i3 interactive whiteboard system. Follow the additional instructions and recommendations in your 600 series interactive whiteboard, see the Installation and User’s Guide...

  • Page 48: Cleaning The Pen Tray

    NOTE: There are no user serviceable parts inside the pen tray. Only qualified personnel should disassemble the pen tray. If dust or a small object prevents you from pressing a button, or causes a button to stick, remove the object carefully. Maintaining Your SMART Board 600i3 Interactive Whiteboard System 99-00915-20 B0...

  • Page 49: Cleaning The Uf55/Uf55W Projector

    Make sure you gently wipe the lens from the center to the outer area. • Spraying the system might spread a chemical mist on some of the projector’s components and lamp, resulting in damage and poor image quality. 99-00915-20 B0 Maintaining Your SMART Board 600i3 Interactive Whiteboard System...

  • Page 50: Locating Your Projector Serial Number

    The serial number on the UF55/UF55w projector is located on the top mounting plate (the side away from the projector’s lens). To access the serial number through your projector’s on-screen menu, see page 31 or the UF55/UF55w Projector User’s Guide. Serial Number Location Maintaining Your SMART Board 600i3 Interactive Whiteboard System 99-00915-20 B0...

  • Page 51: Appendix A: Replacing Your Uf55/Uf55W Projector Lamp

    Appendix A: Replacing Your UF55/UF55w Projector Lamp This appendix has detailed instructions on how to replace your projector lamp. Topics include the following: • Replacing the Projector Lamp (page 41) – Removing the Projector from the Boom (page 43) – Replacing the Projector Lamp Module (page 45) –...
  • Page 52 • If the projector is mounted on the projector’s arm, the manufacturer recommends contacting WARNING your authorized SMART reseller to exchange the lamp. • Uncovering the lamp while the projector is mounted on a projector’s arm might lead to product damage or personal injury from falling pieces of glass if the lamp is broken. •...
  • Page 53 Removing the Projector from the Boom Before you can replace the projector lamp, you must remove the projector from the boom. To remove the projector from the boom Wait for the projector to cool by allowing the fan to completely shut down. Unplug the power cable at the projector to shut down the lamp.
  • Page 54 If you use a projector padlock, make sure that you remove it from the locking loop. If you need access to your projector locking screw, loosen the wingnut and slide the projector all the way back away from the interactive whiteboard’s screen. Re-tighten the wingnut.
  • Page 55 Replacing the Projector Lamp Module After you remove the lamp from the boom, follow these instructions to replace the lamp. To remove the old lamp Turn off the projector by pressing the power button located on the remote control. Make sure that the fan is completely off and then unplug the power cable.
  • Page 56 Pull up on the handle of the old lamp. Do not touch any part of the lamp except the housing. Remove the old lamp. Recycle or dispose of the old lamp according to your local waste authority. Remove the new lamp from all of its packaging.
  • Page 57 Put the outer lamp cover back into its original position. Re-attaching the Projector WARNING Two people are required to re-mount the projector. To re-attach the projector to the boom Put the projector back on the boom by aligning the hooks with the slots on the projector.
  • Page 58 Retrieve the projector plate screw that you removed when you took the projector off the boom. Secure the projector to the plate with the screw. Re-attach your projector padlock (optional). WARNING Two people are required to re-mount the projector. Connect all cables to the projector and then attach the cable cover.
  • Page 59 To re-adjust your image, see pages 11 to 15. Attach the cover on the top of the boom. Tighten the screw until it is secure, without putting pressure or weight on the projector boom. 99-00915-20 B0 Appendix A: Replacing Your UF55/UF55w Projector Lamp...
  • Page 60 Resetting the Lamp Timer After you replace the lamp, reset the lamp timer. To reset the lamp timer Press the power button on the ECP, or remote control to start the system. The ECP’s power light turns solid green when the system starts. To confirm that the lamp timer has been reset, access the service menu by pressing DOWN, UP, UP, LEFT, UP (DUULU) on the remote control.

  • Page 61: Appendix B: Remotely Managing Your Smart Board 600I3 Interactive Whiteboard System

    This appendix has detailed instructions on how to set up your computer or room control system to manage your SMART Board 600i3 interactive whiteboard system settings. Topics include the following: • Programming Commands for Managing Your 600i3 Interactive Whiteboard System Settings (page 51) – Pin Configuration on the ECP RS-232 Connector (page 52) –...
  • Page 62 Wait until you receive the command prompt indicating that the system is ready for another command before proceeding. • The room control feature of your projector is always on. Appendix B: Remotely Managing Your SMART Board 600i3 Interactive Whiteboard System 99-00915-20 B0...
  • Page 63 In each power state, the commands are buffered until the system can process them. The ? command will list all available commands for the current powerstate. IMPORTANT The system buffer can delay response times. Response times vary. 99-00915-20 B0 Appendix B: Remotely Managing Your SMART Board 600i3 Interactive Whiteboard System...

  • Page 64: Command Inventory

    Allow the ECP to sequence the commands Control the sequence programmatically To allow the ECP to sequence commands Type on, and then press ENTER. Type set input=vga1, and then press ENTER. Appendix B: Remotely Managing Your SMART Board 600i3 Interactive Whiteboard System 99-00915-20 B0...
  • Page 65 To control the sequence programmatically Send Command: Wait for Command Prompt Send Command: get powerstate Wait for Command Prompt Response: powerstate=on Send Command: set input=vga1 Wait for Command Prompt 99-00915-20 B0 Appendix B: Remotely Managing Your SMART Board 600i3 Interactive Whiteboard System...
  • Page 66 NOTE: Confirm Off, as listed under the cooling Possible Value list in the table, is a confirm off non-selectable powerstate that is returned during stage one of the two idle button off sequence. Appendix B: Remotely Managing Your SMART Board 600i3 Interactive Whiteboard System 99-00915-20 B0...
  • Page 67 NOTE: The None value is a non-selectable value that appears Composite when you enter a ‘get input’ command S-Video while the projector is in idle mode. None 99-00915-20 B0 Appendix B: Remotely Managing Your SMART Board 600i3 Interactive Whiteboard System...
  • Page 68 If you indicate a specific =0 to 100 numerical value, it sets the contrast directly to the number. 0 to 100 current contrast Indicates the current contrast. Appendix B: Remotely Managing Your SMART Board 600i3 Interactive Whiteboard System 99-00915-20 B0...
  • Page 69 (Continued on next page) 99-00915-20 B0 Appendix B: Remotely Managing Your SMART Board 600i3 Interactive Whiteboard System...
  • Page 70 Displays the target gateway. current primarydns x.x.x.x Displays the current primary DNS. target primarydns x.x.x.x Displays the target primary DNS. MAC address x-x-x-x-x-x Displays the device’s MAC address. Appendix B: Remotely Managing Your SMART Board 600i3 Interactive Whiteboard System 99-00915-20 B0...
  • Page 71 Displays the projector’s network firmware version. current fwvermpu x.x.x.x Displays the MPU version. current fwver x.x.x.x Displays the ECP application version. current bootver x.x.x.x Displays the bootloader version. 99-00915-20 B0 Appendix B: Remotely Managing Your SMART Board 600i3 Interactive Whiteboard System...
  • Page 72 Appendix B: Remotely Managing Your SMART Board 600i3 Interactive Whiteboard System 99-00915-20 B0...

  • Page 73: Hardware Environmental Compliance

    Hardware Environmental Compliance SMART Technologies supports global efforts to ensure that electronic equipment is manufactured, sold and disposed of in a safe and environmentally friendly manner. Waste Electrical and Electronic Equipment Regulations (WEEE Directive) Waste Electrical and Electronic Equipment regulations apply to all electrical and electronic equipment sold within the European Union.

  • Page 74: China's Electronic Information Products Regulations

    China’s Electronic Information Products Regulations China regulates products that are classified as EIP (Electronic Information Products). SMART Technologies products fall under this classification and meet the requirements for China’s EIP regulations. U.S. Consumer Product Safety Improvement Act The United States has enacted the Consumer Product Safety Improvement Act which limits the lead (Pb) content in products.

  • Page 75: Customer Support

    Customer Support Online Information and Support Visit www.smarttech.com/support to view and download user’s guides, how-to and troubleshooting articles, software and more. Training Visit www.smarttech.com/trainingcenter for training materials and information about our training services. Technical Support If you experience difficulty with your SMART product, please contact your local reseller before contacting SMART Technical Support.

  • Page 76: Warranty

    Warranty Product warranty is governed by the terms and conditions of SMART’s “Limited Equipment Warranty” that shipped with the SMART product at the time of purchase. Customer Support 99-00915-20 B0...
  • Page 77 Connecting peripheral audio-visual devices, 26 Projector settings, 31 Automatically switching source inputs, 30 Hardware environmental compliance, 63 Batteries, 63 Before installing your SMART board 600i3, 9 Important Information, i Before installing your system Installing Environmental requirements, 8 Adjusting keystone alignment, 10...
  • Page 78 Image adjustment options, 31 Cable, 16 Selecting an input, 27 Securing the pen tray to its brackets, 17 Starting up your SMART Board 600i3 interactive Securing the pen tray to the interactive whiteboard, 7, whiteboard system, 27 Using the remote control, 27, 28...
  • Page 80 SMART Technologies 3636 Research Road NW Calgary, AB T2L 1Y1 CANADA www.smarttech.com/support www.smarttech.com/contactsupport Support +1.403.228.5940 Toll Free 1.866.518.6791 (U.S./Canada) 99-00915-20 REV B0 *99-00915-20 A0*...
