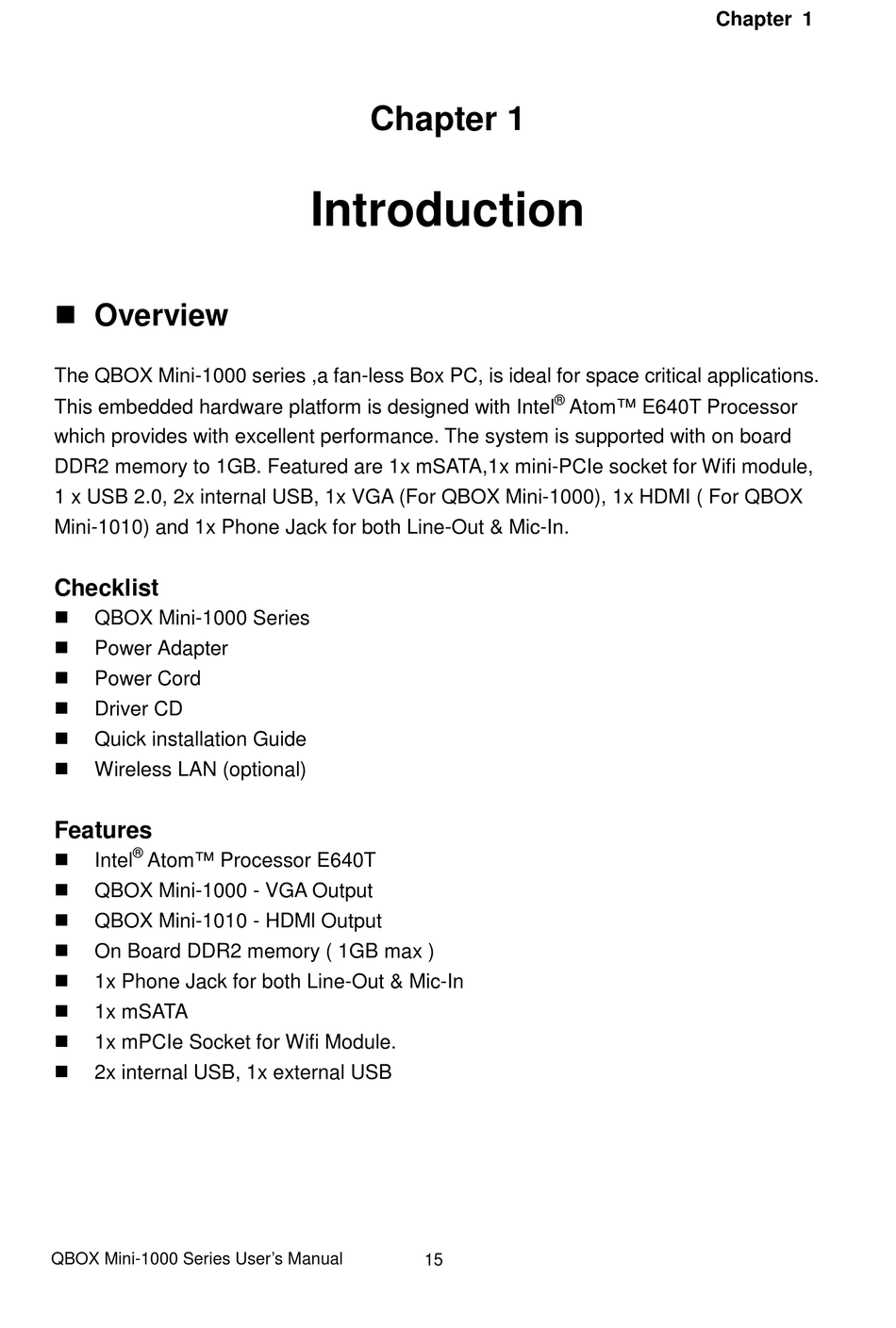

 Overview
The QBOX Mini-1000 series ,a fan-less Box PC, is ideal for space critical applications.
This embedded hardware platform is designed with Intel
which provides with excellent performance. The system is supported with on board
DDR2 memory to 1GB. Featured are 1x mSATA,1x mini-PCIe socket for Wifi module,
1 x USB 2.0, 2x internal USB, 1x VGA (For QBOX Mini-1000), 1x HDMI ( For QBOX
Mini-1010) and 1x Phone Jack for both Line-Out & Mic-In.
Checklist

QBOX Mini-1000 Series

Power Adapter

Power Cord

Driver CD

Quick installation Guide

Wireless LAN (optional)
Features
®

Intel Atom™ Processor E640T

QBOX Mini-1000 - VGA Output

QBOX Mini-1010 - HDMl Output

On Board DDR2 memory ( 1GB max )

1x Phone Jack for both Line-Out & Mic-In

1x mSATA

1x mPCIe Socket for Wifi Module.

2x internal USB, 1x external USB
QBOX Mini-1000 Series User's Manual
Chapter 1
Introduction
15
Chapter 1
®
Atom™ E640T Processor
