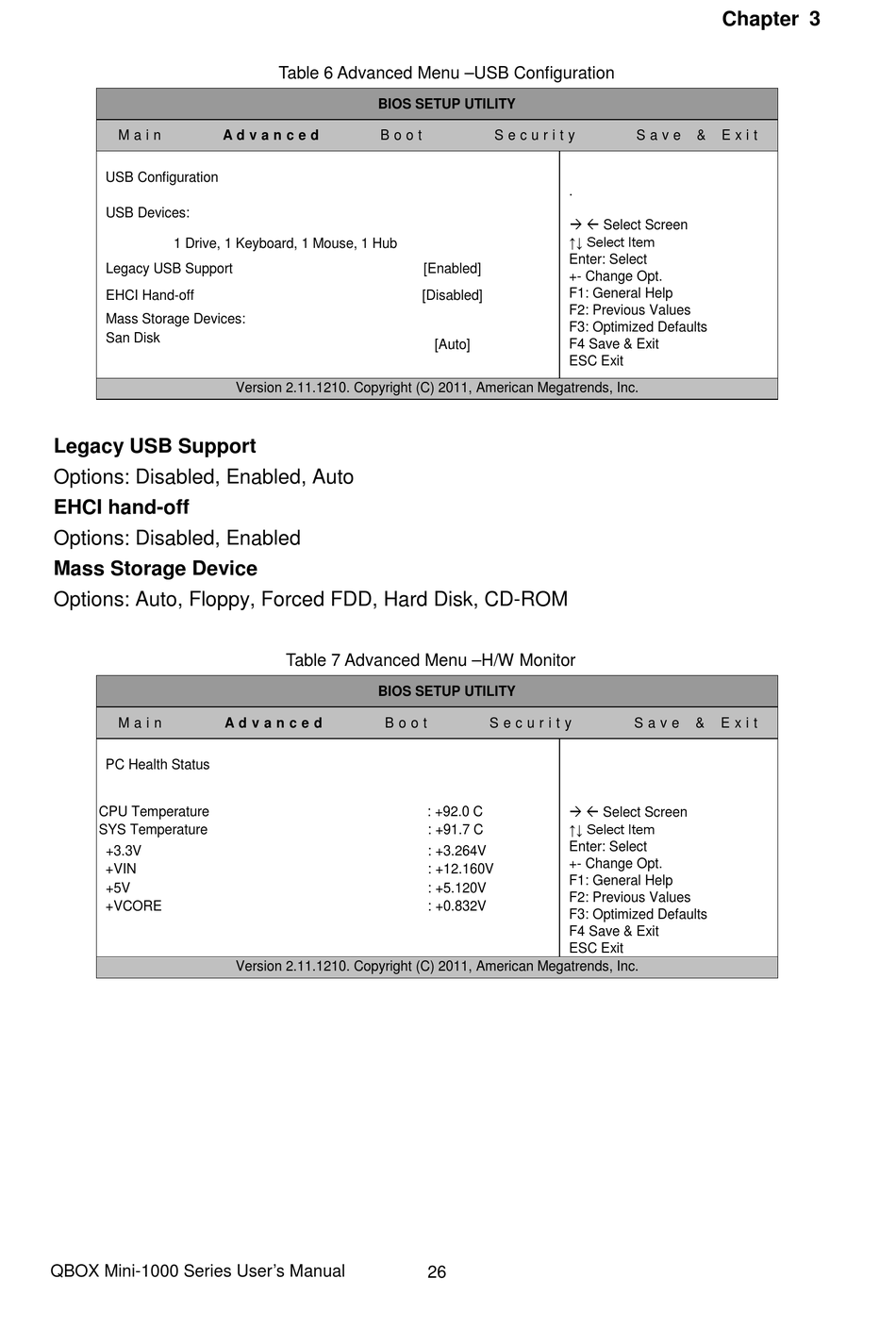

Table 6 Advanced Menu -Usb Configuration; Table 7 Advanced Menu -H/W Monitor - Quanmax QBox Mini-1000 Series User Manual

M a i n
USB Configuration
USB Devices:
1 Drive, 1 Keyboard, 1 Mouse, 1 Hub
Legacy USB Support
EHCI Hand-off
Mass Storage Devices:
San Disk
Legacy USB Support
Options: Disabled, Enabled, Auto
EHCI hand-off
Options: Disabled, Enabled
Mass Storage Device
Options: Auto, Floppy, Forced FDD, Hard Disk, CD-ROM
M a i n
PC Health Status
CPU Temperature
SYS Temperature
+3.3V
+VIN
+5V
+VCORE
QBOX Mini-1000 Series User's Manual
Table 6 Advanced Menu –USB Configuration
BIOS SETUP UTILITY
A d v a n c e d B o o t
Version 2.11.1210. Copyright (C) 2011, American Megatrends, Inc.
Table 7 Advanced Menu –H/W Monitor
BIOS SETUP UTILITY
A d v a n c e d B o o t
Version 2.11.1210. Copyright (C) 2011, American Megatrends, Inc.
S e c u r i t y
.
  Select Screen
↑↓ Select Item
Enter: Select
[Enabled]
+- Change Opt.
F1: General Help
[Disabled]
F2: Previous Values
F3: Optimized Defaults
[Auto] F4 Save & Exit
ESC Exit
S e c u r i t y
  Select Screen
: +92.0 C
↑↓ Select Item
: +91.7 C
Enter: Select
: +3.264V
+- Change Opt.
: +12.160V
F1: General Help
: +5.120V
F2: Previous Values
: +0.832V
F3: Optimized Defaults
F4 Save & Exit
ESC Exit
