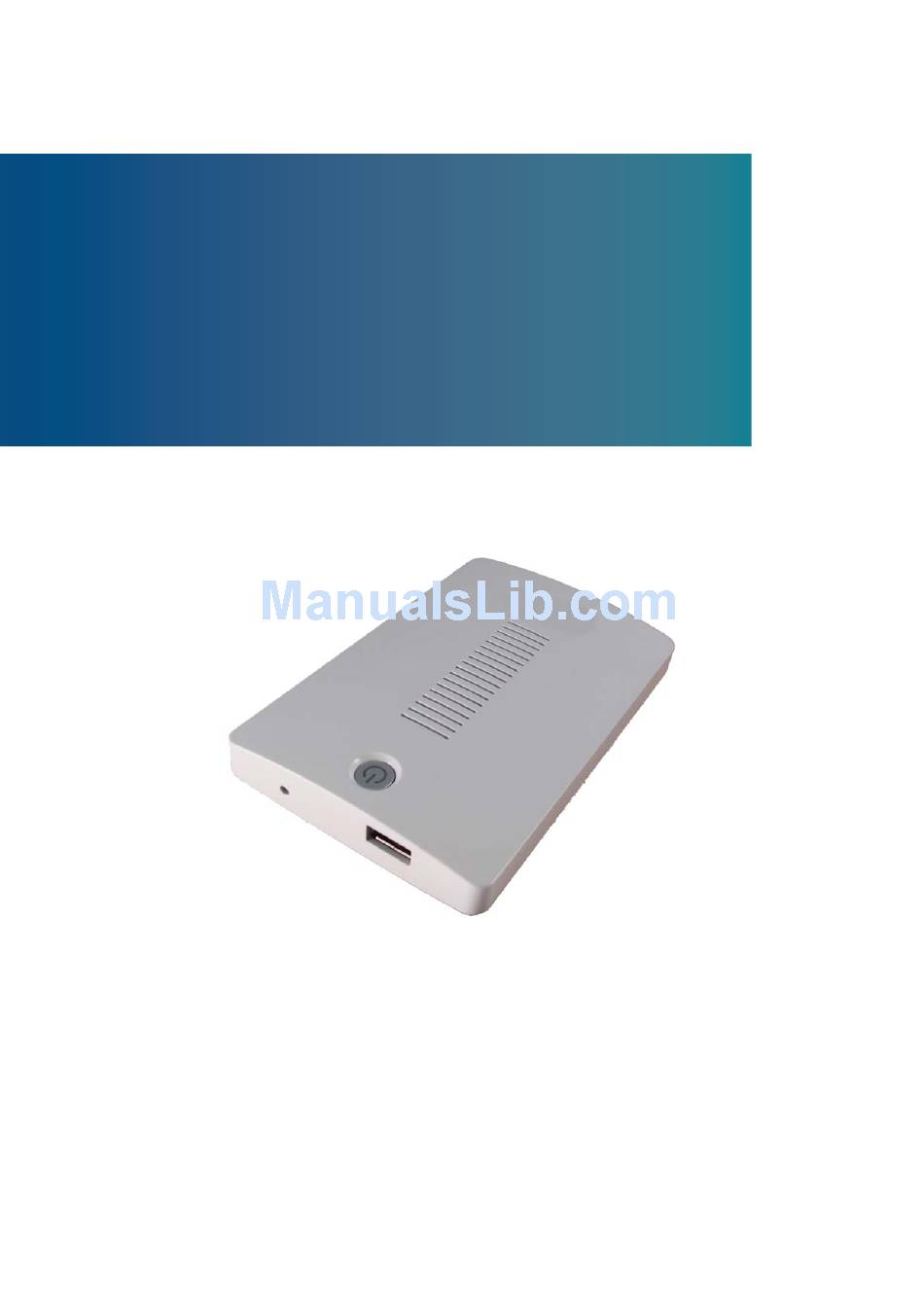

- Page 1 QBOX Mini-1000 Series ® Fanless Box PC with Intel Atom™ E640T Processor User’s Guide QBOX Mini-1000 Series User’s Manual...
- Page 2 © 2012 Quanmax Inc. All rights reserved. The information in this user’s guide is provided for reference only. Quanmax does not assume any liability arising out of the application or use of the information or products described herein. This user’s guide may contain or reference information and products protected by copyrights or patents and does not convey any license under the patent rights of Quanmax, nor the rights of others.
-
Page 3: Table Of Contents
Chapter 3 AMI BIOS Setup ..................22 Overview ....................22 Main Menu ....................23 Advanced Menu ..................24 Boot Menu ....................28 Security Menu .................... 29 Save & Exit Menu ..................29 Chapter 4 Driver Installation .................. 31 QBOX Mini-1000 Series User’s Manual... -
Page 4: Figures
Figures Figures Figure 1 I/Os ....................17 Figure 2 Mechanical Dimensions ............... 19 Figure 3 VGA/HDMI ................... 20 Figure 4 Connect USB mouse & keyboard ..........20 Figure 5 Turning on the system ..............21 QBOX Mini-1000 Series User’s Manual... -
Page 5: Tables
Tables Tables Table 1 QBOX Mini-1000 Series Specification ........... 16 Table 2 BIOS Main Menu ................23 Table 3 Advanced Menu ................24 Table 4 Advanced Menu – ACPI Settings ........... 24 Table 5 Advanced Menu – CPU Configuration ........... 25 Table 6 Advanced Menu –USB Configuration .......... -
Page 6: Safety Instructions
Use extreme caution when installing or removing components. Refer to the installation instructions in this user’s guide for precautions and procedures. If you have any questions, please contact Quanmax Post-Sales Technical Support. Access can only be gained by service persons or by users who have been instructed about the reasons for the restrictions applied to the location and about any precautions that shall be taken;... -
Page 7: When Working Inside A Computer
Also, before connecting a cable, make sure both connectors are correctly oriented and aligned. CAUTION Do not attempt to service the system yourself except as explained in this user’s guide. Follow installation and troubleshooting instructions closely. QBOX Mini-1000 Series User’s Manual... -
Page 8: Preventing Electrostatic Discharge
Static electricity can harm system boards. Perform service at an ESD workstation and follow proper ESD procedure to reduce the risk of damage to components. Quanmax strongly encourages you to follow proper ESD procedure, which can include wrist straps and smocks, when servicing equipment. -
Page 9: Instructions For Lithium Battery
Do not dispose of lithium batteries in domestic waste. Dispose of the battery according to the local regulations dealing with the disposal of these special materials (e.g. to the collecting points for disposal of batteries) QBOX Mini-1000 Series User’s Manual... -
Page 10: Preface
Remove all items from the box. If any items listed on the purchase order are missing, notify Quanmax customer service immediately. Inspect the product for damage. If there is damage, notify Quanmax customer service immediately. Refer to “Warranty Policy” for the return procedure. -
Page 11: Warranty Policy
Quanmax or its authorized agent; or if the failure is caused by accident, acts of God, or other causes beyond the control of Quanmax or the manufacturer. Neglect, misuse, and abuse shall include any installation, operation, or maintenance of the product other than in accordance with the user’s guide. -
Page 12: Maintaining Your Computer
Quanmax. Limitation of Liability In no event shall Quanmax be liable for any defect in hardware, software, loss, or inadequacy of data of any kind, or for any direct, indirect, incidental, or consequential damages in connection with or arising out of the performance or use of any product furnished hereunder. -
Page 13: Power Protection
Line conditioners keep a system’s AC power source voltage at a fairly constant level and, therefore, can handle brownouts. Because of this added protection, line conditioners cost more than surge protectors. However, line conditioners cannot protect against a complete loss of power. QBOX Mini-1000 Series User’s Manual... - Page 14 Surge protectors should be used with all UPS systems, and the UPS system should be Underwriters Laboratories (UL) safety approved. QBOX Mini-1000 Series User’s Manual...
-
Page 15: Chapter 1 Introduction

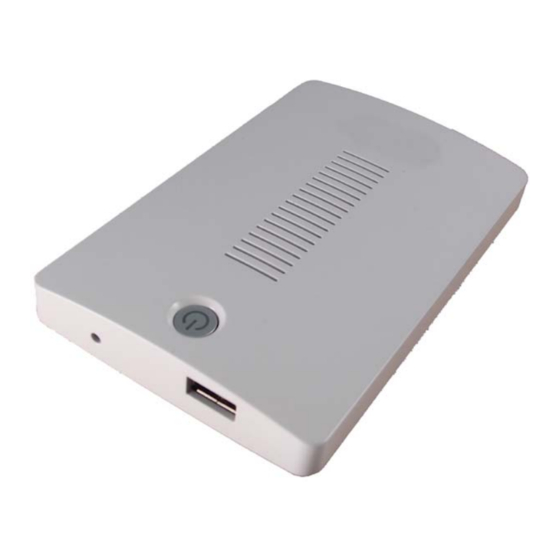

Chapter 1 Chapter 1 Introduction Overview The QBOX Mini-1000 series ,a fan-less Box PC, is ideal for space critical applications. ® This embedded hardware platform is designed with Intel Atom™ E640T Processor which provides with excellent performance. The system is supported with on board DDR2 memory to 1GB. -
Page 16: Product Specifications
Power DC 12V Input Environment Operating: 0°C to 40°C Dimensions 130.11 x 83.06 x19.2 mm (D x W x H) Weight 174. 4 (g) Certifications CE, FCC Class A Table 1 QBOX Mini-1000 Series Specification QBOX Mini-1000 Series User’s Manual... -
Page 17: System Tour
Chapter 1 System Tour Refer to the figure below to identify the components of the system. QBOX Mini-1000 Series I/Os Figure 1 I/Os QBOX Mini-1000 Series User’s Manual... - Page 18 PC, always use the supplied power adapter. ( For QBOX Mini-1000 ) D-Sub 15 pin VGA connector for display output HDMI ( For QBOX Mini-1010 ) HDMI connector for display output Reset Button 1x reset button for clear CMOS. QBOX Mini-1000 Series User’s Manual...
-
Page 19: Mechanical Dimensions
Chapter 1 Mechanical Dimensions QBOX Mini-1000 : QBOX Mini-1010 : 130.11 x 83.06 x19.2 mm (D x W x H) Figure 2 Mechanical Dimensions QBOX Mini-1000 Series User’s Manual... -
Page 20: Chapter 2 Getting Started
Figure 3 VGA/HDMI Connect USB mouse & keyboard Your QBOX Mini-1000 series does not come with a keyboard and mouse connector, but you can use any USB keyboard or mouse to connect with your computer. Figure 4 Connect USB mouse & keyboard NOTE Using a third-party USB mouse or keyboard may require software drivers. -
Page 21: Figure 5 Turning On The System
Connect the power cable to the power adapter Connect the power cable to a power outlet Press the power button to turn on the system DC Jack Power switch Figure 5 Turning on the system QBOX Mini-1000 Series User’s Manual... -
Page 22: Chapter 3 Ami Bios Setup
This chapter provides a description of the AMI BIOS. The BIOS setup menus and available selections may vary from those of your product. For specific information on the BIOS for your product, please contact Quanmax. NOTE: The BIOS menus and selections for your product may vary from those in this chapter. -
Page 23: Main Menu
F2: Previous Values Total Size 1024 MB (DDR2) F3: Optimized Defaults Frequency 800 MHz F4 Save & Exit System date [Wed 09/19/2012] ESC Exit System time [13:38:27] Version 2.11.1210. Copyright (C) 2011, American Megatrends, Inc. QBOX Mini-1000 Series User’s Manual... -
Page 24: Advanced Menu
F4 Save & Exit ESC Exit Version 2.11.1210. Copyright (C) 2011, American Megatrends, Inc. Enable ACPI Auto Configuration Options: Disabled, Enabled Enable Hibernation Options: Disabled, Enabled ACPI Sleep State Options: Suspend Disabled, S3 (Suspend to RAM) QBOX Mini-1000 Series User’s Manual... -
Page 25: Table 5 Advanced Menu - Cpu Configuration
Execute Disable Bit Options: Disabled, Enabled Limit CPUID Maximum Options: Disabled, Enabled Intel Virtualization Technology Options: Disabled, Enabled C-States Options: Disabled, Enabled Enhanced C1 Options: Disabled, Enabled Enhanced C2 Options: Disabled, Enabled Enhanced C3 Options: Disabled, Enabled QBOX Mini-1000 Series User’s Manual... -
Page 26: Table 6 Advanced Menu -Usb Configuration
: +3.264V +- Change Opt. +VIN : +12.160V F1: General Help : +5.120V F2: Previous Values +VCORE : +0.832V F3: Optimized Defaults F4 Save & Exit ESC Exit Version 2.11.1210. Copyright (C) 2011, American Megatrends, Inc. QBOX Mini-1000 Series User’s Manual... -
Page 27: Table 6 Advanced Menu -Jmb36X Ata Controller Configuration
B o o t S e c u r i t y S a v e & E x i t [Disabled ] WDT Function Version 2.11.1210. Copyright (C) 2011, American Megatrends, Inc. WDT Function Options: Disabled, Enabled QBOX Mini-1000 Series User’s Manual... -
Page 28: Boot Menu
Disabled Hard Drive BBS Priorities ■ Boot Option #1 【SATA PM: SanDisk…】 Options: SATA PM: SanDisk SSD P4 8GB SanDisk Disabled ■ Boot Option #2 【SanDisk】 Options: SATA PM: SanDisk SSD P4 8GB SanDisk Disabled QBOX Mini-1000 Series User’s Manual... -
Page 29: Security Menu
F2: Previous Values F3: Optimized Defaults Restore Defaults F4 Save & Exit ESC Exit Boot Override SATA PM : SanDisk SSD P4 8GB SanDisk UEFI : SanDisk Version 2.11.1210. Copyright (C) 2011, American Megatrends, Inc. QBOX Mini-1000 Series User’s Manual... - Page 30 Load Optimal Default values for all the setup values. This option allows you to load failsafe default values for each of the parameters on the Setup menus, which will provide the most stable performance settings. The F8 key can be used for this operation. QBOX Mini-1000 Series User’s Manual...
-
Page 31: Chapter 4 Driver Installation
After you have finished assembling your system and connected the appropriate power source, power it up using the power supply and install the desired operating system. You can download the drivers for the QBOX Mini-1000 series from the Quanmax website at www.quanmax.com and install as instructed there.
