 Product Specifications
CPU Support
Memory
BIOS
Display
Storage
Audio
Expansion
USB
Cooling
Switch & LED
Watchdog Timer
Hardware Monitor
Real Time Clock
Power
Environment
Dimensions
Weight
Certifications
QBOX Mini-1000 Series User's Manual
®
Intel Atom™ E640T (1GHz, 512KB Cache (TDP: 3.3W) )
On board DDR2 Memory ( 1GB max )
AMI uEFI BIOS
1x 8Mb SPI flash ROM
QBOX Mini 1000 : VGA ( Chrontel CH7317B )
QBOX Mini 1010 : HDMI ( Chrontel CH7315B )
1x mSATA
Realtek ALC662 HD Codec
1x Phone Jack for both Line-Out & Mic-In
1 x Mini PCI-Express Socket for WiFi module
2x internal USB
1x external USB
Fanless
1x Power On/Off Button ( With Power LED)
1x Clear CMOS Switch
®
Intel Atom™ E640T processor integrated WDT 1us to 10mins selectable
Temperature & Voltage Monitoring
ACPI 3.0 supported
®
Intel Atom™ E640T processor integrated RTC
DC 12V Input
Operating: 0°C to 40°C
130.11 x 83.06 x19.2 mm (D x W x H)
174. 4 (g)
CE, FCC Class A

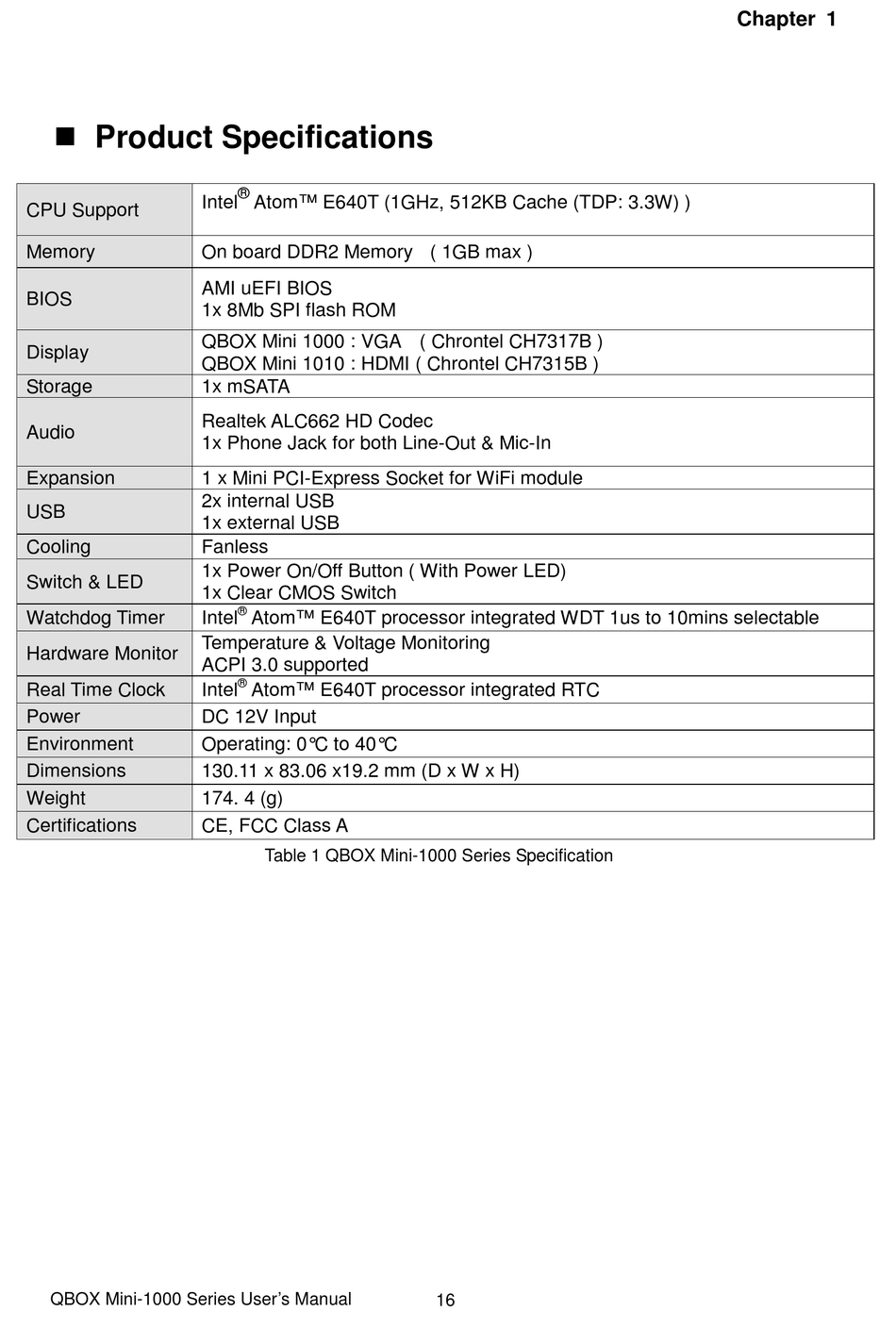

Table 1 QBOX Mini-1000 Series Specification
