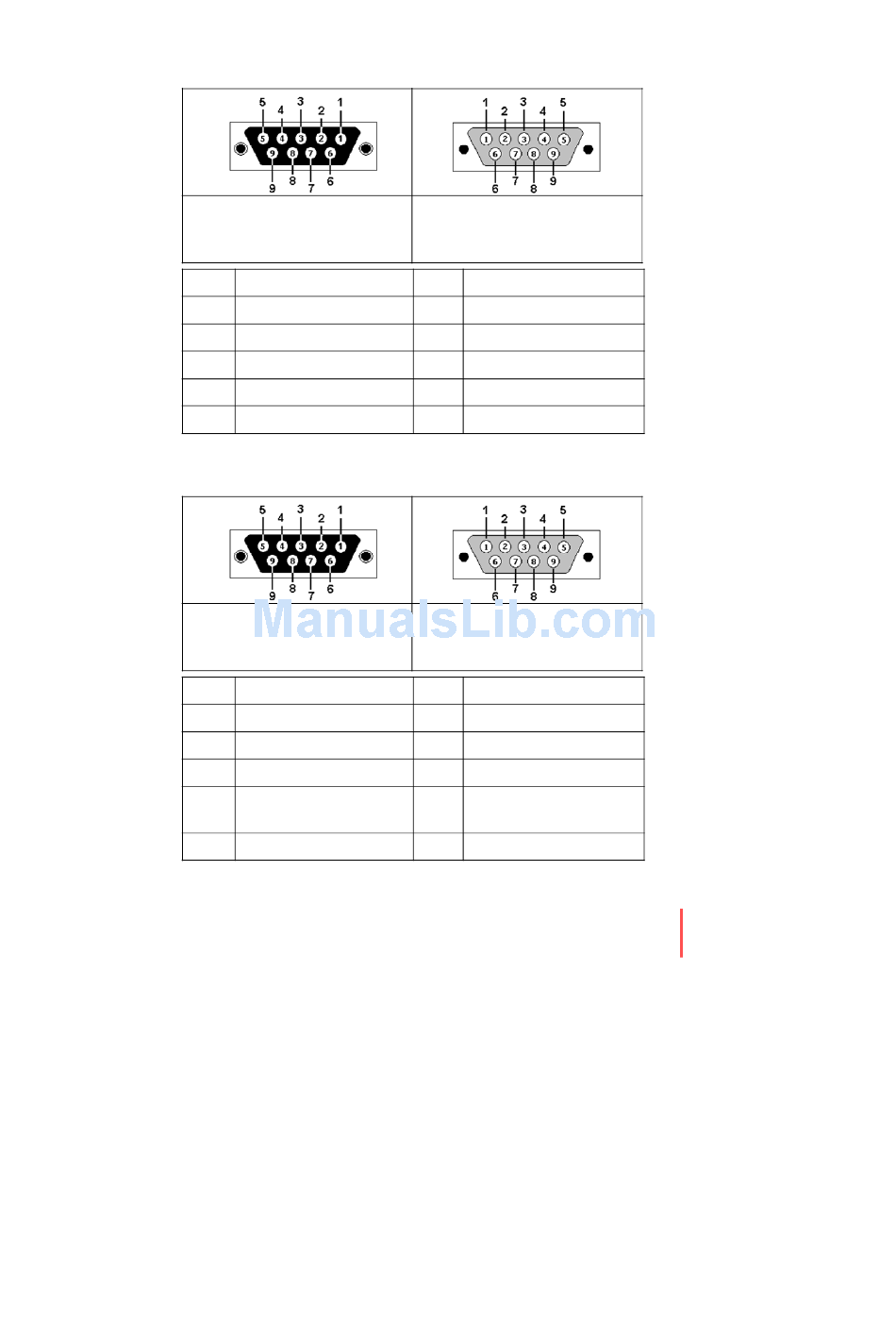

ACU Connector Guide

Synchro/SBS Connector
ACU Synchro/ SBS Port
D-Sub 9pin Female
Pin Signal
1 SBS_COM
2 SBS_B
3 SYNCHRO_R2
4 SYNCHRO_R3
5 SYNCHRO_S1
Control Connector
ACU Consol Port
D-Sub 9pin Female
Pin Signal
1 GND
2 GPS OUT +
3 MODEM_LOCK
MODEM_CTRL1
4
(TX MUTE)
5 GPS IN +
D-Sub 9pin Male connector
Supplied Component (Ref. page 7)
Pin Signal
6 SBS_C
7 SBS_A
8 SYNCHRO_R1
9 SYNCHRO_S2
D-Sub 9pin Male connector
Supplied Component (Ref. page 7)
Pin Signal
6 GPS OUT -
7 MODEM_SIGNAL_IN
8 MODEM _CTRL2
9 GPS IN -
Installing the ACU
