Intellian V110 User Manual page 21

Marine satellite communication antenna system
Hide thumbs
Table of Contents

Advertisement

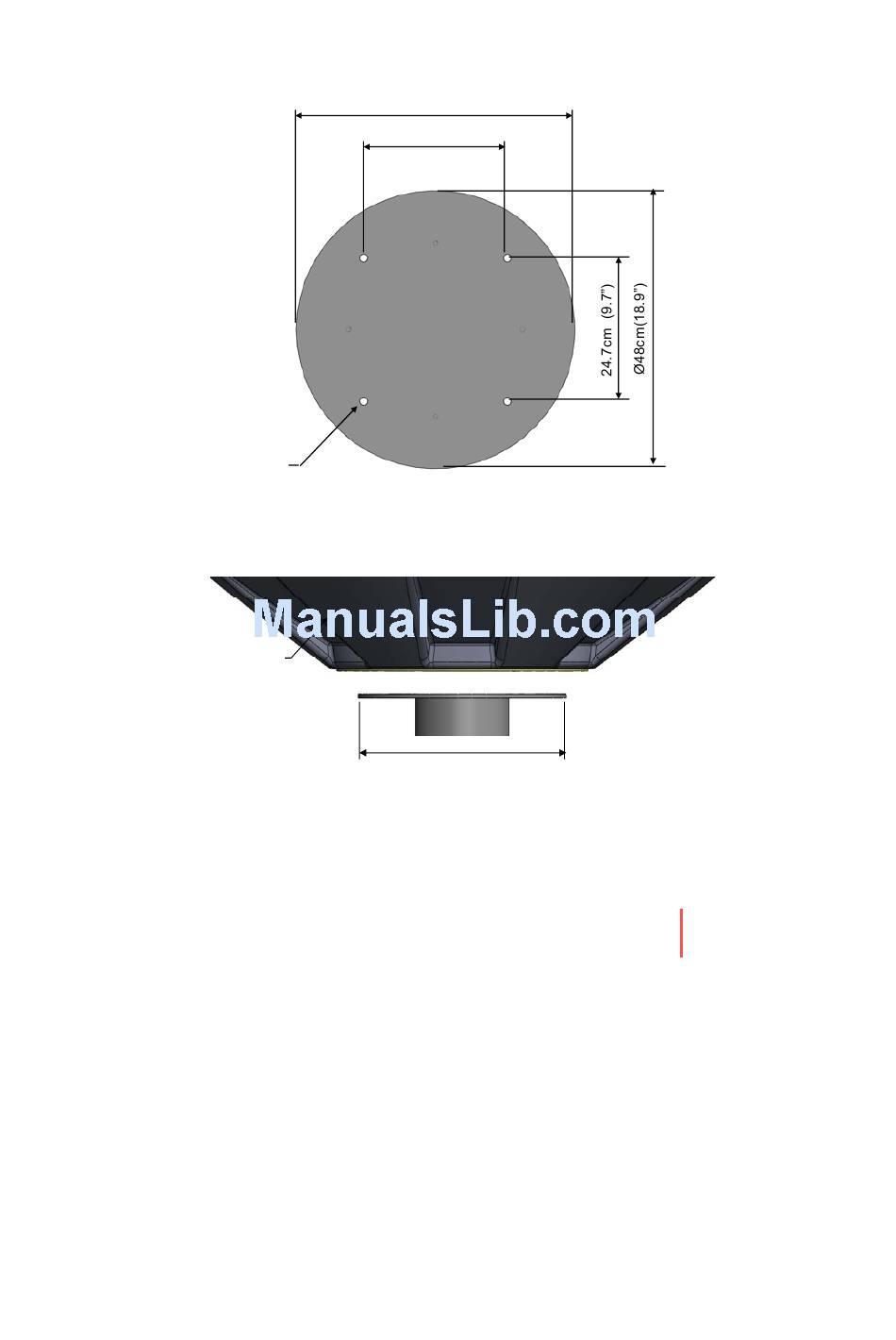

Antenna Mounting Hole Pattern
The mounting holes must be in the exact same place as shown in the
diagram below.
ø48cm (18.9")
24.7 cm (9.7")
4-Ø14
HOLES
Figure 13. Dimension of Mounting Hole Pattern
V110 Radome
Bottom
ø48cm (18.9")
Figure 14. Dimension of Mounting Plate
Installing the Antenna
15
