Installing the Antenna

The components of the Intellian v110 have been designed to be
modular so that it is suitable for simple installation on all types of
vessels.

System Components

The Intellian v110 consists of two major units, antenna assembly unit
and antenna control unit.
Antenna Unit
The antenna unit includes an antenna pedestal inside a radome
assembly unit. The pedestal consists of a satellite antenna main dish with
RF components mounted on a stabilized pedestal. The radome protects
the antenna pedestal assembly unit from the severe marine environment.

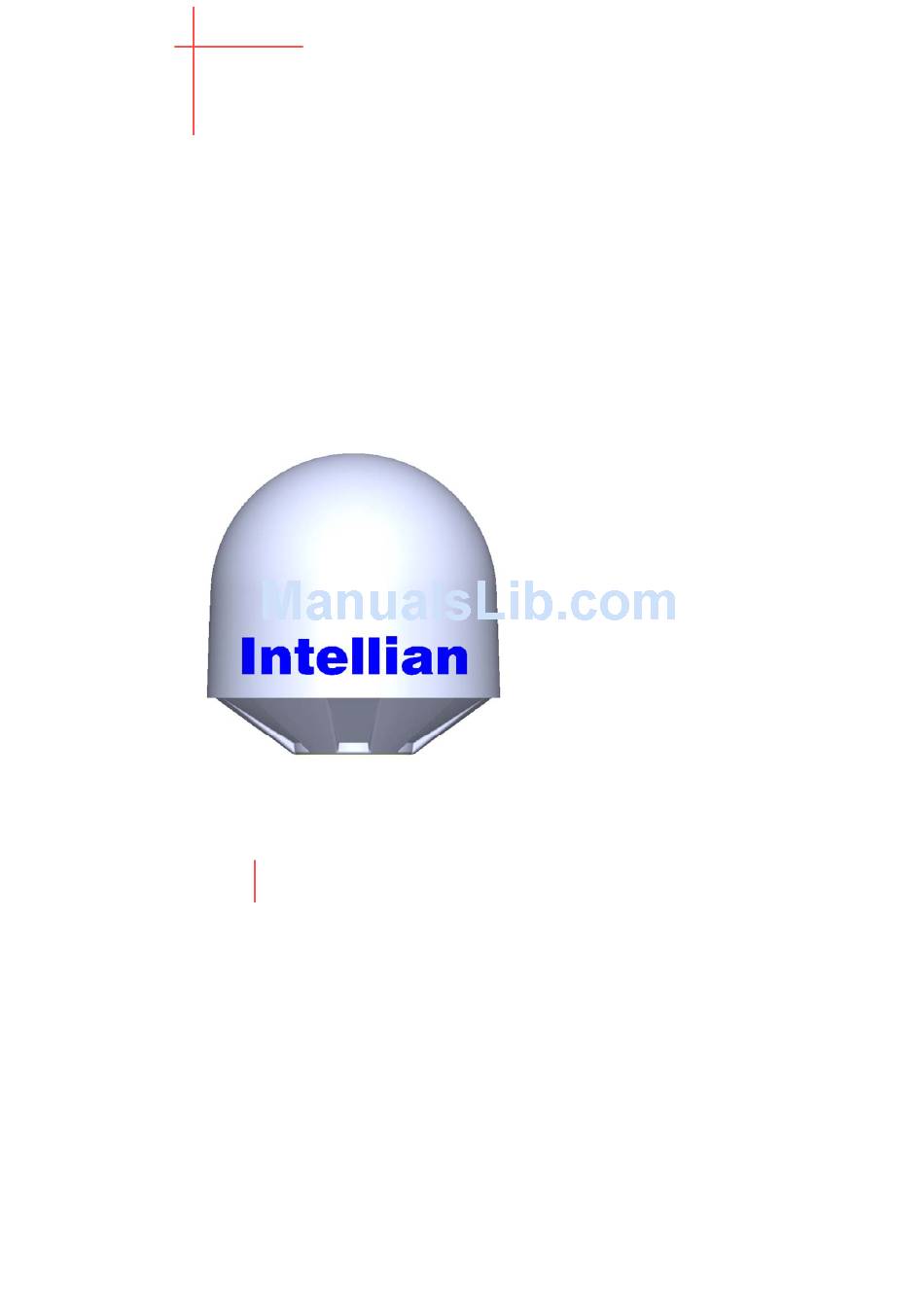

Figure 2. Antenna Unit
