Installing the ACU

ACU Dimensions

20cm (7.9") 13cm (5.1")

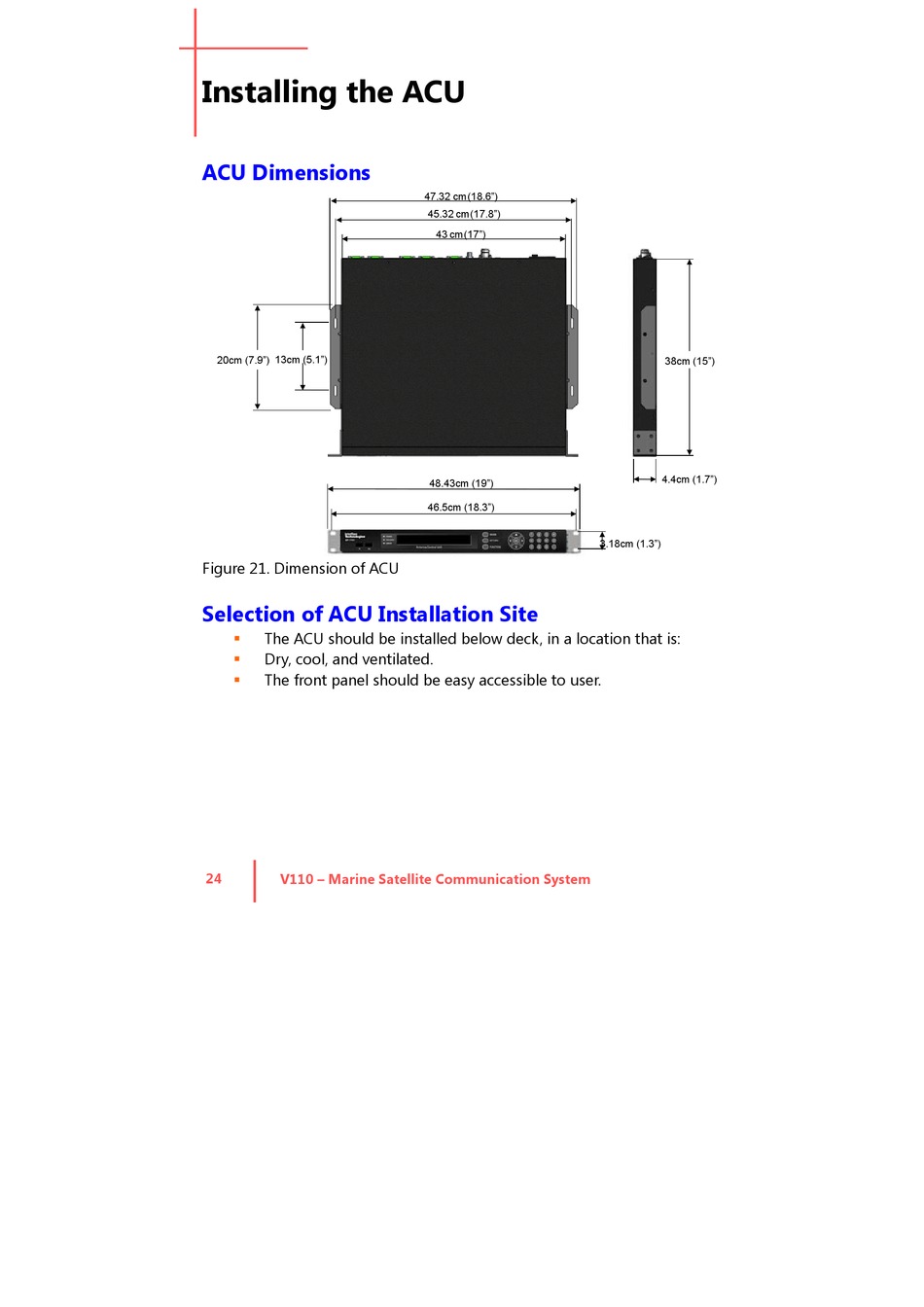

Figure 21. Dimension of ACU

Selection of ACU Installation Site

The ACU should be installed below deck, in a location that is:

Dry, cool, and ventilated.

The front panel should be easy accessible to user.

24 V110 – Marine Satellite Communication System
47.32 cm(18.6")
45.32 cm(17.8")
43 cm(17")
48.43cm (19")
46.5cm (18.3")
38cm (15")
4.4cm (1.7")
3.18cm (1.3")
