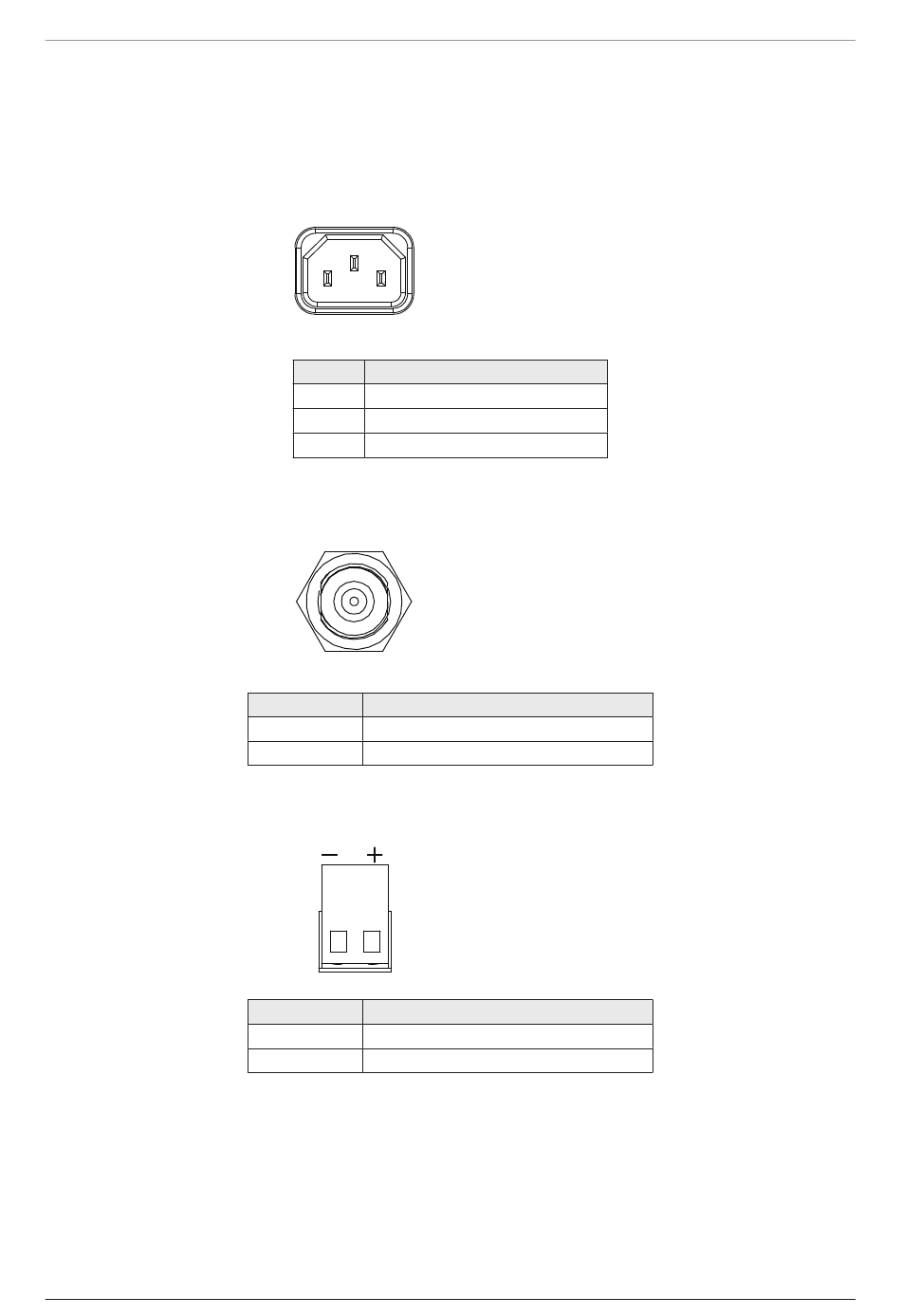

6.6.3 ACU Connector Pinout Guide

Reference the following connector pinout information for the connection ports of the ACU.
Power Connector
Antenna Connector
HEADING (NMEA 0183) Connector
2
1 3
Pin
1 LIVE
2 GND
3 NEUTRAL
Conductor
Inner DATA, POWER
Outer GND
Conductor
- HEADING GND
+ HEADING IN
IEC 320 C14 Plug Male
Signal
RF F Type Female
Function
2-Pin Terminal Block
Function
41
Installing Below Deck Unit
