connect to the Internet or Intranet.
TX Mute: A transmit inhibit output from the ACU will disable/mute
the modem transmit via a voltage whenever the antenna is blocked,
searching, or is mis-pointed 0.5 degrees from peak satellite position.
This setting can be varied from modem to modem. (Refer to the modem
manual for details.)
EXT Lock: is referred that modem lock output from the modem
provides a logic input via a voltage to the ACU to identify when it is on
the correct satellite. This setting can be varied from modem to modem.
(Refer to the modem manual for details.)

Main Menu

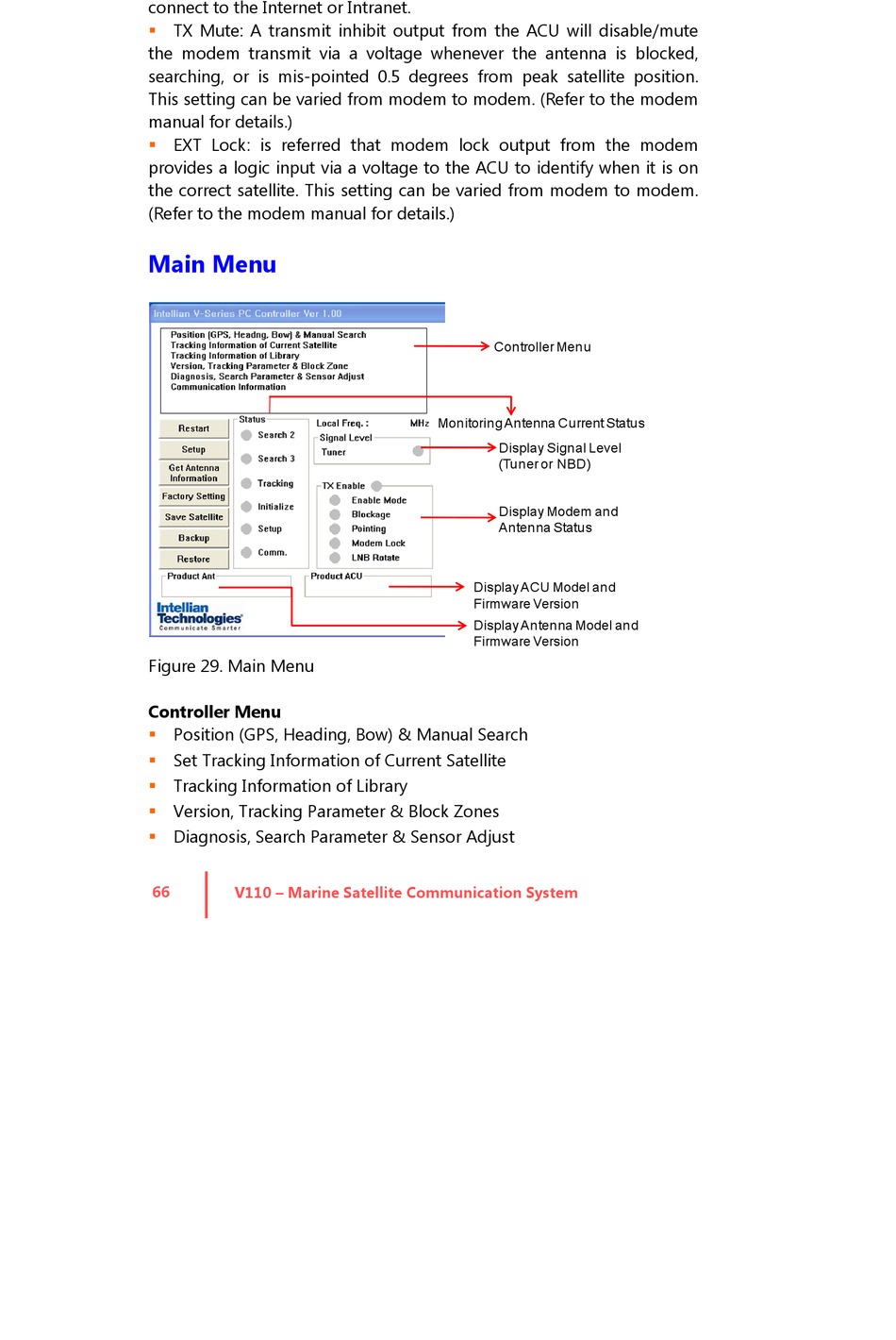

Figure 29. Main Menu
Controller Menu
Position (GPS, Heading, Bow) & Manual Search
Set Tracking Information of Current Satellite
Tracking Information of Library
Version, Tracking Parameter & Block Zones
Diagnosis, Search Parameter & Sensor Adjust
66 V110 – Marine Satellite Communication System
Controller Menu
Monitoring Antenna Current Status
Display Signal Level
(Tuner or NBD)
Display Modem and
Antenna Status
Display ACU Model and
Firmware Version
Display Antenna Model and
Firmware Version
