skew angle when replace the control board, skew potentiometer or belt.
Set Tracking Information of Current Satellite



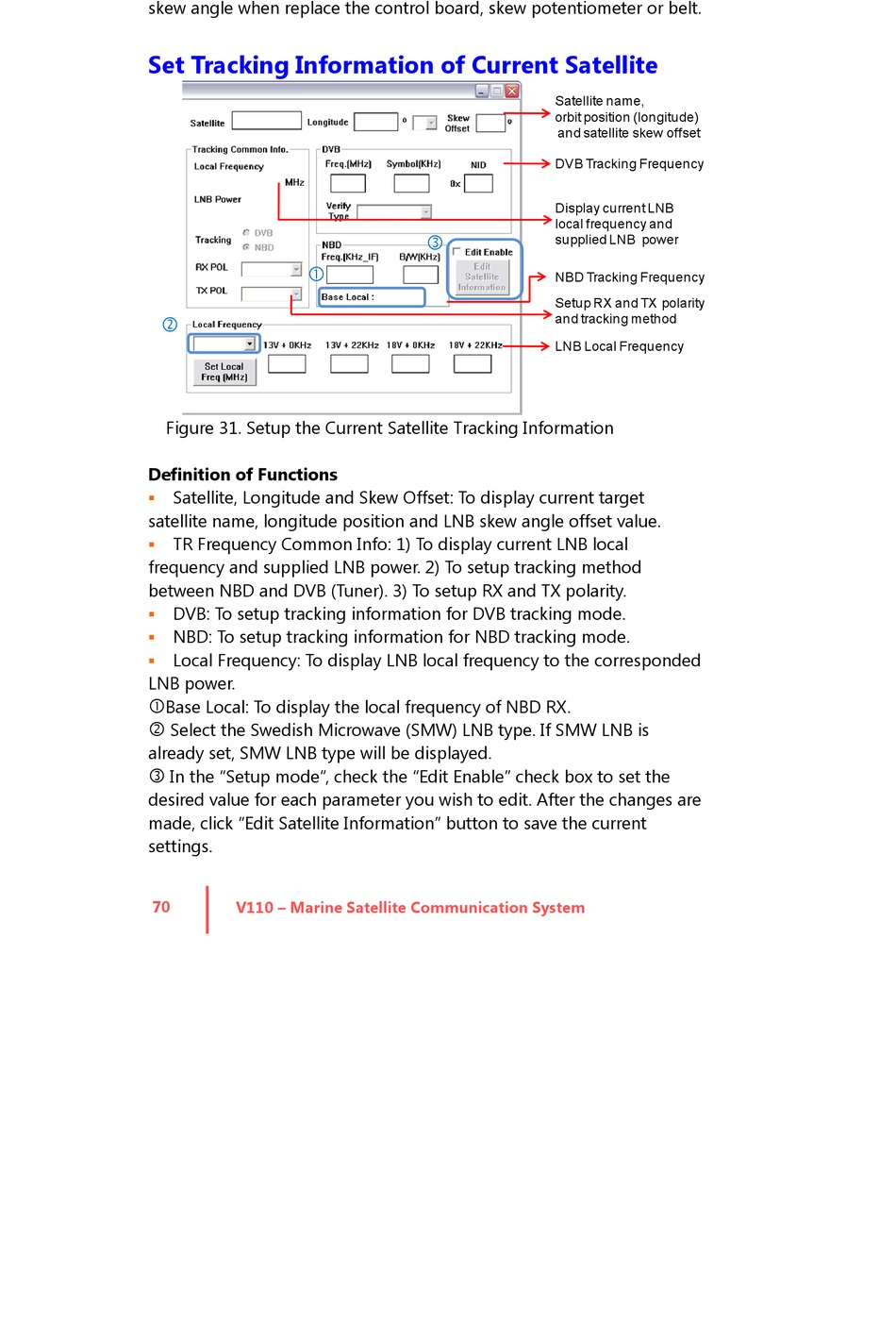

Figure 31. Setup the Current Satellite Tracking Information
Definition of Functions
Satellite, Longitude and Skew Offset: To display current target

satellite name, longitude position and LNB skew angle offset value.
TR Frequency Common Info: 1) To display current LNB local


frequency and supplied LNB power. 2) To setup tracking method
between NBD and DVB (Tuner). 3) To setup RX and TX polarity.
DVB: To setup tracking information for DVB tracking mode.

NBD: To setup tracking information for NBD tracking mode.

Local Frequency: To display LNB local frequency to the corresponded

LNB power.
Base Local: To display the local frequency of NBD RX.

Select the Swedish Microwave (SMW) LNB type. If SMW LNB is

already set, SMW LNB type will be displayed.
In the "Setup mode", check the "Edit Enable" check box to set the

desired value for each parameter you wish to edit. After the changes are
made, click "Edit Satellite Information" button to save the current
settings.
70 V110 – Marine Satellite Communication System
Satellite name,
orbit position (longitude)
and satellite skew offset
DVB Tracking Frequency
Display current LNB
local frequency and

supplied LNB power
NBD Tracking Frequency
Setup RX and TX polarity
and tracking method
LNB Local Frequency
