Version, Tracking Parameter & Block Zone
It is not recommended for a novice at satellite service to use this mode.
Consult Intellian for changing antenna parameters.
Product Information
Display antenna and antenna control unit firmware versions
and library version.

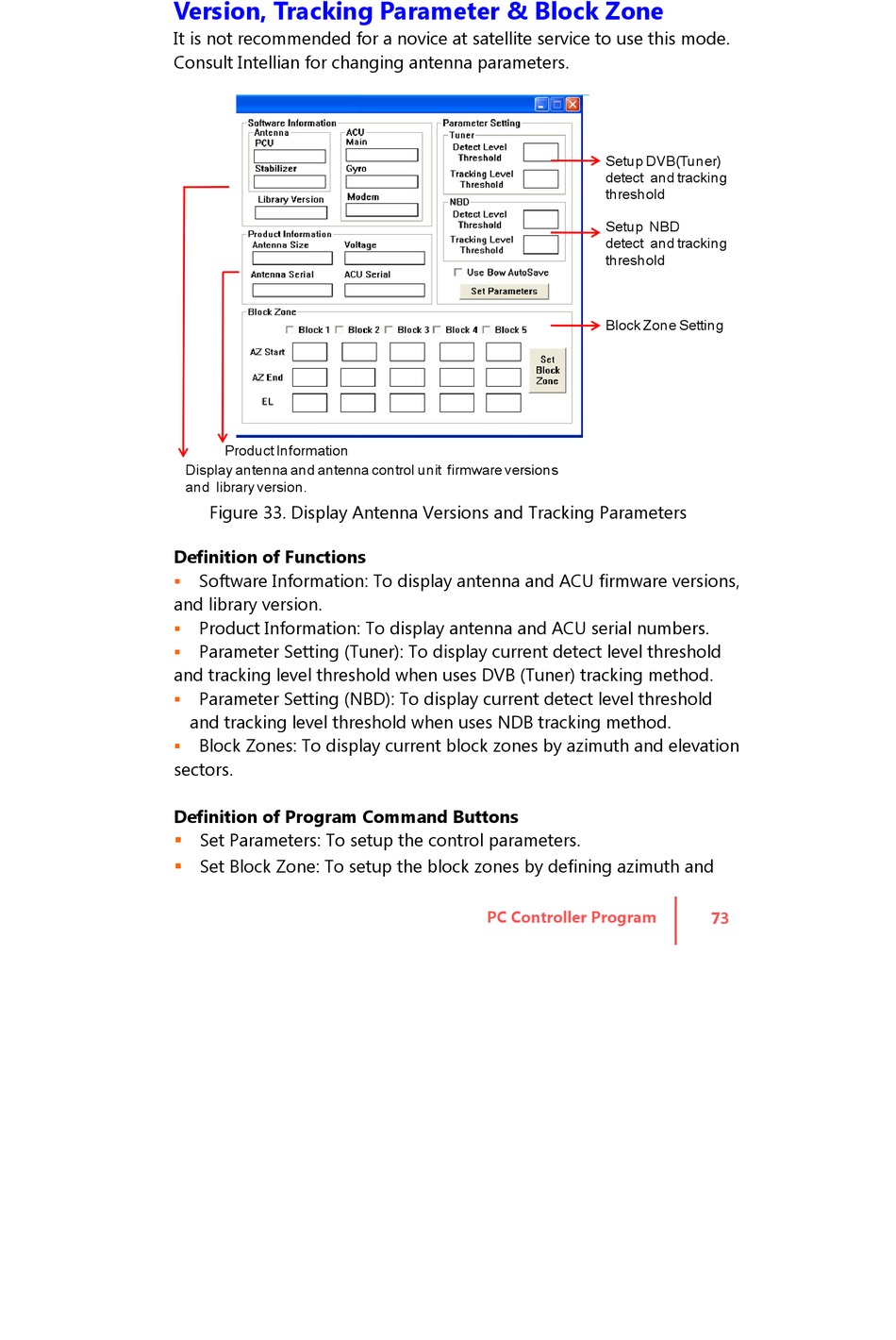

Figure 33. Display Antenna Versions and Tracking Parameters
Definition of Functions
Software Information: To display antenna and ACU firmware versions,

and library version.
Product Information: To display antenna and ACU serial numbers.

Parameter Setting (Tuner): To display current detect level threshold

and tracking level threshold when uses DVB (Tuner) tracking method.
Parameter Setting (NBD): To display current detect level threshold

and tracking level threshold when uses NDB tracking method.
Block Zones: To display current block zones by azimuth and elevation

sectors.
Definition of Program Command Buttons
Set Parameters: To setup the control parameters.
Set Block Zone: To setup the block zones by defining azimuth and
Setup DVB(Tuner)
detect and tracking
threshold
Setup NBD
detect and tracking
threshold
Block Zone Setting
PC Controller Program
73
