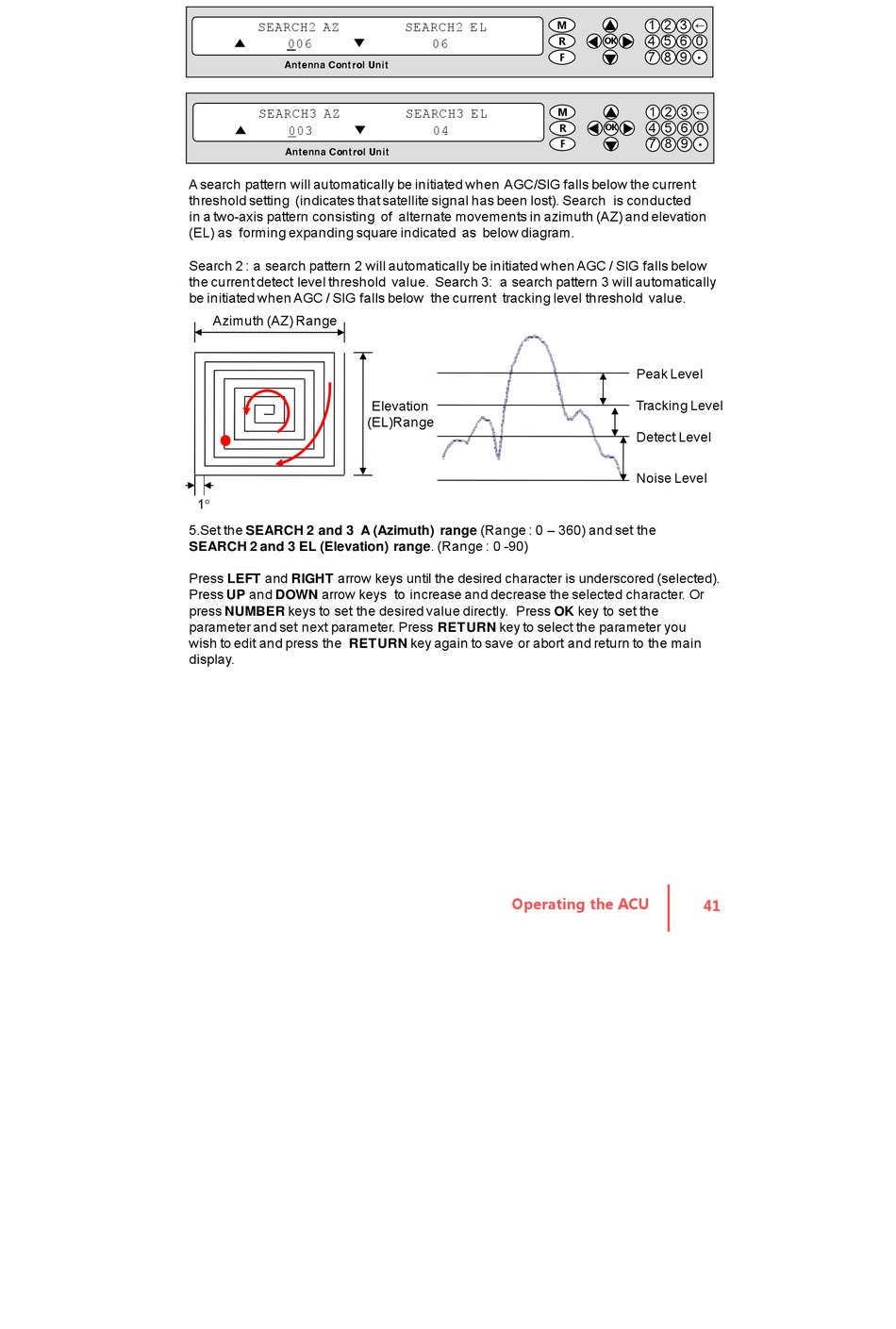

Intellian V110 User Manual page 47

SEARCH2 AZ
▲ ▼
006
Antenna Control Unit
SEARCH3 AZ
▲ ▼
003
Antenna Control Unit
A search pattern will automatically be initiated when AGC/SIG falls below the current
threshold setting (indicates that satellite signal has been lost). Search is conducted
in a two-axis pattern consisting of alternate movements in azimuth (AZ) and elevation
(EL) as forming expanding square indicated as below diagram.
Search 2 : a search pattern 2 will automatically be initiated when AGC / SIG falls below
the current detect level threshold value. Search 3: a search pattern 3 will automatically
be initiated when AGC / SIG falls below the current tracking level threshold value.
Azimuth (AZ) Range
1
5.Set the SEARCH 2 and 3 A (Azimuth) range (Range : 0 – 360) and set the
SEARCH 2 and 3 EL (Elevation) range. (Range : 0 -90)
Press LEFT and RIGHT arrow keys until the desired character is underscored (selected).
Press UP and DOWN arrow keys to increase and decrease the selected character. Or
press NUMBER keys to set the desired value directly. Press OK key to set the
parameter and set next parameter. Press RETURN key to select the parameter you
wish to edit and press the RETURN key again to save or abort and return to the main
display.
SEARCH2 EL
06
SEARCH3 EL
04
Elevation
(EL)Range
Operating the ACU
1 2 3 ←
M
4 5 6 0
R
OK
·
7 8 9
F
1 2 3 ←
M
4 5 6 0
R
OK
·
7 8 9
F
Peak Level
Tracking Level
Detect Level
Noise Level
41
