Description
Slot 1 PCIe3 x16 (8, 4, 2, 1)
1
iLO connector
2
NIC connector 2
3
NIC connector1
4
Torx tool
5
Power supply
6
Serial connector
7
Video connector
8
USB connectors (4)
9
FlexibleLOM slot
10

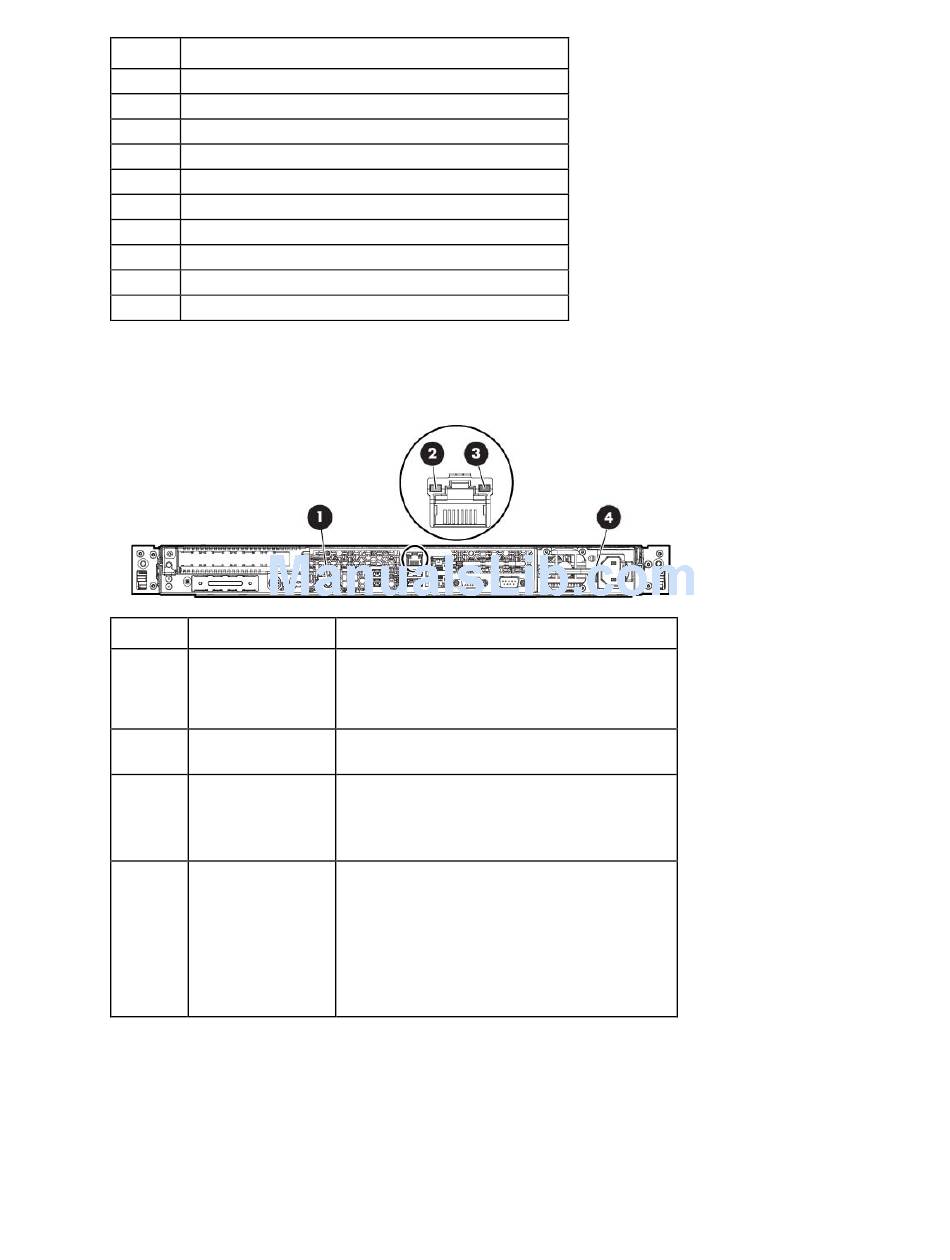

Rear panel LEDs and buttons

Item Description
iLO NIC activity LED Green = Activity exists
1
iLO NIC link LED
2
UID button/LED
3
Power supply LED
4
Status
Flashing green = Activity exists
Off = No activity exists
Green = Link exists
Off = No link exists
Blue = Identification is activated
Flashing blue = System is being managed
remotely
Off = Identification is deactivated
Green = Normal
Off = One or more of the following conditions
exists:
•
AC power unavailable
•
Power supply failed
•
Power supply in standby mode
•
Power supply exceeded current limit
Component identification 10
