Nmi Jumper; Device Numbers - HP ProLiant DL160 Gen8 User Manual

Position
S2
S3
S4
S5
S6
S7
S8
S9
S10
S11
S12
When the system maintenance switch position 6 is set to the On position, the system is prepared to erase all
system configuration settings from both CMOS and NVRAM.
CAUTION:
properly configure the server or data loss could occur.

NMI jumper

The NMI jumper allows administrators to perform a memory dump before performing a hard reset. Crash
dump analysis is an essential part of eliminating reliability problems, such as hangs or crashes in OSs, device
drivers, and applications. Many crashes can freeze a system, requiring you to do a hard reset. Resetting the
system erases any information that would support root cause analysis.
Systems running Microsoft® Windows® experience a blue-screen trap when the OS crashes. When this
happens, Microsoft® recommends that system administrators perform an NMI event by temporarily shorting
the NMI header with a jumper. The NMI event enables a hung system to become responsive again.

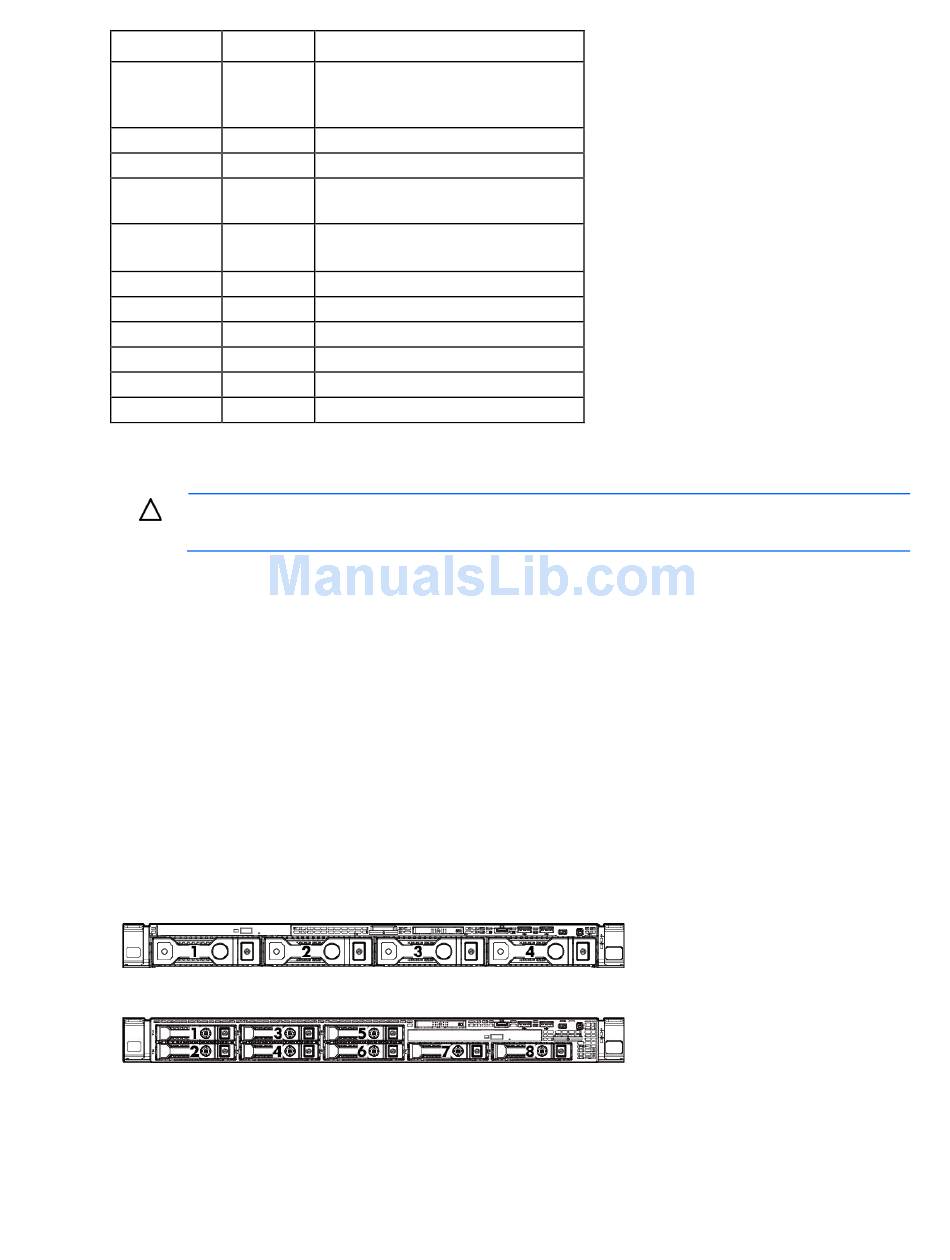

Device numbers

•
LFF configuration
•
SFF configuration
Default Function
Off Off = System configuration can be
changed
On = System configuration is locked
Off Reserved
Off Reserved
Off Off = Power-on password is enabled
On = Power-on password is disabled
Off Off = No function
On = Reset configuration
— Reserved
— Reserved
— Reserved
— Reserved
— Reserved
— Reserved
Clearing CMOS and/or NVRAM deletes configuration information. Be sure to
Component identification 13
