QuickSpecs
Overview

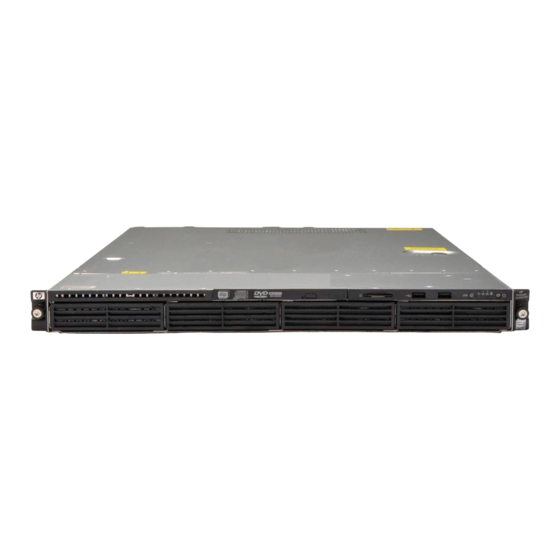

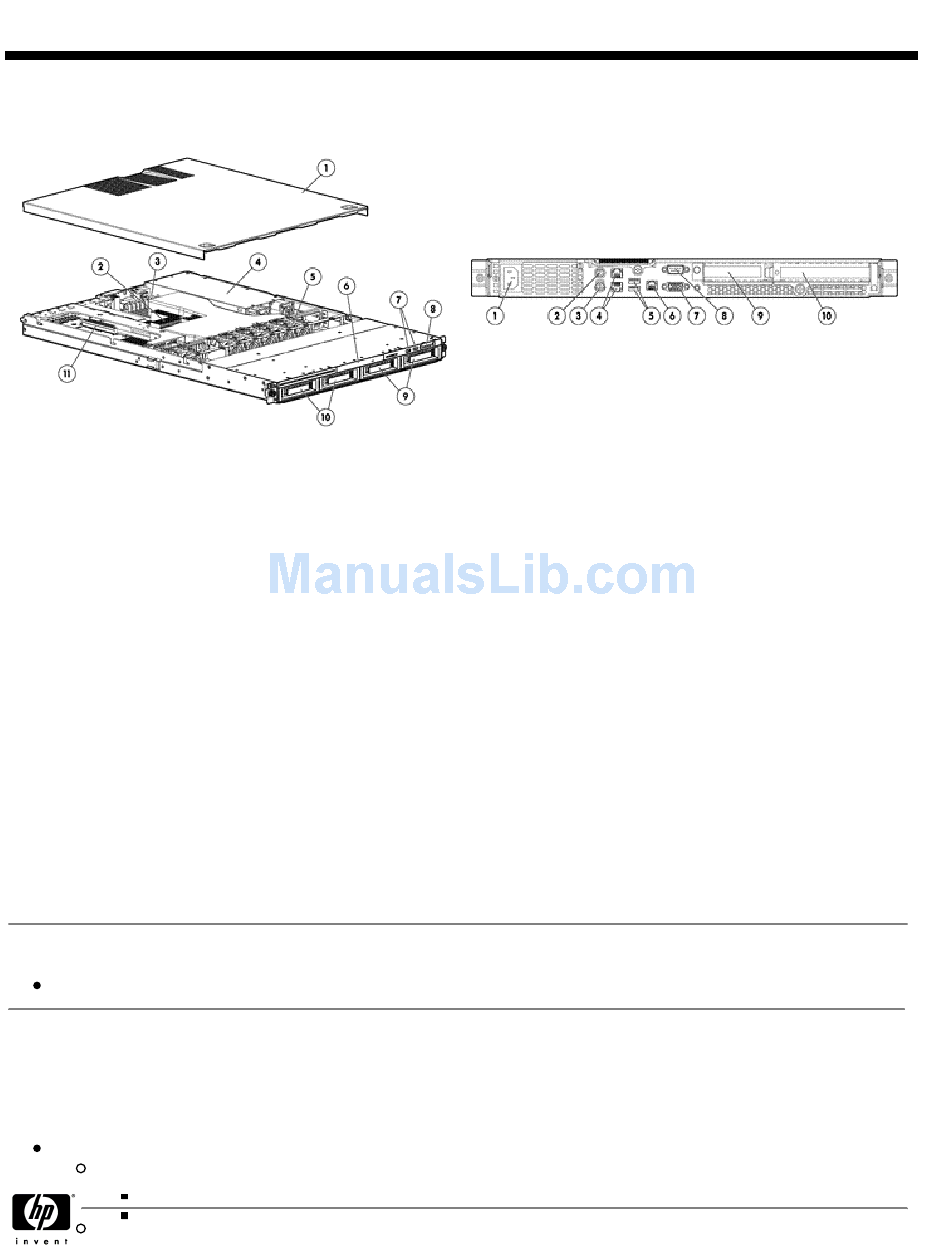

Front View:
1.
Access panel
2.
Quad-Core Intel® Xeon® 5400 series processors
(supports up to two)
3.
Eight PC2-5300 (DDR2-667) or PC2-6400 (DDR2-800)
fully buffered DIMM memory slots
4.
Power supply (650 Watts)
5.
System fans
6.
Optional CD-RW or DVD-ROM drive
7.
Two USB ports
8.
Power on/off & system LEDs
rd
th
9.
Optional 3
and 4
SAS/SATA hard drive bays
st
10.
Standard 1
and 2
plug SAS/SATA hard drive bays
11.
Expansion Slots:
Non-Hot Plug Models – Two available x16 PCI-Express
Gen2 slots
Hot Plug Models – One available x16 PCI-Express slot
Gen2 slot
What's New
Support for up 400GB 3G 10K 3.5" DP SAS Enterprise Hard Drive
At A Glance
The HP ProLiant DL160 G5 server is an affordable 1U, dual processor capable server equipped with essential performance
features that provide customers with a platform to design a fully optimized solution. It is ideal for general purpose and high
performance computing.
Processors:
Supports up to two Intel® Quad-Core 5400 or Dual-Core 5200 sequence processors
Hot Plug SAS/SATA and Non-Hot Plug SATA Models
3.5" Non-Hot plug SATA or hot plug
nd
3.5" Non-Hot plug SATA or hot
DA - 12902 Worldwide QuickSpecs — Version 19 — 1/26/2009
HP ProLiant DL160 Generation 5
Rear View:
1.
Power Supply Cable Socket
2.
PS/2 Mouse Port
3.
PS/2 Keyboard Port
4.
Two GbE LAN ports for NIC 1 and NIC 2 (RJ-45)
5.
Rear USB ports
6.
LO100i 10/100 Mbps LAN port for IPMI management
(RJ-45)
7.
Video Port
8.
Serial Port
9.
Low-Profile PCI Express x8/PCI-X riser board slot cover
10.
Standard height/full-height PCI Express x16/PCI-X riser
board
Page 1
