HP ProLiant DL160 G5 Quickspecs

Generation 5
Hide thumbs Also See for ProLiant DL160 G5:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual, Quickspecs
QuickSpecs
Overview

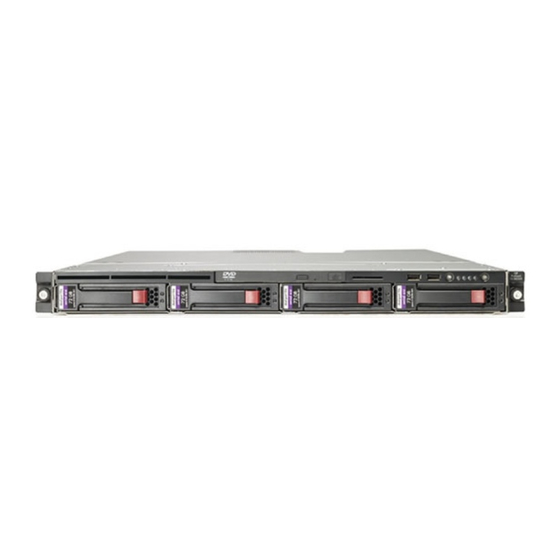

Front View:
Front View:
Front View:
Front View:
1.
Access panel
2.
Quad-Core Intel® Xeon® 5400 series processors
(supports up to two)
3.
Eight PC2-5300 (DDR2-667) or PC2-6400 (DDR2-800)
fully buffered DIMM memory slots
4.
Power supply (650 Watts)
5.
System fans
6.
Optional CD-RW or DVD-ROM drive
7.
Two USB ports
8.
Power on/off & system LEDs
rd
9.
Optional 3
and 4
SAS/SATA hard drive bays
st
nd
10.
Standard 1
and 2
SAS/SATA hard drive bays
11.
Expansion Slots:
Non-Hot Plug Models – Two available x16 PCI-Express
Gen2 slots
Hot Plug Models – One available x16 PCI-Express slot
Gen2 slot
What's New
What's New
What's New
What's New
Support for SATA Hot Plug 3.5" Midline (MDL) Solid State Drives
Support for SAS Hot Plug 3.5" Enterprise (ENT) Hard Drives
At A Glance
At A Glance
At A Glance
At A Glance
The HP ProLiant DL160 G5 server is an affordable 1U, dual processor capable server equipped with essential performance features
that provide customers with a platform to design a fully optimized solution. It is ideal for general purpose and high performance
computing.
Hot Plug SAS/SATA and Non-Hot Plug SATA Models
Hot Plug SAS/SATA and Non-Hot Plug SATA Models
Hot Plug SAS/SATA and Non-Hot Plug SATA Models
Hot Plug SAS/SATA and Non-Hot Plug SATA Models
th
3.5" Non-Hot plug SATA or hot plug
3.5" Non-Hot plug SATA or hot plug
DA - 12902
North America — Version 25 — September 17, 2009
HP ProLiant DL160 Generation 5 (G5)
HP ProLiant DL160 Generation 5 (G5)
HP ProLiant DL160 Generation 5 (G5)
HP ProLiant DL160 Generation 5 (G5)
Rear View:
Rear View:
Rear View:
Rear View:
1.
Power Supply Cable Socket
2.
PS/2 Mouse Port
3.
PS/2 Keyboard Port
4.
Two GbE LAN ports for NIC 1 and NIC 2 (RJ-45)
5.
Rear USB ports
6.
LO100i 10/100 Mbps LAN port for IPMI management (RJ-
45)
7.
Video Port
8.
Serial Port
9.
Low-Profile PCI Express x8/PCI-X riser board slot cover
10.
Standard height/full-height PCI Express x16/PCI-X riser
board
Page 1
