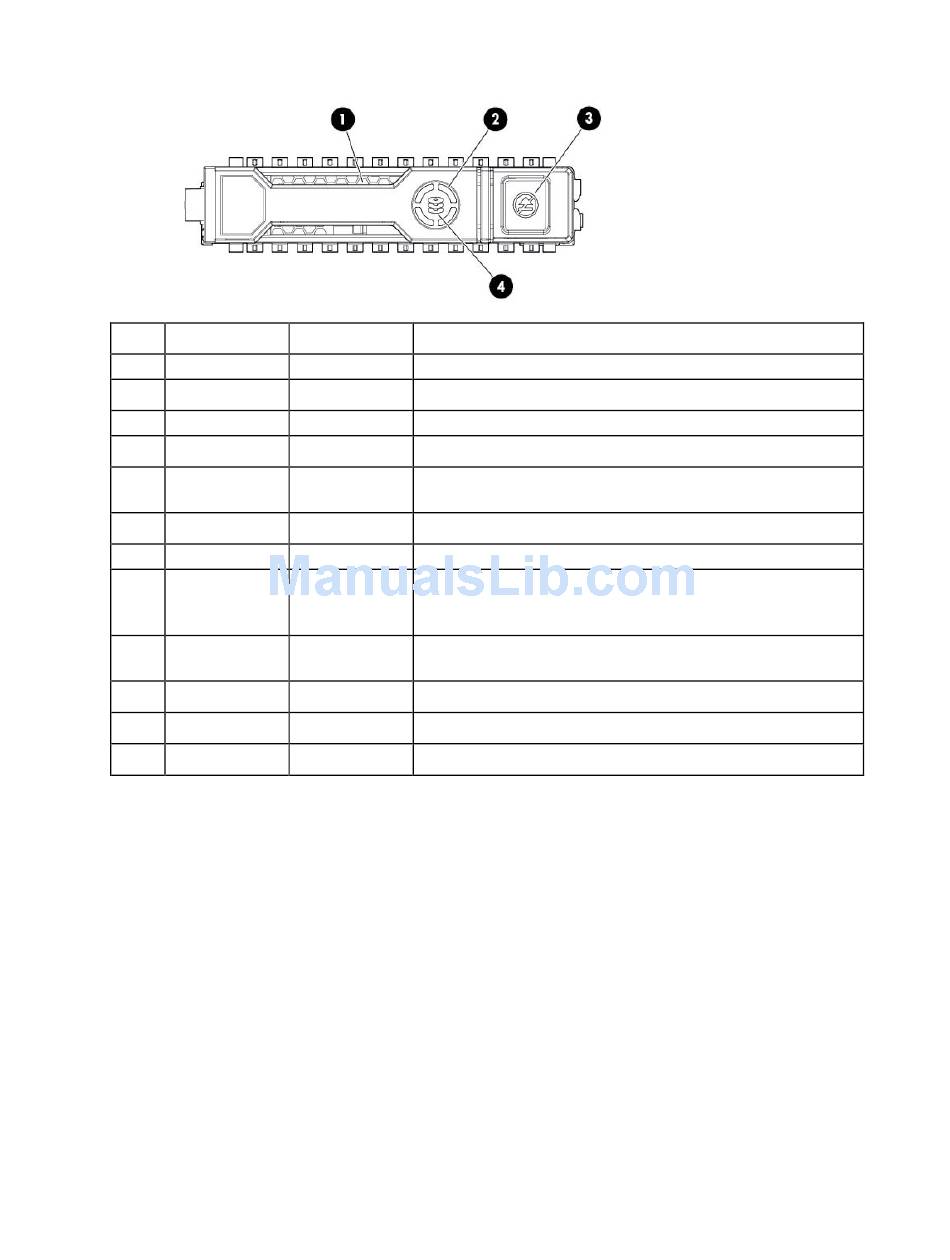

Drive LED definitions

Item LED
Locate
1
Activity ring
2
Do not remove
3
Drive status
4

Fan modules

•
One-processor configuration
Status Definition
Solid blue The drive is being identified by a host application.
Flashing blue The drive carrier firmware is being updated or requires an update.
Rotating green Drive activity
Off No drive activity
Solid white Do not remove the drive. Removing the drive causes one or more of
the logical drives to fail.
Off Removing the drive does not cause a logical drive to fail.
Solid green The drive is a member of one or more logical drives.
Flashing green The drive is rebuilding or performing a RAID migration, stripe size
migration, capacity expansion, or logical drive extension, or is
erasing.
Flashing The drive is a member of one or more logical drives and predicts
amber/green the drive will fail.
Flashing amber The drive is not configured and predicts the drive will fail.
Solid amber The drive has failed.
Off The drive is not configured by a RAID controller.
