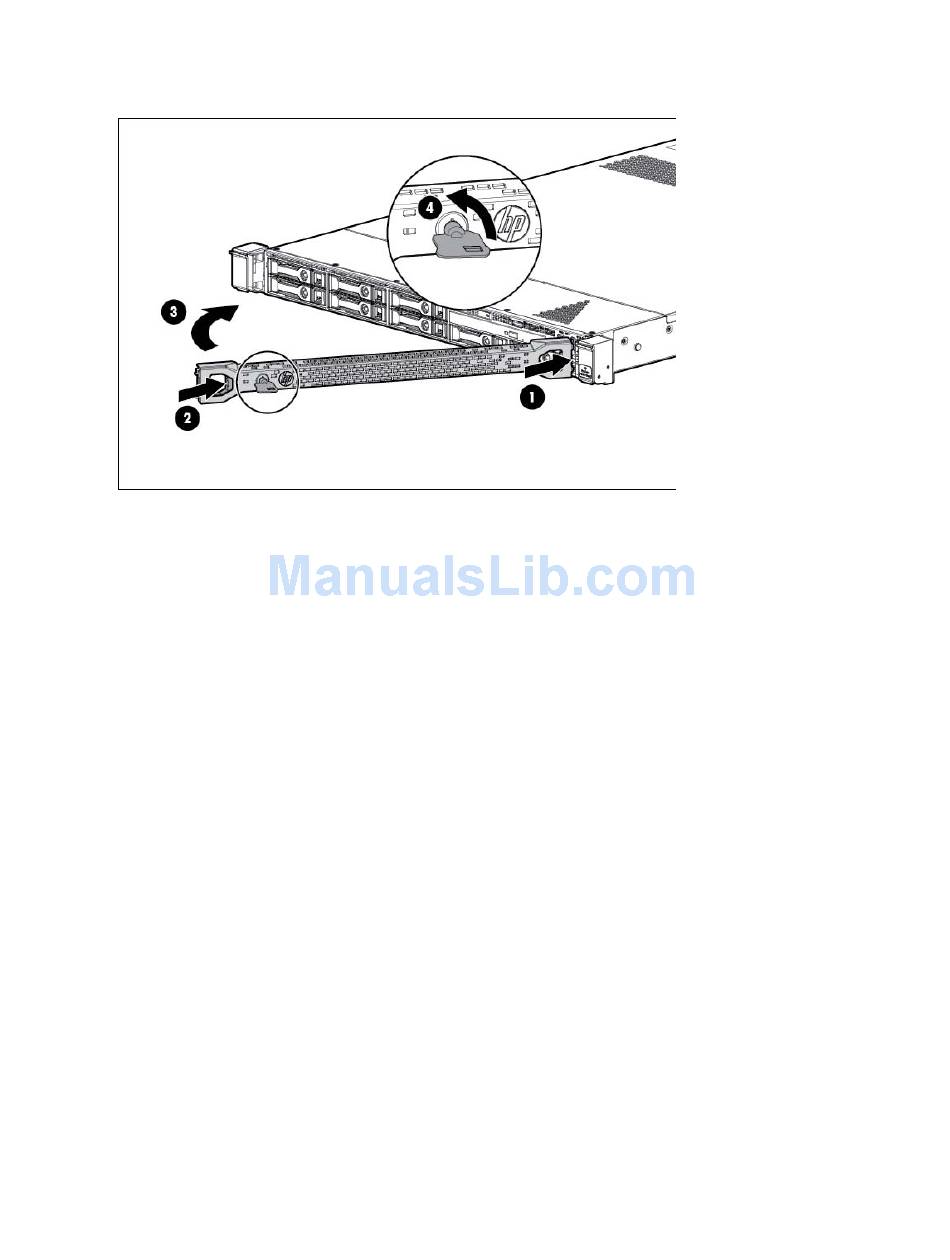

Install the rack bezel

Install the rack bezel into the chassis, and then lock the rack bezel with the key.

VGA power cable option

If installed, remove the rack bezel.
1.
Power down the server (on page 17).
2.
Remove all power:
3.
Disconnect each power cord from the power source.
a.
Disconnect each power cord from the server.
b.
Extend the server from the rack (on page 17).
4.
Remove the access panel (on page 19).
5.
Remove the processor air baffle (on page 19).
6.
("Remove the rack bezel" on page 59)
Hardware options installation 60
