Component identification

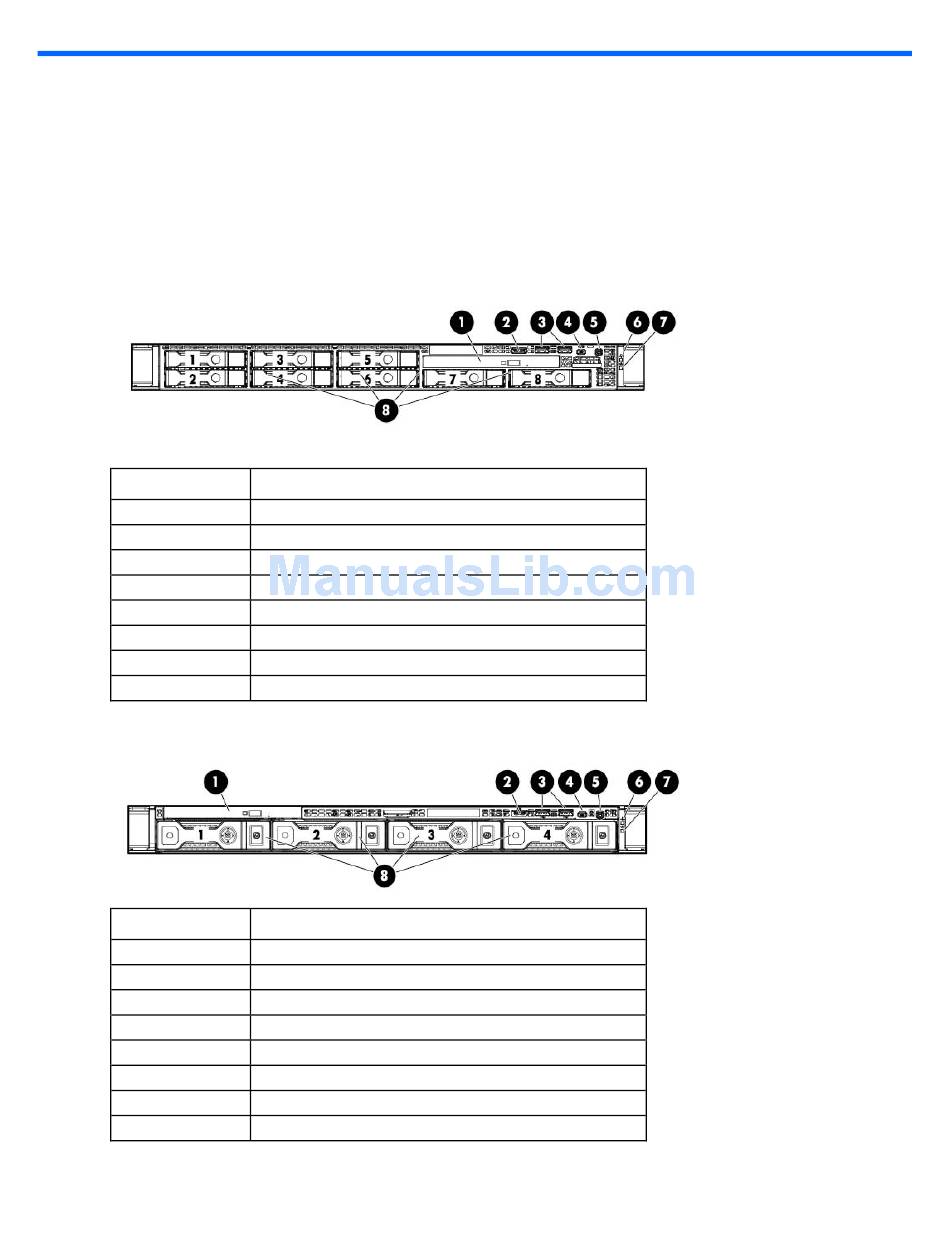

Front panel components
•
SFF
Item
1
2
3
4
5
6
7
8
•
LFF
Item
1
2
3
4
5
6
7
8
Description
Optical drive
Front video connector (Front video port adapter required)
USB connectors (2)
UID LED button
Power on/Standby button and system power LED
Health LED
NIC status LED
SAS/SATA drives (8)
Description
Optical drives
Front video connector (Front video port adapter required)
USB connectors (2)
UID LED button
Power on/Standby button and system power LED
Health LED
NIC status LED
SAS/SATA drives (4)
