Connectors
3.13

User USB type B connector CN15

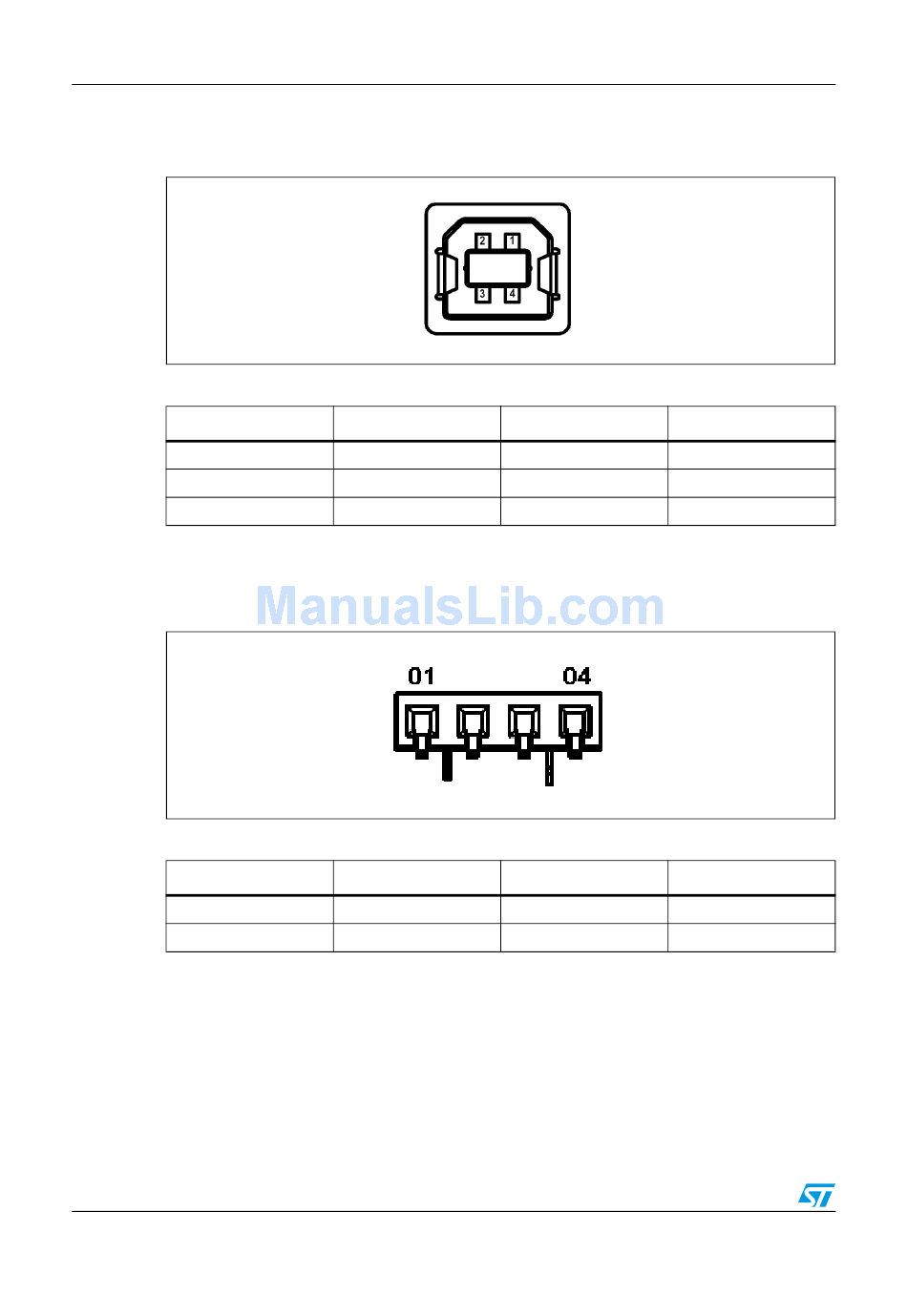

Figure 18. USB type B connector CN15 (viewed from front)
Table 30.
Pin
3.14

RF EEPROM daughterboard connector CN12

Figure 19. RF EEPROM daughterboard connector CN12 (viewed from front)
Table 31.
Pin
34/56
www.BDTIC.com/ST
USB type B connector CN15
Description
1 VBUS (power)
2 DM
3 DP
USB type B connector CN15
Description
1 SDA(PB9)
2 SCL(PB8)
Doc ID 022868 Rev 1
Pin Description
4 GND
5,6 Shield
Pin Description
3 VDD
4 GND
UM1521
