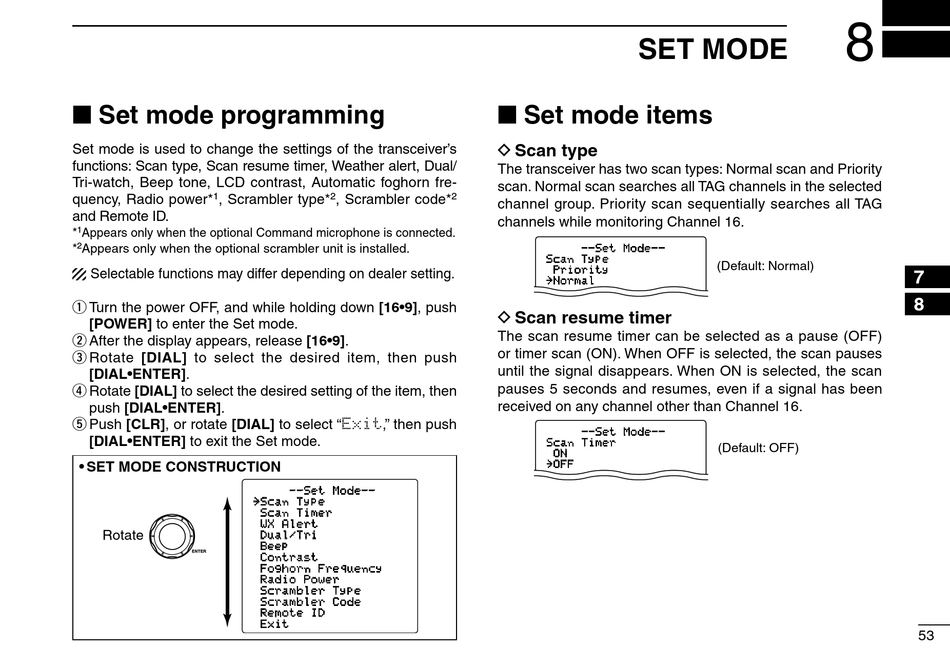

■ Set mode programming

Set mode is used to change the settings of the transceiver's
functions: Scan type, Scan resume timer, Weather alert, Dual/
Tri-watch, Beep tone, LCD contrast, Automatic foghorn fre-
1
quency, Radio power* , Scrambler type*
and Remote ID.
1
* Appears only when the optional Command microphone is connected.
2
* Appears only when the optional scrambler unit is installed.
Selectable functions may differ depending on dealer setting.
q Turn the power OFF, and while holding down [16•9], push
[POWER] to enter the Set mode.
w After the display appears, release [16•9].
e Rotate [DIAL] to select the desired item, then push
[DIAL•ENTER].
r Rotate [DIAL] to select the desired setting of the item, then
push [DIAL•ENTER].
t Push [CLR], or rotate [DIAL] to select "Exit," then push
[DIAL•ENTER] to exit the Set mode.
• SET MODE CONSTRUCTION
Rotate
2
, Scrambler code*

--Set Mode--

˘Scan Type
Scan Timer
WX Alert
Dual/Tri
Beep
Contrast
Foghorn Frequency
Radio Power
Scrambler Type
Scrambler Code
Remote ID
Exit

■ Set mode items

D Scan type
The transceiver has two scan types: Normal scan and Priority
scan. Normal scan searches all TAG channels in the selected
2
channel group. Priority scan sequentially searches all TAG
channels while monitoring Channel 16.
--Set Mode--
Scan Type
Priority
˘Normal
D Scan resume timer
The scan resume timer can be selected as a pause (OFF)
or timer scan (ON). When OFF is selected, the scan pauses
until the signal disappears. When ON is selected, the scan
pauses 5 seconds and resumes, even if a signal has been
received on any channel other than Channel 16.
--Set Mode--
Scan Timer
ON
˘OFF
SET MODE
(Default: Normal)
(Default: OFF)
