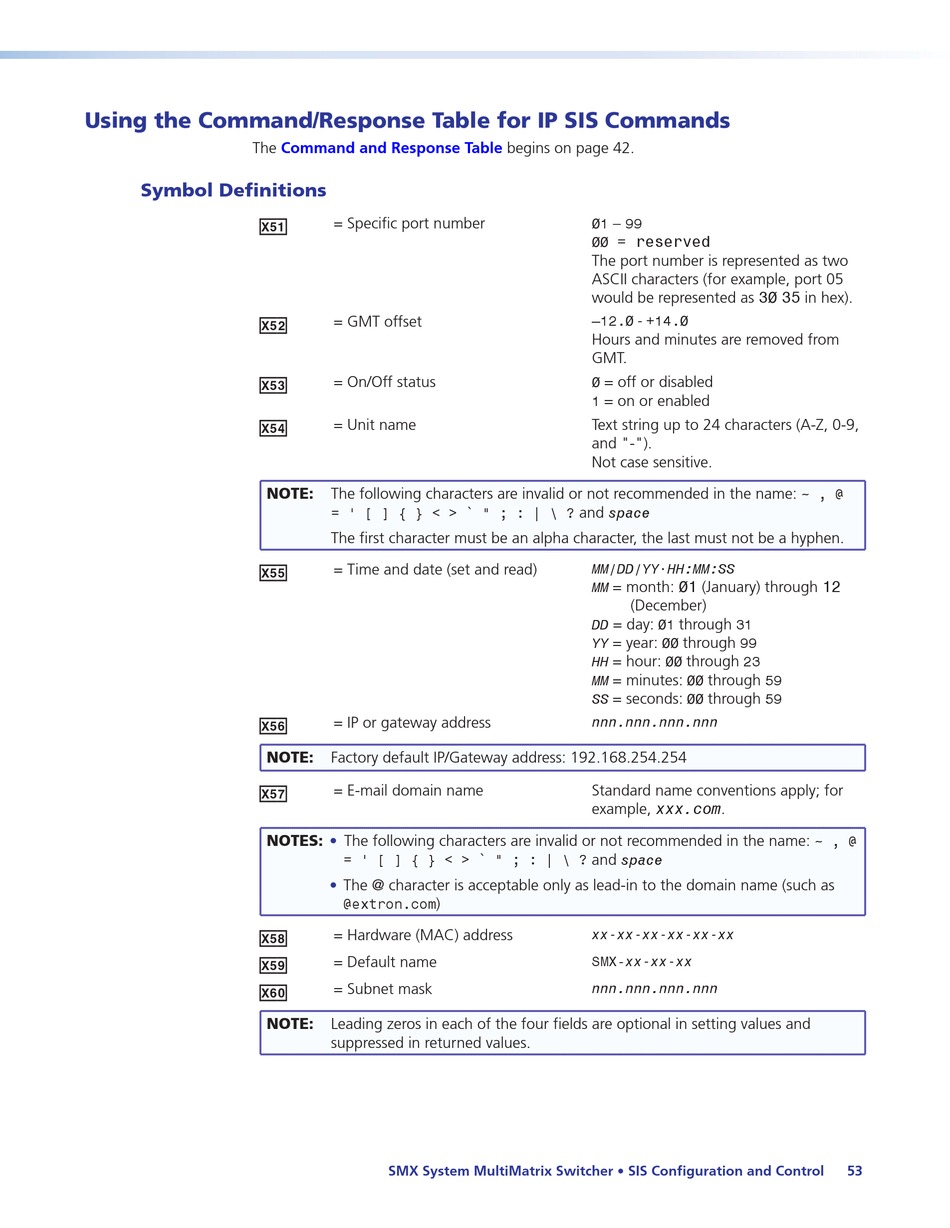

Using the Command/Response Table for IP SIS Commands

The

Symbol Definitions

X5!
X5@
X5#
X5$
X5%
X5^
X5&
X5*
X5(
X6)
Command and Response Table
= Specific port number
= GMT offset
= On/Off status
= Unit name
NOTE:
The following characters are invalid or not recommended in the name:
= ' [ ] { } < > ` " ; : | \ ?
The first character must be an alpha character, the last must not be a hyphen.
= Time and date (set and read)
= IP or gateway address
NOTE:
Factory default IP/Gateway address: 192.168.254.254
= E-mail domain name
NOTES:
• The following characters are invalid or not recommended in the name:
= ' [ ] { } < > ` " ; : | \ ?
• The @ character is acceptable only as lead-in to the domain name (such as
@extron.com )
= Hardware (MAC) address
= Default name
= Subnet mask
NOTE: Leading zeros in each of the four fields are optional in setting values and
suppressed in returned values.
SMX System MultiMatrix Switcher • SIS Configuration and Control
begins on page 42.
–
01 99
= reserved
00
The port number is represented as two
ASCII characters (for example, port 05
would be represented as 30 35 in hex).
–12.0 - +14.0
Hours and minutes are removed from
GMT.
= off or disabled
0
1 = on or enabled
Text string up to 24 characters (A-Z, 0-9,
and "-").
Not case sensitive.
and
space
MM/DD/YY•HH:MM:SS
= month: 01 (January) through 12
MM
(December)
= day: through
DD 01
YY = year: 00 through
= hour:
HH 00
= minutes:
MM
SS = seconds:
nnn.nnn.nnn.nnn
Standard name conventions apply; for
example, xxx.com.
and space
xx-xx-xx-xx-xx-xx
SMX-xx-xx-xx
nnn.nnn.nnn.nnn
~ , @
31
99
through
23
through
00 59
00 through 59
~ , @
53
