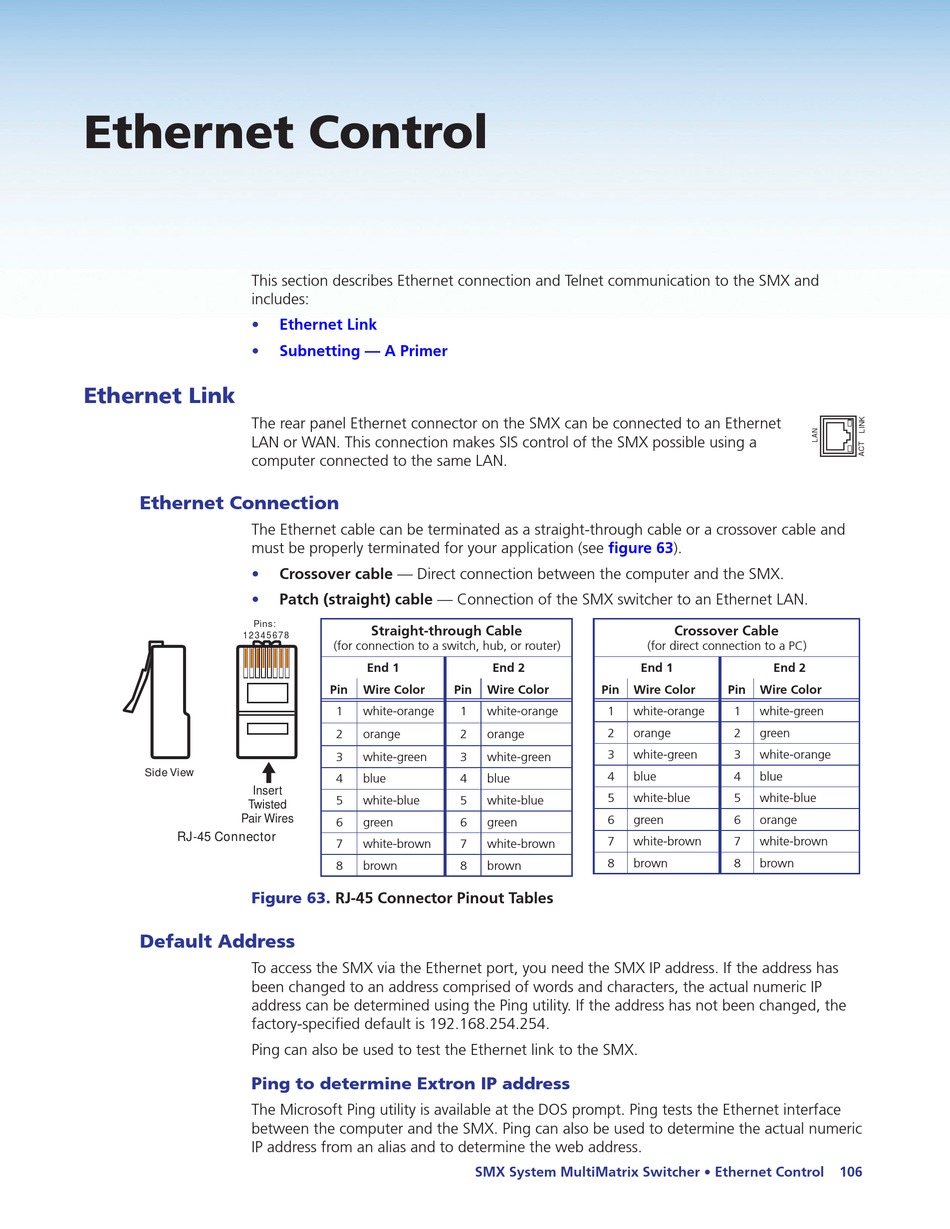

Ethernet Control
This section describes Ethernet connection and Telnet communication to the SMX and
includes:
•
•
Ethernet Link
The rear panel Ethernet connector on the SMX can be connected to an Ethernet
LAN or WAN. This connection makes SIS control of the SMX possible using a
computer connected to the same LAN.
Ethernet Connection
The Ethernet cable can be terminated as a straight-through cable or a crossover cable and
must be properly terminated for your application (see
•
•
Pins:
1 2 3 4 5 6 7 8
Side View
Insert
Twisted
Pair Wires
RJ-45 Connector
Figure 63.
Default Address
To access the SMX via the Ethernet port, you need the SMX IP address. If the address has
been changed to an address comprised of words and characters, the actual numeric IP
address can be determined using the Ping utility. If the address has not been changed, the
factory-specified default is 192.168.254.254.
Ping can also be used to test the Ethernet link to the SMX.
Ping to determine Extron IP address
The Microsoft Ping utility is available at the DOS prompt. Ping tests the Ethernet interface
between the computer and the SMX. Ping can also be used to determine the actual numeric
IP address from an alias and to determine the web address.
Ethernet Link
Subnetting — A Primer
Crossover cable — Direct connection between the computer and the SMX.
Patch (straight) cable — Connection of the SMX switcher to an Ethernet LAN.
Straight-through Cable
Straight-through Cable
(for connection to a switch, hub, or router)
(for connection to a switch, hub, or router)
End 1
End 1
Pin
Wire Color
Pin
Wire Color
Pin
1
white-orange
2
orange
1
white-orange
3
white-green
2
orange
4
blue
5
white-blue
3
white-green
6
green
4
blue
7
white-brown
8
brown
5
white-blue
6
green
Crossover Cable
7
white-brown
(for direct connection to a PC)
8
brown
End 1
Pin
Wire Color
RJ-45 Connector Pinout Tables
1
white-orange
2
orange
3
white-green
4
blue
5
white-blue
6
green
7
white-brown
8
brown
figure
End 2
End 2
Pin
Wire Color
Wire Color
Pin
Wire Color
1
white-orange
2
orange
1
white-orange
1
white-orange
3
white-green
2
orange
2
orange
4
blue
5
white-blue
3
white-green
3
white-green
6
green
4
blue
4
blue
7
white-brown
8
brown
5
white-blue
5
white-blue
6
green
6
green
7
white-brown
7
white-brown
8
brown
8
brown
End 2
Pin
Wire Color
1
white-green
2
green
3
white-orange
4
blue
5
white-blue
6
orange
7
white-brown
8
brown
SMX System MultiMatrix Switcher • Ethernet Control
63).
Crossover Cable
(for direct connection to a PC)
End 1
End 2
Pin
Wire Color
1
white-green
2
green
3
white-orange
4
blue
5
white-blue
6
orange
7
white-brown
8
brown
