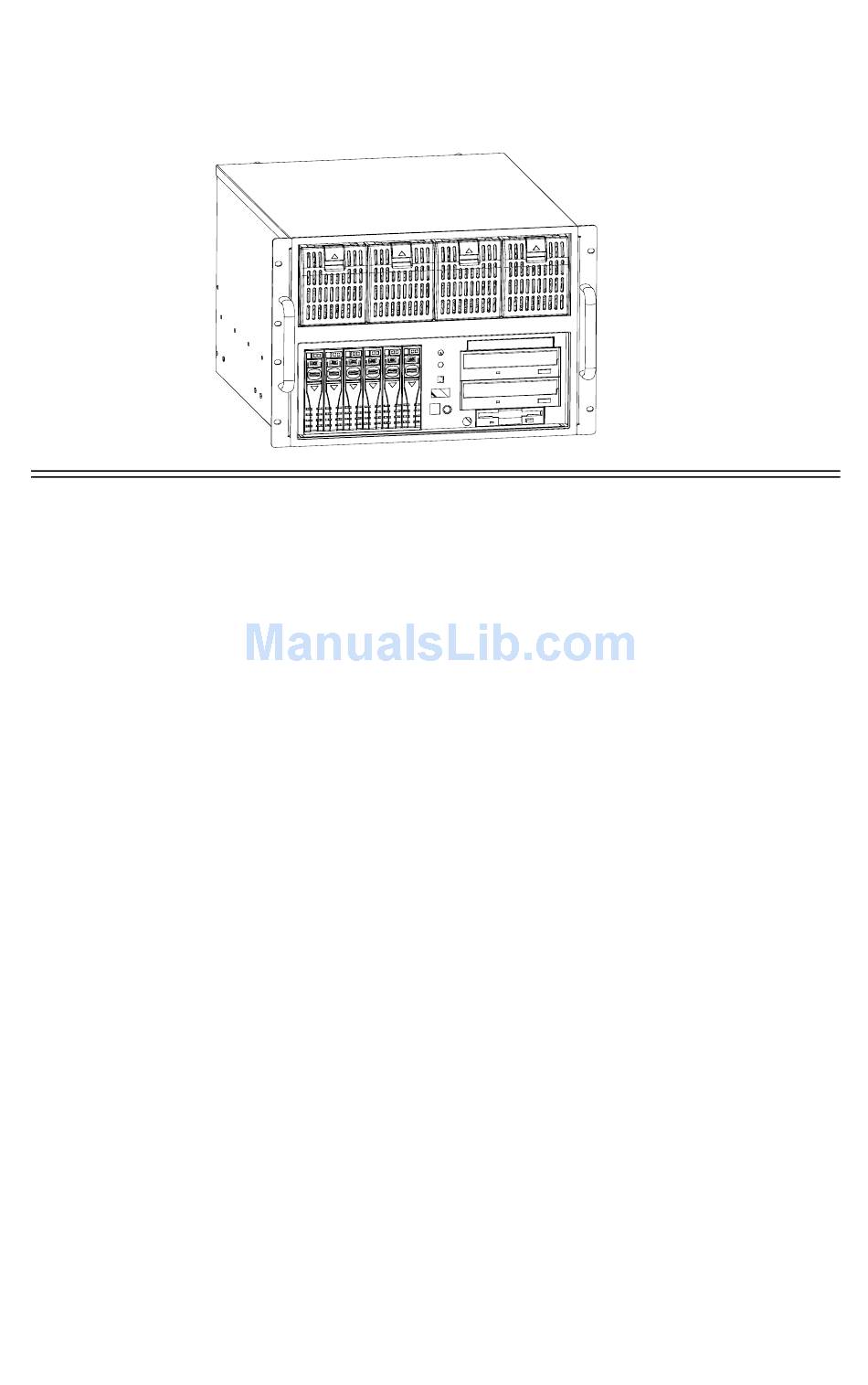

Figure 2.6: Driver Bay - Advantech ACP-7000 User Manual

The SCSI storage holds six 3.5" mobile drawer which is for 1" height
SCSI SCA-2 80-pin 3.5" HDD, and with 6-slot SCA backplane. User
could install 1" height SCSI SCA-2 80-pin 3.5" HDD into this SCSI stor-
age and use RAID card or RAID controller as RAID system for ACP-
7000
There is several type of SCSI 3.5" HDD, when in doubt, consult with an
experienced technician before
SCSI SCA-2 80-pin HDD installation.
a. Open the front door by turning the key lock.
b. Find the latch of 3.5" HDD mobile drawer and push it to the up
location. See the Figure 2.7.
c. Press down the handle of 3.5" HDD mobile drawer down until the
end, then hold the handle and draw it out. Refer the Figure 2.8.
d. Install 1" height SCSI SCA-2 80-pin 3.5" HDD by four screws.
Refer the Figure 2.9
e. Returning and push the mobile drawer within HDD toward to the
SCSI storage until the handle of mobile drawer is moving up.
See Figure 2.10
f. Push the handle of mobile drawer until the end, and then press the
latch to the down location.
ACP-7000 User's Manual

Figure 2.6: Driver Bay

14
