2.1.4 Drive Bay Installation

The Standard Drive Bay of the ACP-7000 can hold a slim type CD-ROM,
5.25"(x2) and 3.5" (x1) devices Installation disk drives
a.
Remove the top cover
b.
Release two thumbscrews to draw out the backplane holder until
you have enough space to take out driver bay. See Figure 2.5
c.
Undo the four screws of cushion.
d.
Lift off the Standard Drive Bay. See Figure 2.6
e.
Insert the drives into their proper locations in the drive bay and
secure them with the screws provided.
f.
Connect the disk drive power and signal cables.
ACP-4001 User's Manual

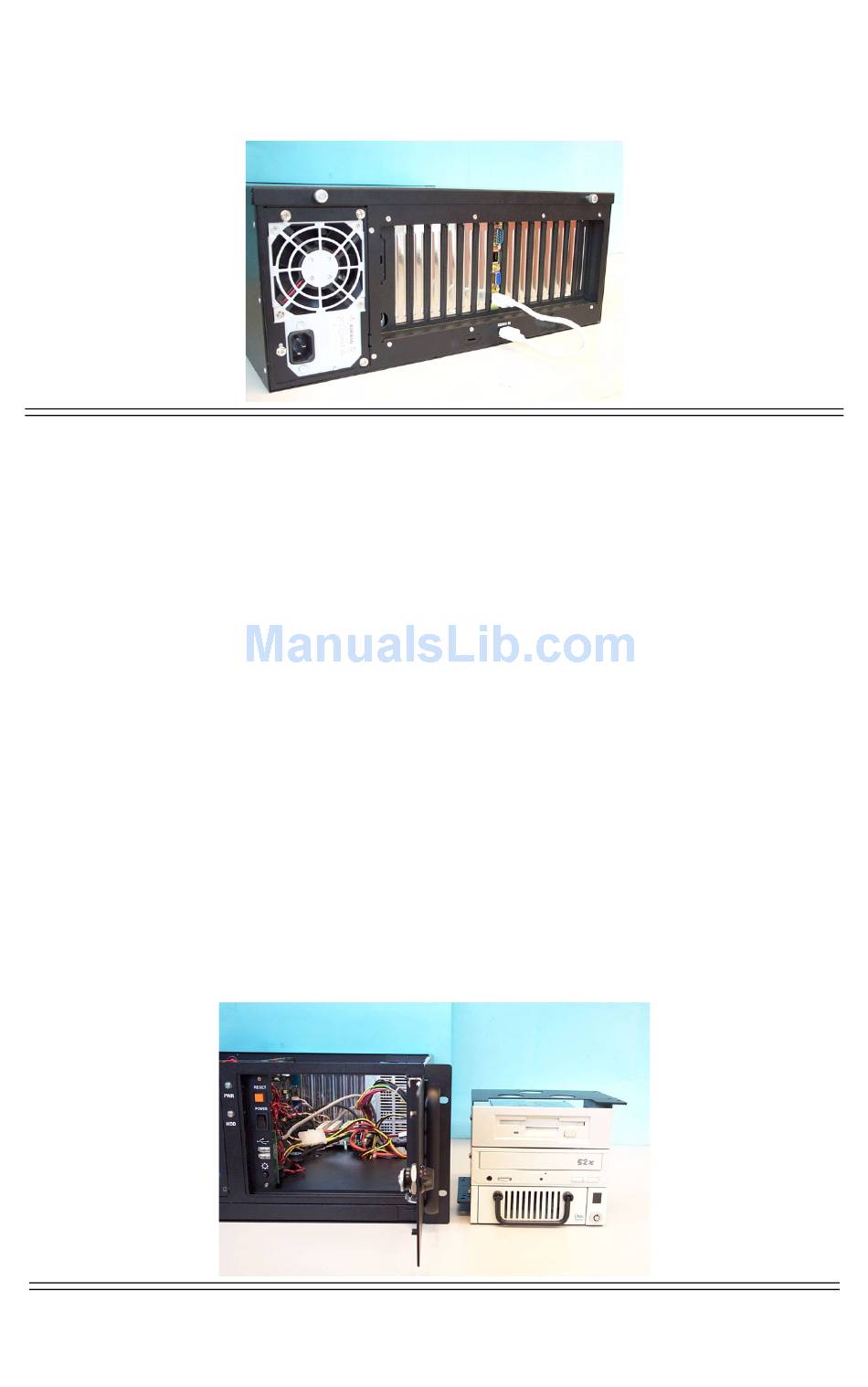

Figure 2.4: Rear View
Figure 2.5: Driver Bay
12
