Figure 2.11:5Vsb/Ps_On Cable; Figure 2.12:Acp-7000Bp-46R - Advantech ACP-7000 User Manual

5Vsb/PS_ON cable connect
to SBC

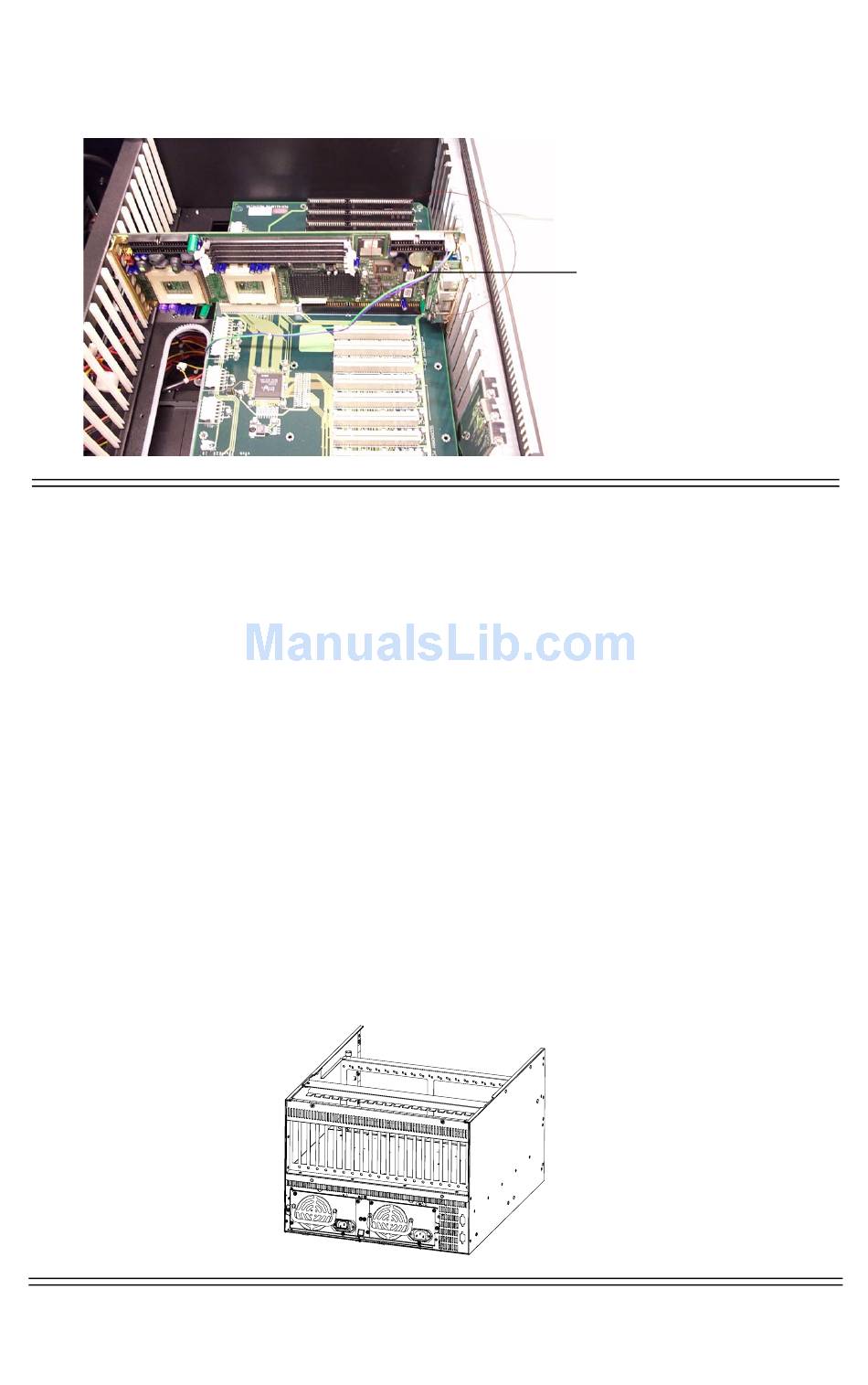

Figure 2.11: 5Vsb/PS_ON cable
2.1.6 ACP-7000BP-00R, ACP-7000BP-00N
ACP-7000BP-00R has a momentary switch on the front panel. It is
20-slot backplane version but without backplane and power supply
inside; it is with the mechanical design for 1+1 redundant power supply.
ACP-7000BP-46R, see Figure 2.12, is without backplane; but with 460W
1+1 redundant power supply inside. ACP-7000BP-00N, all are same with
ACP-7000BP-00R but with the mechanical design for N+1 redundant
power. ACP-7000BP-57N, see Figure 2.13, is without backplane; but
with 570W 2+1 redundant power. ACP-7000BP-81N, see Figure 2.13, is
without backplane, but with 810W 3+1 redundant power.
Figure 2.12: ACP-7000BP-46R
17 Chapter 2 System Setup
